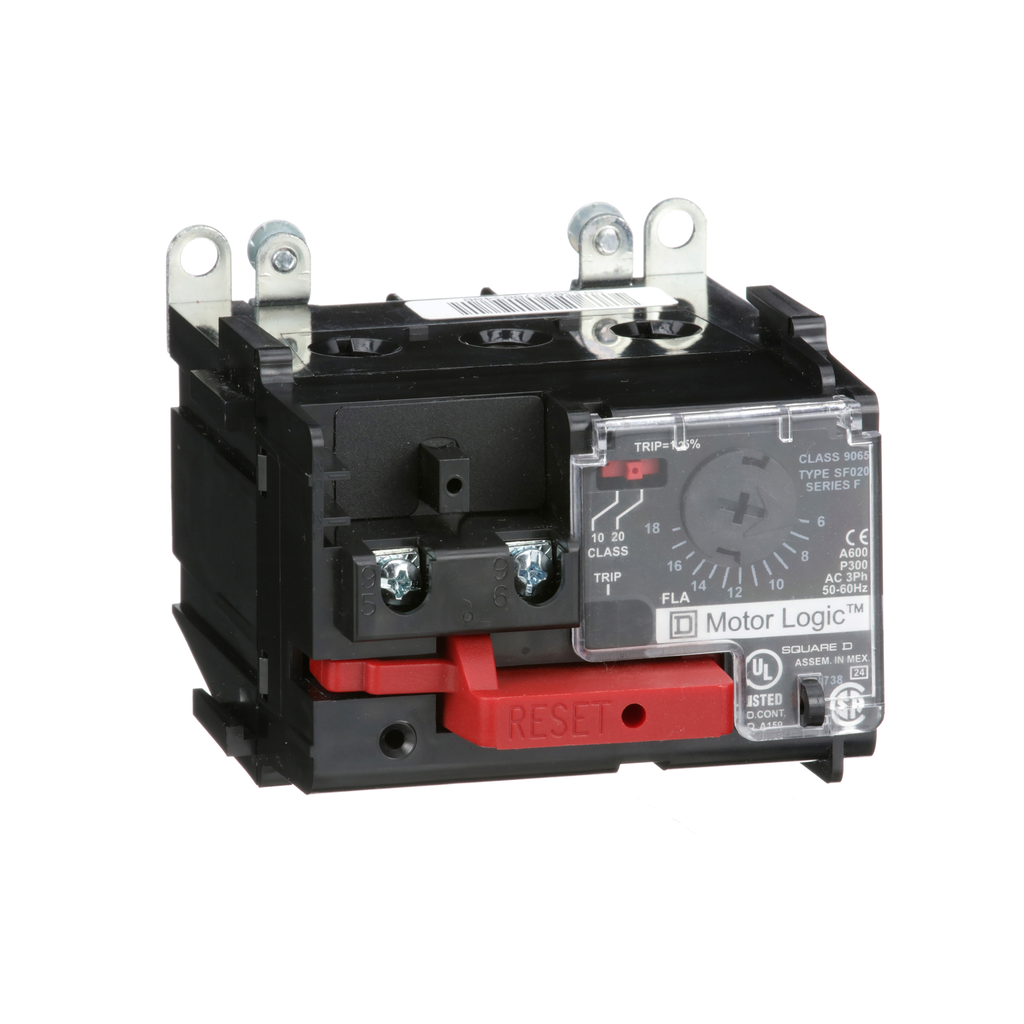

Square D 9065SF020 600 VAC 6 to 18 Amp 3-Phase Size 0 NEMA Solid State Thermal Overload Relay

Product Description

Square D 9065SF020 is a solid-state overload relay for motors rated from six to eighteen amps. This device operates effectively at a maximum voltage of 600 volts. It is suitable for use with NEMA size zero three-pole starters. This overload relay is specifically designed to protect three-phase AC motors from overloads, phase unbalance, and phase loss conditions.

• Features an adjustable trip setting for customized protection.
• Class 10 trip unit provides fast response for overloads.
• Includes a visible trip indicator for easy troubleshooting.

Product Highlights

This relay is self-powered and ambient insensitive. It can work as a standalone device or be integrated into Type S starters. The trip-free operation prevents motors from overheating, and it accommodates electrical remote resets.

Product Information

Standard Information

• Catalog Number: 9065SF020
• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Voltage: 600 Volt
• Weight: 1.21 lbs
• Height: 2.69 inches
• Width: 3.26 inches
• Depth: 3.90 inches
• NEMA Size: 0
• Trip Type: Solid State
• Number of Phases: 3 Phase
