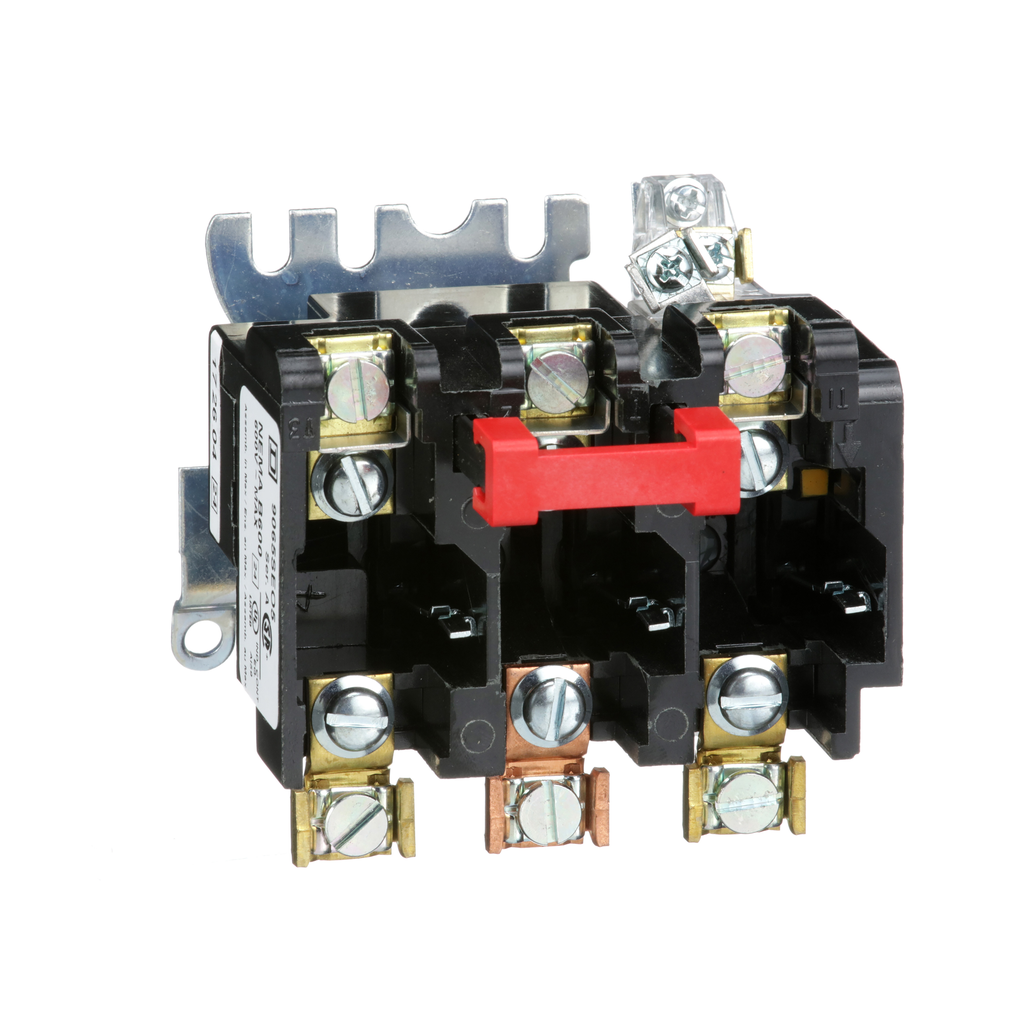

Square D 9065SEO5 600 VAC 3-Pole Size 1 NEMA Melting Alloy Thermal Overload Relay

Product Description

Square D 9065SEO5 is a 600 VAC 3-pole size 1 NEMA melting alloy thermal overload relay. This relay is designed to protect motors and circuit conductors against excessive heat from prolonged overcurrents. The relay uses a melting alloy thermal unit to shield the winding insulation from overheating. The selection of the thermal unit depends on the motor's full load current and other specifications. The relay operates with NEMA size 00, 0, or 1 starters in three-phase systems, allowing for easy installation and maintenance.

• Maximum voltage rating of 600 VAC
• Three-pole design suitable for three-phase applications
• UL Listed and CSA Certified for safety

Product Highlights

This thermal overload relay features a replaceable output contact and a trip-free reset mechanism. The overload relay also prevents motor restarts until it has adequately cooled down, ensuring safe operation.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: 9065SEO5
• Voltage: 600 Volt
• NEMA Size: 1
• Rated Operation Current: 25A
• Depth: 3.97 inches
• Width: 3.53 inches
• Height: 3.31 inches
• Trip Type: Melting Alloy
• Country of Origin: Mexico
• Warranty Length: 18 months
