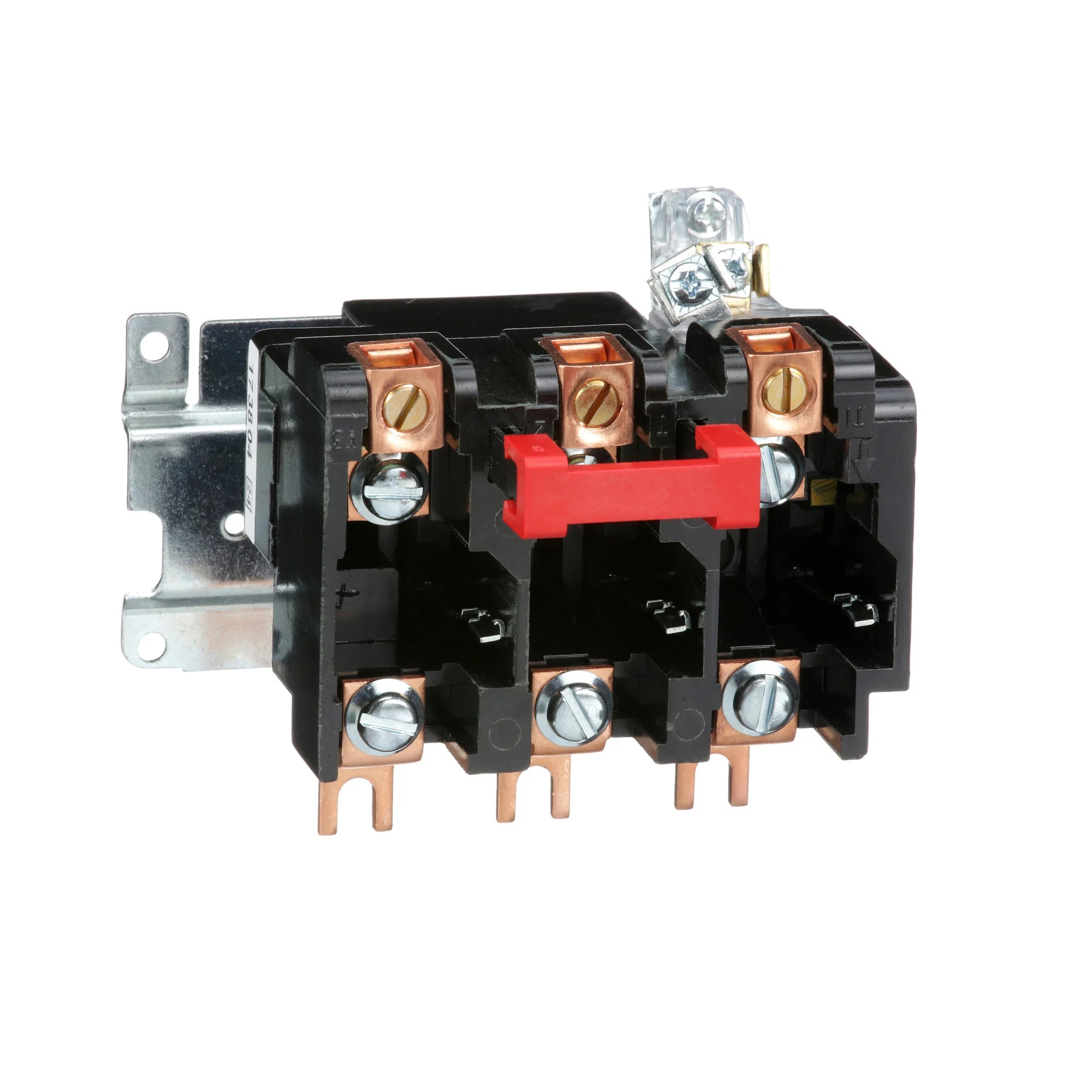

Square D 9065SDO8 Overload Relay, Type S, melting alloy, replacement overload, NEMA size 2, 3 pole, 3 phase, 45A, 600VAC

Product Description

Square D offers the 9065SDO8 overload relay designed for effective motor overcurrent protection. This model features a special melting alloy thermal unit capable of safeguarding against overheating due to excessive current. It is suitable for use with motors based on their full load current, phases, and enclosure size. The relay provides flexibility as it can be reset after installing three thermal units.

It has a trip free reset mechanism ensuring reliable operation and includes a replaceable output contact. This overload relay is rated for a maximum voltage of six hundred volts AC. Its dimensions are four point zero six inches tall, four point two eight inches wide, and four point zero inches deep.

• Melting alloy thermal unit for overcurrent protection
• Trip free reset mechanism for reliable reset options
• Rated for a maximum voltage of 600 VAC

Product Highlights

This overload relay supports reliable circuit control in industrial applications, featuring a compact design and thermal management capability.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Brand: Square D

Technical Specifications

• Catalog Number: 9065SDO8
• Voltage Rating: 600 VAC
• Pole Configuration: 3 Pole
• Phase: 3 Phase
• Current Rating: 45 Amperes
• Height: 4.06 inches
• Width: 4.28 inches
• Depth: 4.00 inches
