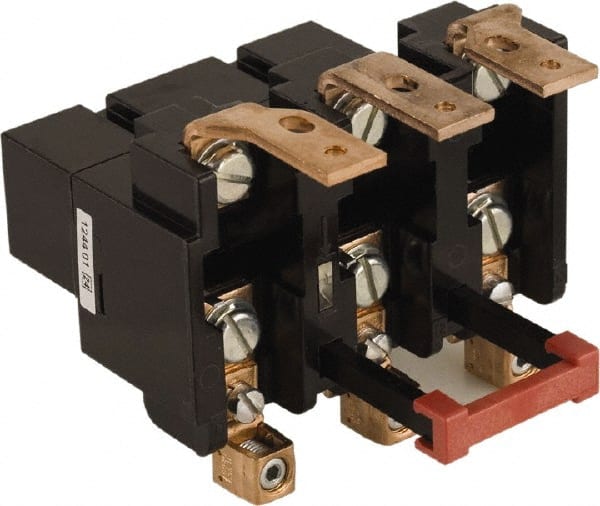

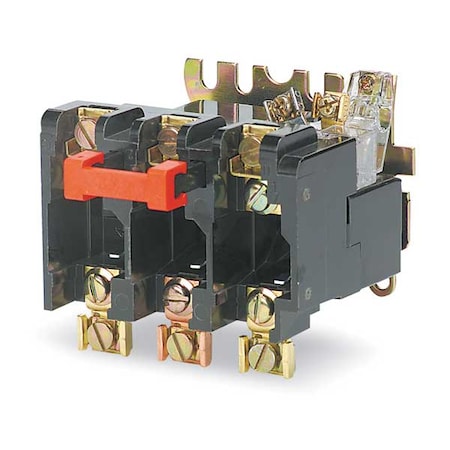

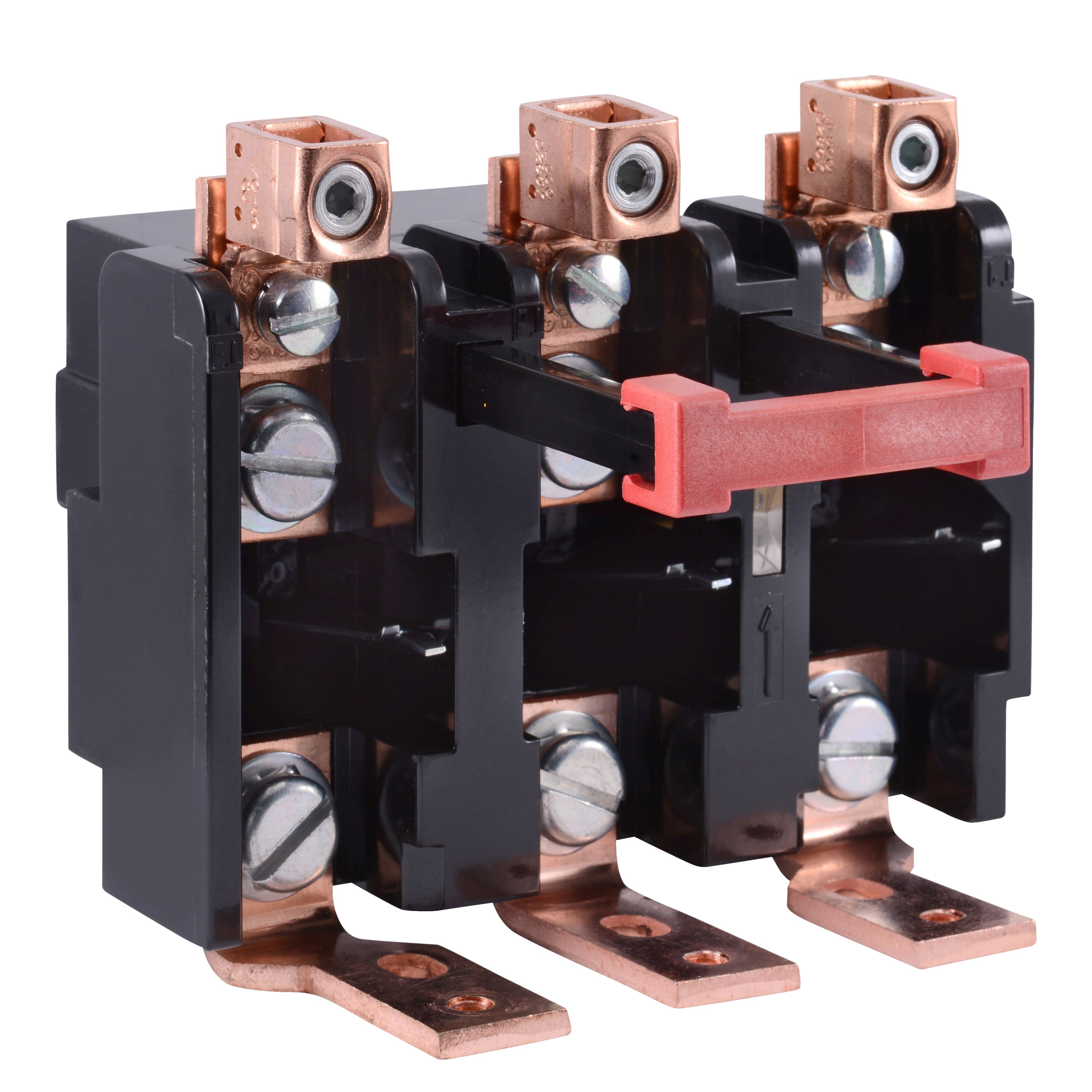

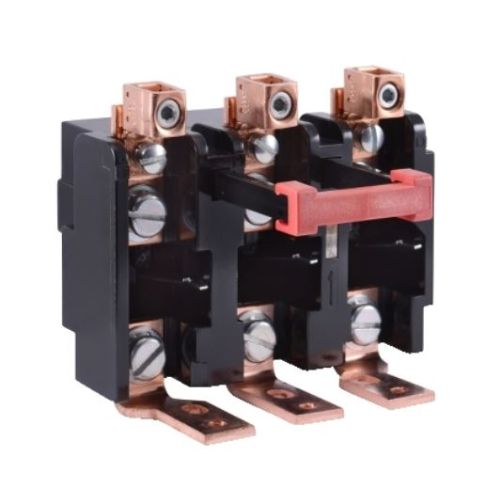

Square D 9065SDO12 600 VAC 90 Amp 3-Pole Size 3 NEMA Melting Alloy Thermal Overload Relay

Product Description

The Square D 9065SDO12 overload relay protects motors, controllers, and branch-circuit conductors against excessive heating due to prolonged motor over currents. It features an exclusive one piece melting alloy thermal unit. This is a replacement overload relay for a Type S NEMA size 3 three phase starters with 3 poles and a maximum voltage rating of 600 VAC.

• Protects motors, controllers, and branch-circuit conductors
• Protects against excessive heating due to prolonged motor over currents
• Exclusive one piece melting alloy thermal unit

Product Highlights

Protects against overheating, features a trip free reset mechanism and a replaceable output contact.

Product Information

Standard Information

• Brand: SQUARE D
• Manufacturer Part Number: 9065SDO12
• Country of Origin: United States

Technical Specifications

• Type: OVERLOAD RELAY
• Brand: Square D
• Voltage: 600 V AC
• NEMA Size: 3
• Sub Brand: SCHNEIDER ELECTRIC
• Trip Type: MELTING ALLOY
• Reset Type: MANUAL
• Applications: Starter
• Number of Poles: 3
• Number of Phases: 3
• Contact Configuration: 1NC
• Manufacturer: Schneider Electric
• Country of Origin: United States
• Made in USA: Yes
• Heater Included: Yes
• Motor FLA: 90 Ampere
• Trip Class: Class 10, Class 30
• Mounting: Starter
• Approval: UL, CSA, CE
• Number of Thermal Units Required: 3
• Thermal Overload Type: melting alloy
• Product Destination: starter
• Range Of Product: Replacement Relay
• Mounting Support: mounting plate
• Phase: 3
• [Ue] Rated Operational Voltage: 600 V AC
• IGCC: 5364
• Rated Operational Voltage: 600 V AC
• Number Of Thermal Units Requir: 3
• Item [Specifications]: NEMA Overload Relay
• Phase [Specifications]: 3 phase
• Voltage [Specifications]: 600V AC
• NEMA Size [Specifications]: 3
• Trip Class [Specifications]: 10/30
• For Use With [Specifications]: Class 8536 Starters
• Item - Relay [Specifications]: NEMA Style Overload Relay
• Current Range [Specifications]: 46.0 to 90A
• Sensing Method [Specifications]: Thermal
• Number of Poles [Specifications]: 3
• Mounting Support [Specifications]: mounting plate
• Body Depth - Relay [Specifications]: 4.28 in
• Body Width - Relay [Specifications]: 4 in
• Reset Type - Relay [Specifications]: No Reset
• Body Height - Relay [Specifications]: 4.06 in
• Product Destination [Specifications]: starter
• Thermal Overload Type [Specifications]: melting alloy
• Trip Class - Overload [Specifications]: Determined by Thermal Units Selected
• Overall Height - Relay [Specifications]: 4.06 in
• Thermal Units Required [Specifications]: Yes
• Overload Relay Current Range [Specifications]: 46 to 90A
• [Ue] Rated Operational Voltage [Specifications]: 600 V AC
• Number Of Thermal Units Required [Specifications]: 3
• Use With - Contactors and Starters [Specifications]: Mfr. Class 8536 Starters
• Country of Origin (subject to change) [Specifications]: Multiple
• Series: Type S Series
• Amperage: 46-90
• Poles: 3
• Mounting Type: Plate
• Frame Type: 9065
• Standards: RoHS
• Voltage Type: AC
• Manufacturer Part Number: 9065SDO12
• Sensing Method: Thermal
