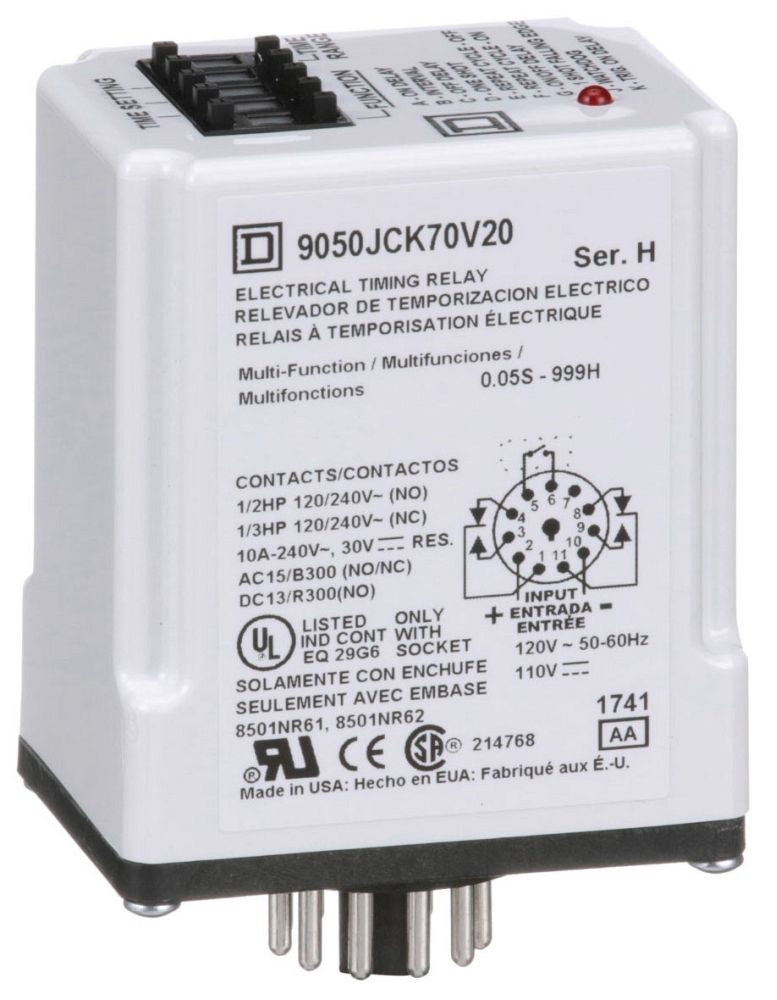

Square D 9050JCK70V20 120V Relay

Product Description

The Square D 9050JCK70V20 is a reliable timer relay designed for various electrical applications. This device operates on AC and DC power with a versatile contact configuration of DPDT, featuring two normally open and two normally closed contacts. With a plug-in socket mounting style and an eleven-pin terminal type, installation is straightforward.

• Coil voltage rating of 120 VAC and 110 VDC.
• Multi-function capabilities include timing modes such as On Delay, Off Delay, Interval, Single Shot, and Repeat Cycle.
• Meets UL, CSA, and CE approval standards.

Product Highlights

This timer relay serves multiple functions, offering ease of use and flexibility for various timing needs.

Product Information

Standard Information

• Manufacturer: Square D Co.
• Catalog Number: 9050JCK70V20

Technical Specifications

• Coil Voltage: 120 VAC, 110 VDC
• Contact Configuration: DPDT, 2NO-2NC
• Contact Current Rating: 10 Ampere
• Timing Range: 0.05 to 9.99/0.1 to 99.9/1 to 999 Sec; 0.1 to 99.9/1 to 999 Min; 0.1 to 99.9/1 to 999 HR
• Approval: UL, CSA, CE
• Terminal Type: 11 Pin
• Mounting: Plug-In Socket
• Unique Product Key: 21228
