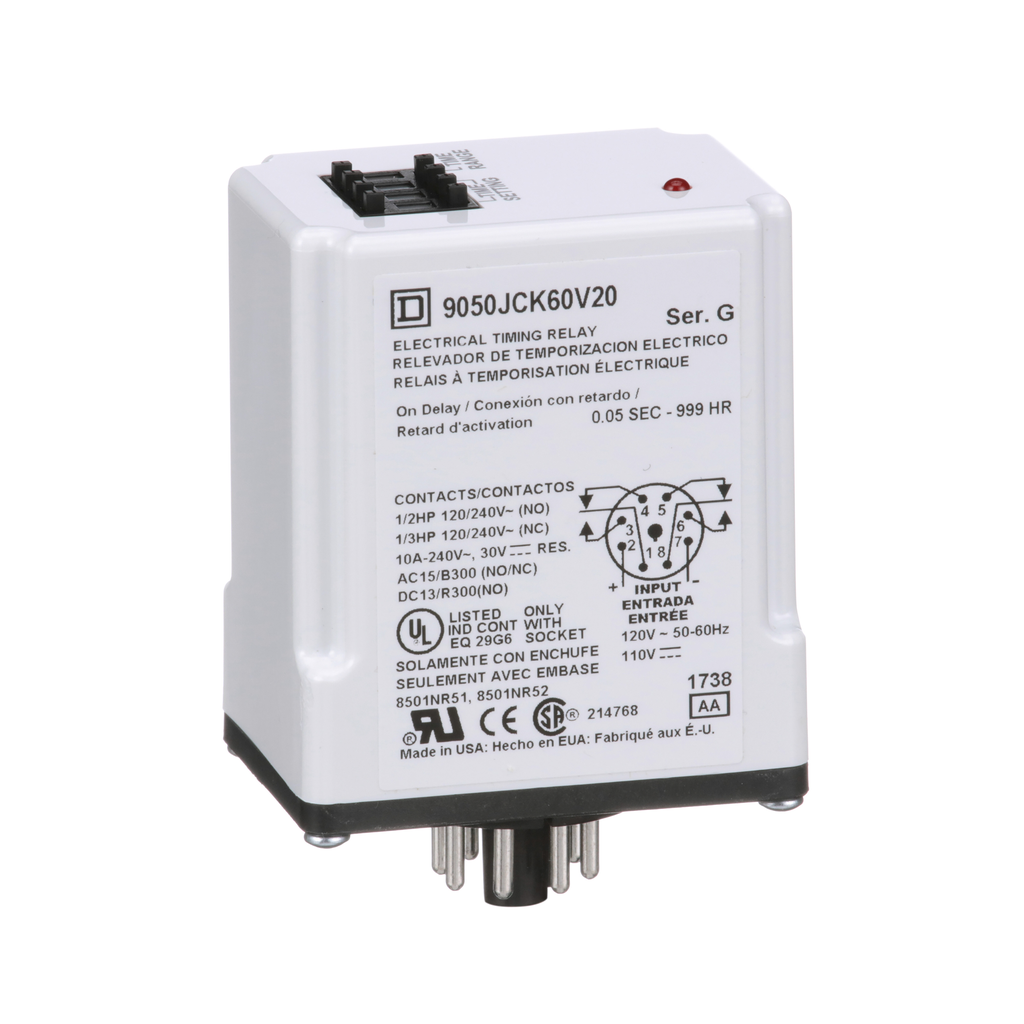

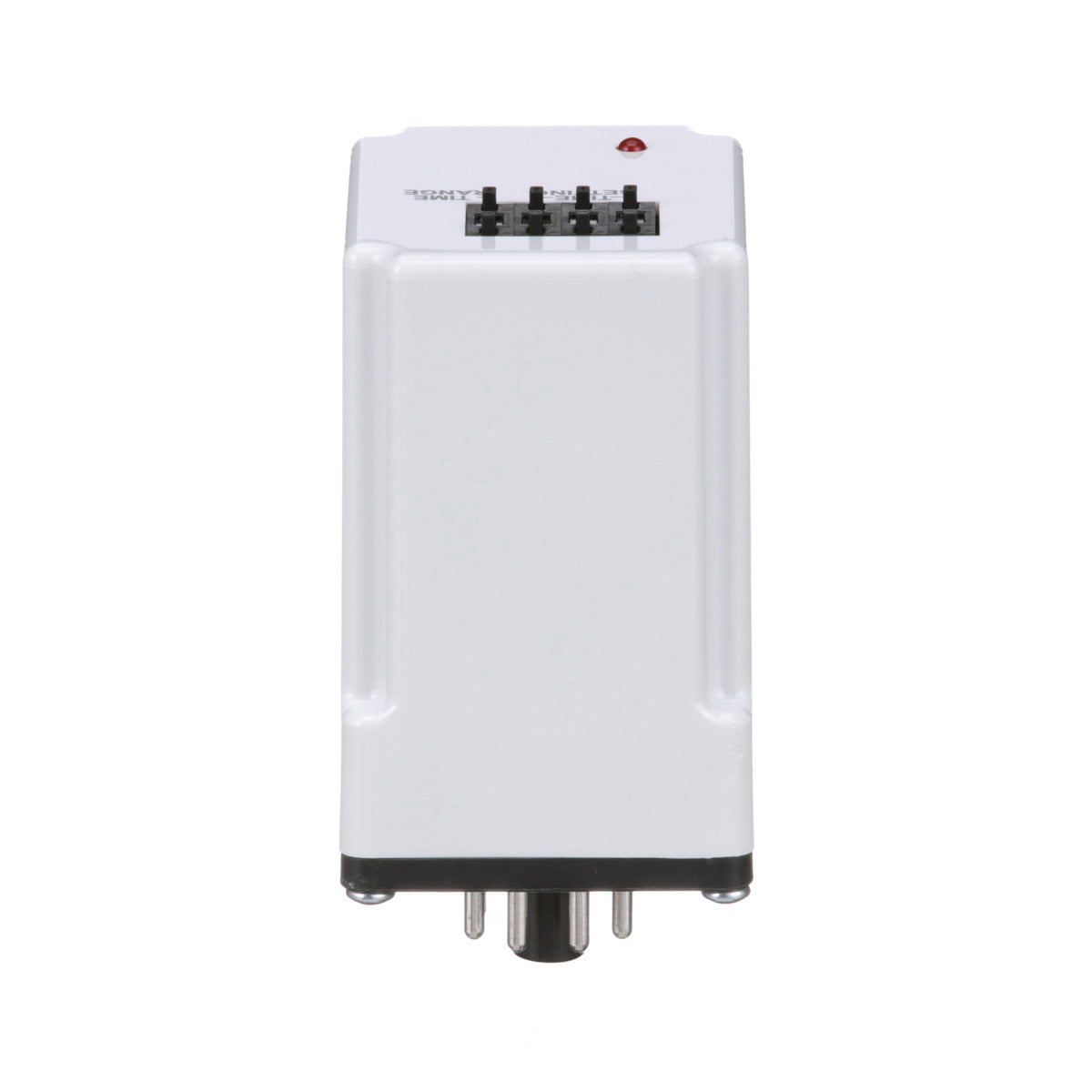

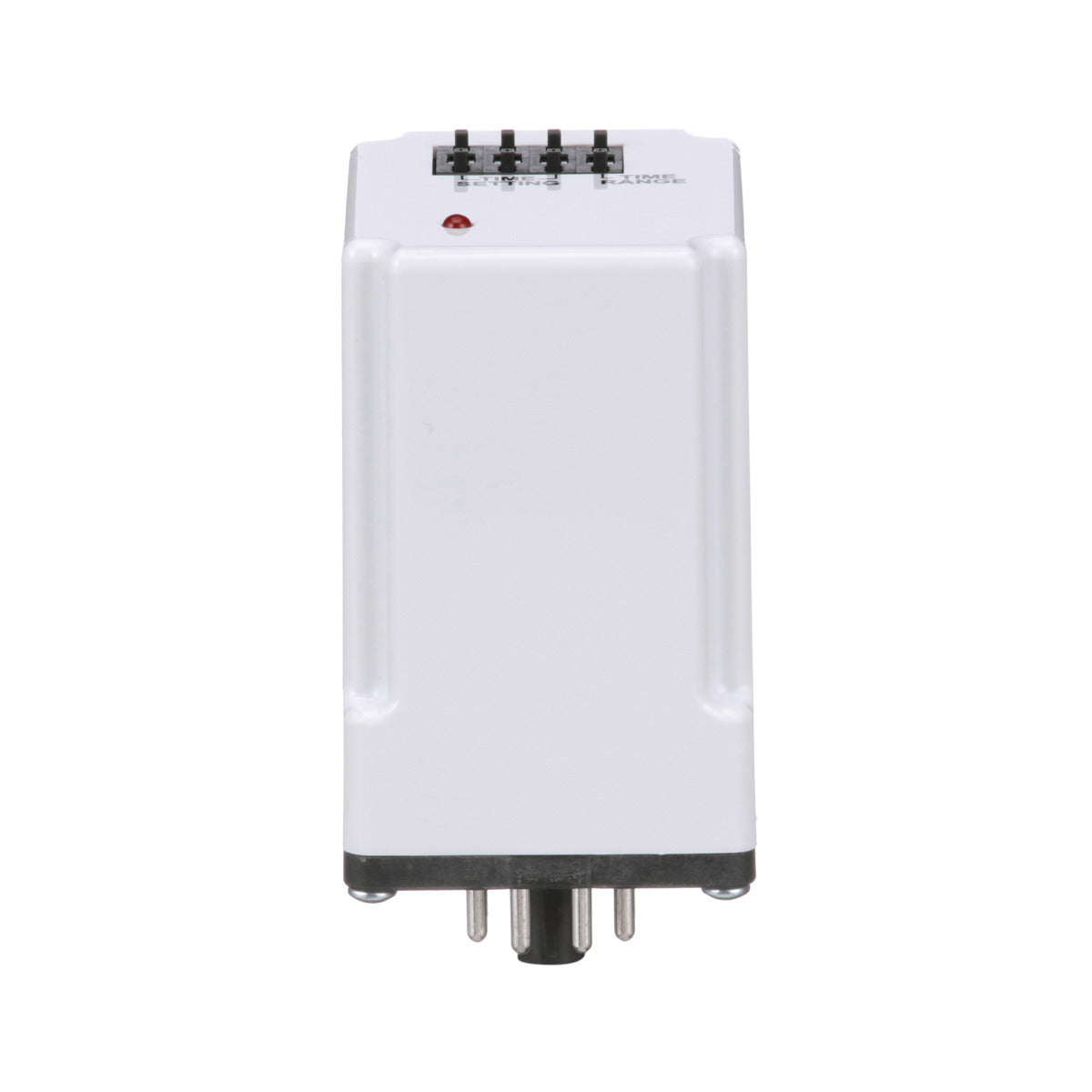

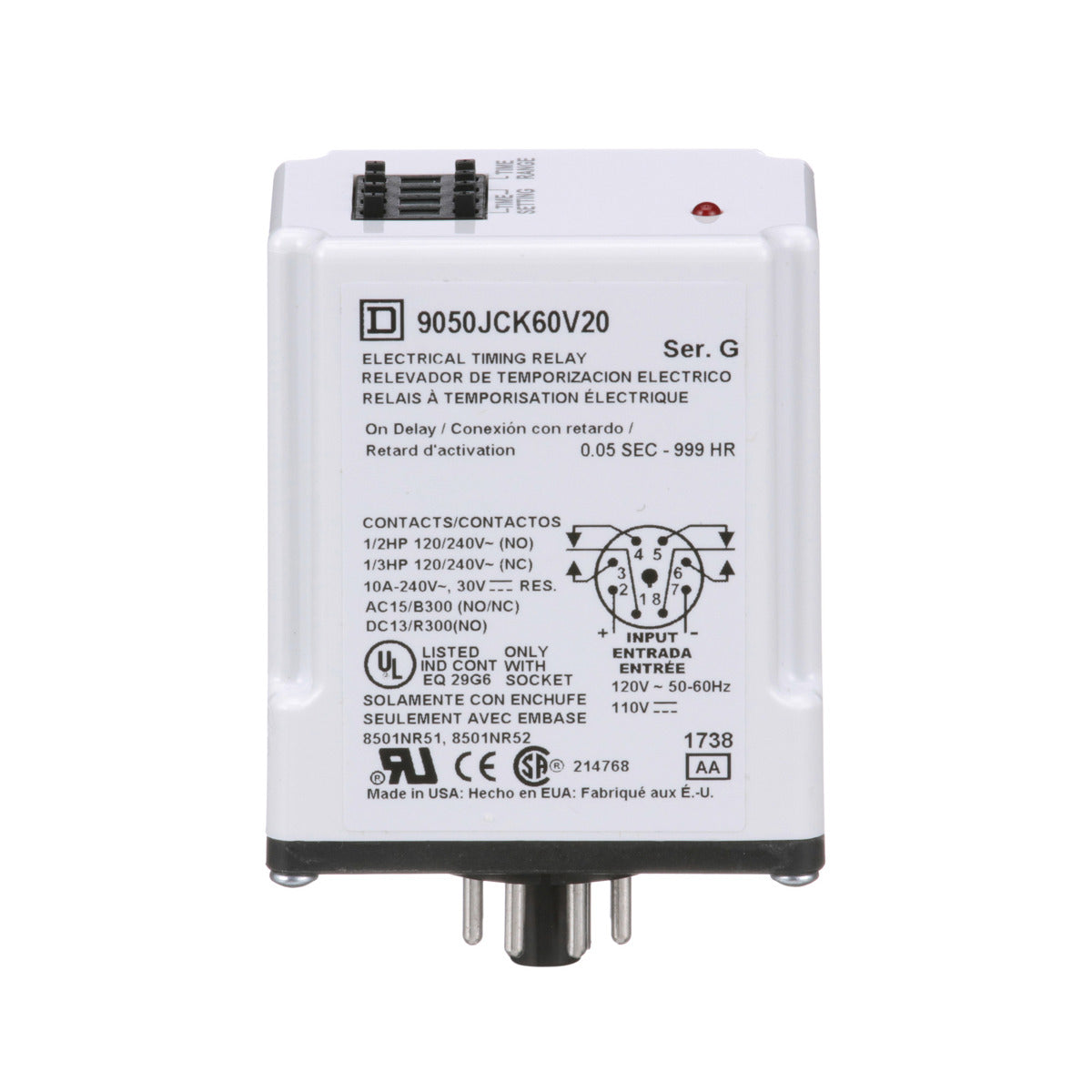

Square D 9050JCK60V20 Timing Relay 10 Amp DPDT Plug-In Socket 120VAC 110VDC

Product Description

The Square D 9050JCK60V20 is a timing relay designed for versatile timing applications. This timer operates with an on delay timing mode. Upon applying voltage, a time delay initiates, after which the relay contacts change state. When the voltage is removed, contacts revert to their original state. Timing is adjustable from 0.5 seconds to 999 hours using thumb wheels.

• Rated 10 Amps at 120 VAC and 240 VAC
• UL Listed and CSA Certified
• Compatible with 8501NR51 or 8501NR52 relay sockets

Product Highlights

Ideal for various control applications in electrical systems, supporting a wide range of timing features.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: 9050JCK60V20
• Voltage Rating: 120 VAC / 110 VDC
• Time Delay Range: 0.5 seconds to 999 hours
• Mounting Type: Socket
• Current Rating: 10 Amps
• Operating Temperature: -18 to 150 degrees F
• Contact Rating: 10 A, 240 V AC, 30 VDC
• Number of Pins: 8
