Square D 9050JCK26V20 120 Vac 110 Vdc Coil 10 Amp Dpdt Plug-In Socket Mount Ac/Dc Timing Relay

Product Description

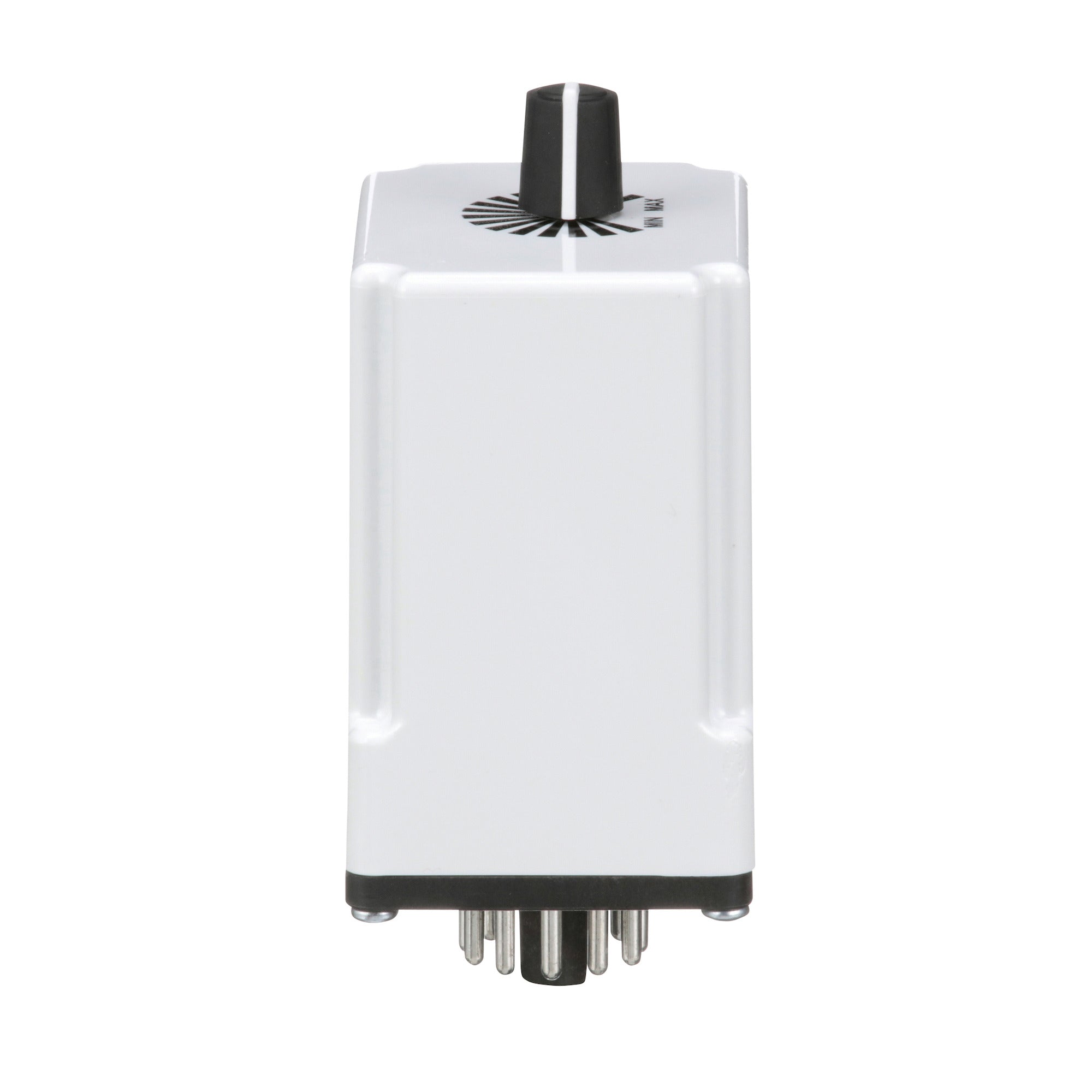

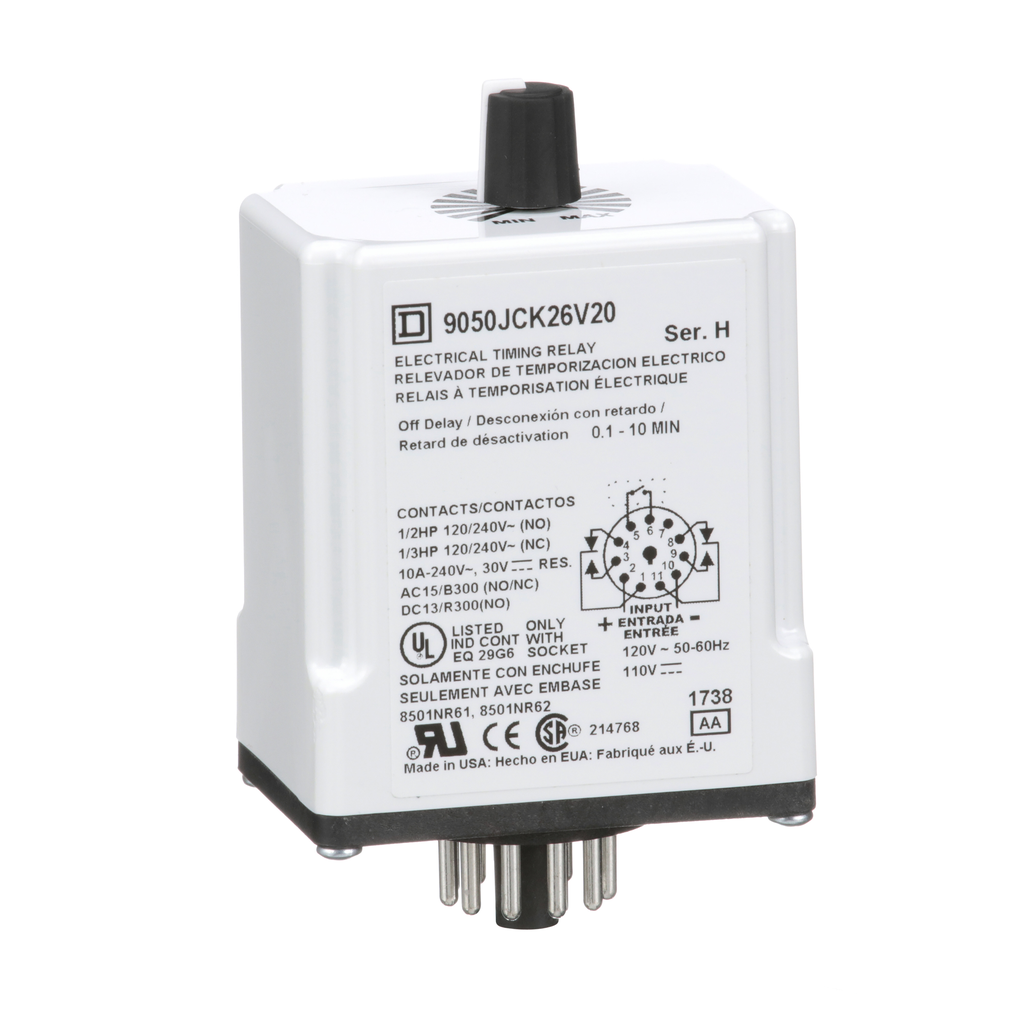

The Square D 9050JCK26V20 is a 120 VAC and 110 VDC coil timing relay designed for plug-in use. This timer offers an off delay timing mode and requires continuous voltage input. The relay contacts change state instantly when the trigger switch closes. Once the switch opens, the time delay initiates. Upon completion of the delay, the relay contacts revert to their original state. If the trigger switch closes before the delay is finished, timing resets. The timer is easily adjusted from zero point one to ten minutes using a simple knob on the top. It plugs into compatible relay sockets such as 8501NR61 or 8501NR62, which can be mounted on standard DIN tracks or directly on panels. It supports various applications with DPDT contacts rated for 10 amperes at specific voltages and is UL listed when used with the appropriate relay socket.

• Timing range from zero point one to ten minutes
• Directly compatible with Square D relay sockets
• UL listed, CSA certified for safety

Product Highlights

This timer provides a reliable, low-cost solution for timing needs in a compact plug-in design.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Brand: Square D

Technical Specifications

• Catalog Number: 9050JCK26V20
• Current Rating: 10 Amp
• Voltage Ratings: 120 VAC, 240 VAC, 30 VDC
• Dimensions: 104 mm x 43 mm x 61 mm
• Mounting Type: Socket
• Contact Configuration: 2 NO + 2 NC
• Power Consumption: 2 VA
• Warranty Length: 18 months
