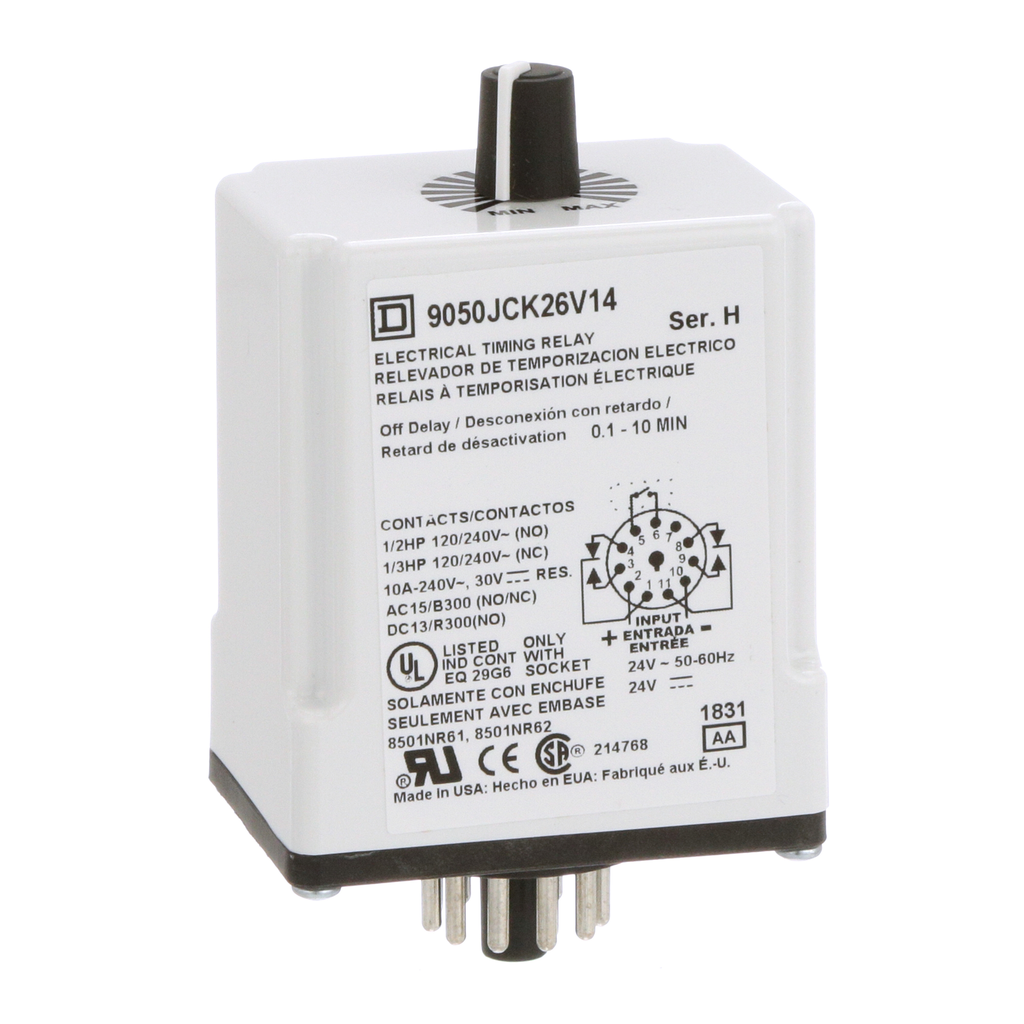

Square D 9050JCK26V14 24 VAC/VDC Coil 10 Amp DPDT Plug-In Socket Mount AC/DC Timing Relay

Product Description

The Square D 9050JCK26V14 is a timing relay designed for use in various control applications. This relay features a plug-in design for easy installation. It operates at either 24 VAC or VDC and has a current rating of ten amperes. The timing range is adjustable from 0.1 to ten minutes using a simple knob. Upon triggering, the relay contacts change state immediately. When the trigger is released, the timing delay starts. Once the delay is completed, the contacts return to their original position, ensuring reliable operation.

• Adjustable timing range from 0.1 to 10 minutes
• Compatible with relay sockets 8501NR61 and 8501NR62
• UL listed when used with compatible relay sockets

Product Highlights

This relay provides dependable timing operations in an easy-to-use plug-in format, ideal for various automation tasks.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• MPN: 9050JCK26V14
• Input Voltage: 240 VAC 50/60 Hz
• Relay Type: DPDT
• Contact Rating: 10 A at 240 VAC, 30 VDC
• Dimensions: 104 mm (length) x 43 mm (width) x 61 mm (height)
• Country of Origin: USA
• Warranty: 18 months
