Square D 9050JCK25V20 120 VAC 110 VDC Coil 10 Amp DPDT Plug-In Socket Mount AC/DC Timing Relay

Product Description

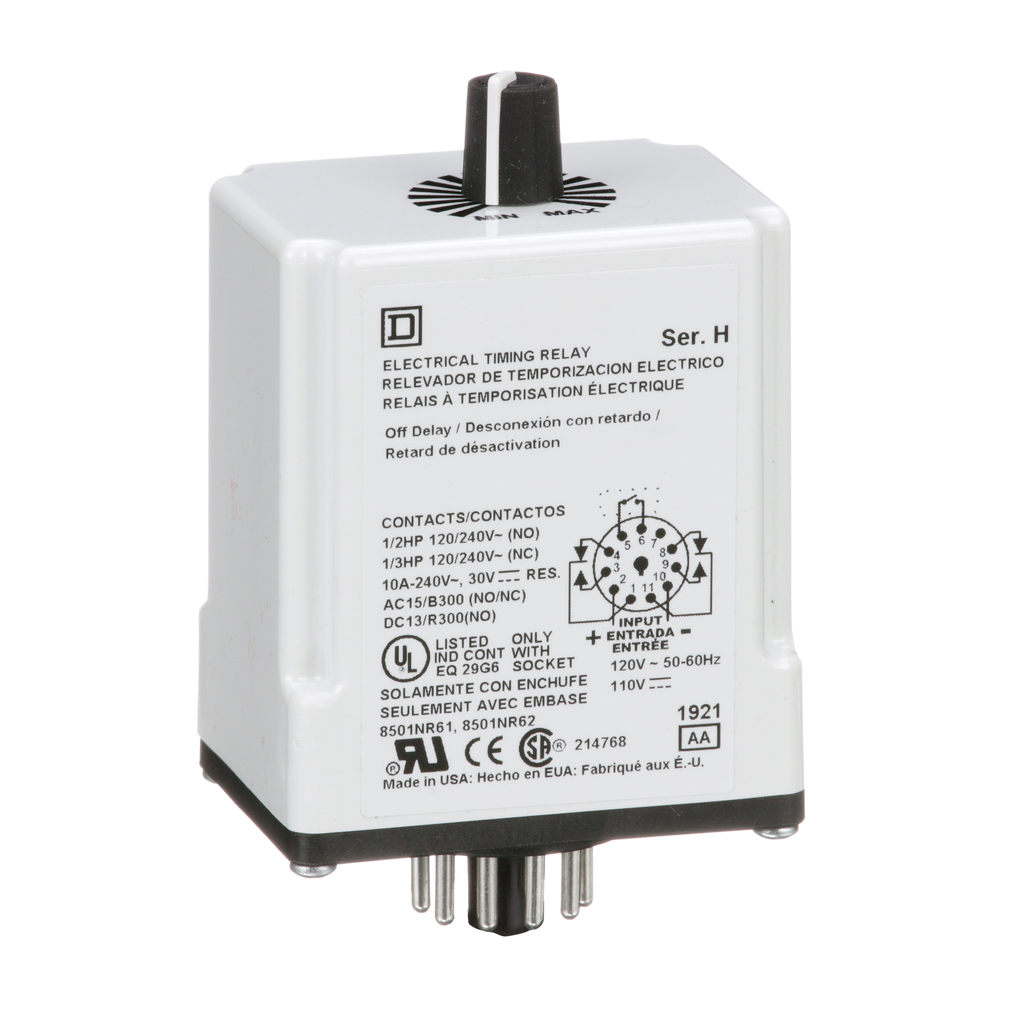

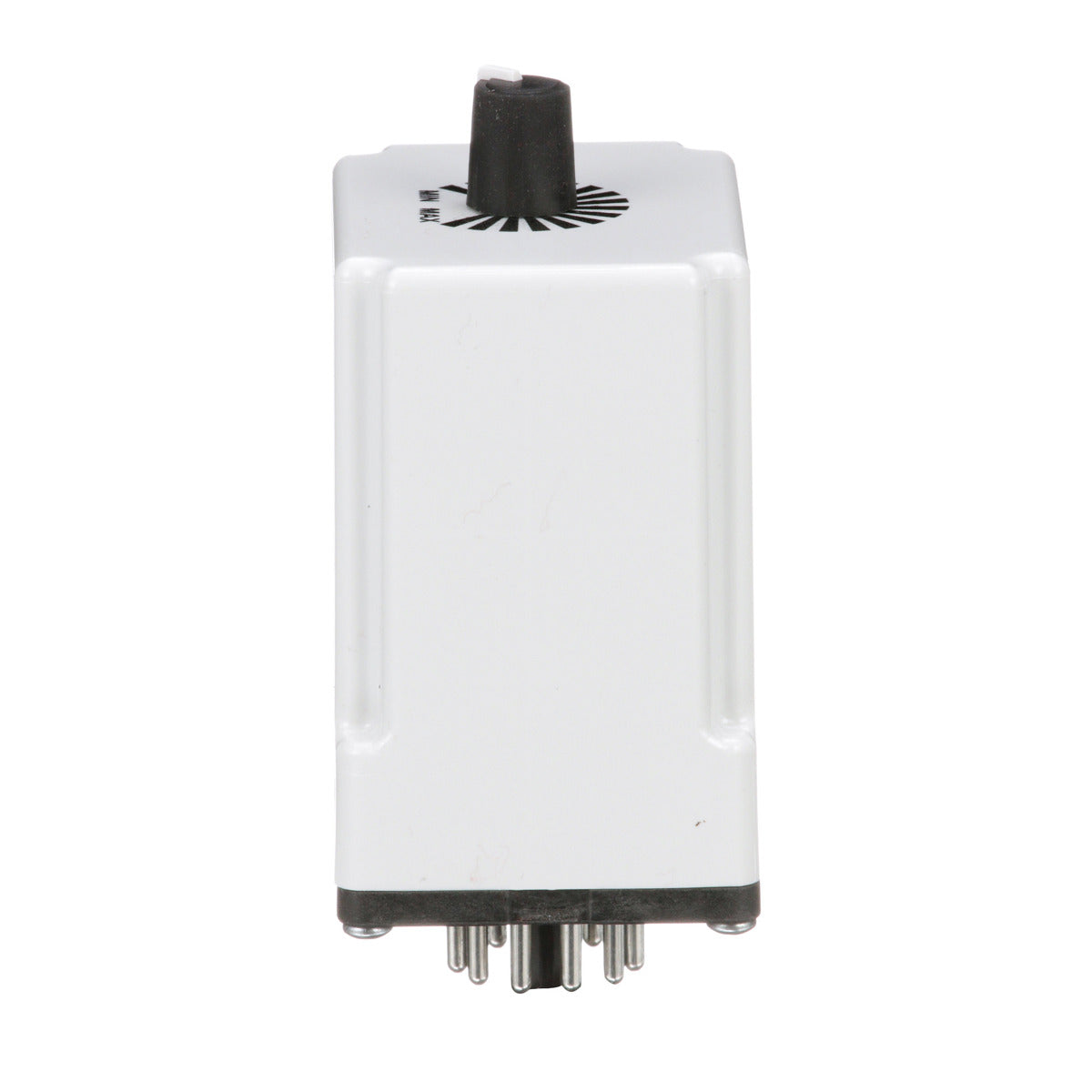

Square D 9050JCK25V20 is a plug-in timing relay designed for simple and efficient control. This timer features an off delay mode. It requires continuous voltage supply. When the trigger switch closes, the relay contacts switch instantly. Once the switch opens, the delay starts. Upon completion of the delay, contacts revert to their initial state. If the trigger is activated during the timing, the cycle resets, and timing begins anew. Adjustment for timing ranges from one point eight to one hundred eighty seconds is made easy using a top-mounted knob. The relay fits into either the 8501NR61 or 8501NR62 sockets, which can be affixed to a thirty-five millimeter DIN track or directly to a panel. All connections are made through the relay socket. The timer supports DPDT contacts rated for ten amperes resistive at 120 VAC and 240 VAC, along with various ratings for inductive loads. This timer operates at 120 VAC or 110 VDC and is UL listed when used with the appropriate relay socket.

• Off delay timing mode.
• Adjustable timing from one point eight to one hundred eighty seconds.
• Rated for ten amperes resistive load.

Product Highlights

Reliable plug-in timer for various control applications.

Product Information

Standard Information

• Catalog Number: 9050JCK25V20
• Brand: Square D

Technical Specifications

• Input Voltage: 120 VAC / 110 VDC
• Operating Temperature: -18 to 150 degrees F
• Contact Rating: 10 A at 240 V AC
• Dimensions: 4.1 inches x 1.7 inches x 2.4 inches
• Country of Origin: USA
• Warranty: 18 months
• Certifications: CE, UL Listed, UL Recognized
• Number of Pins: 11
