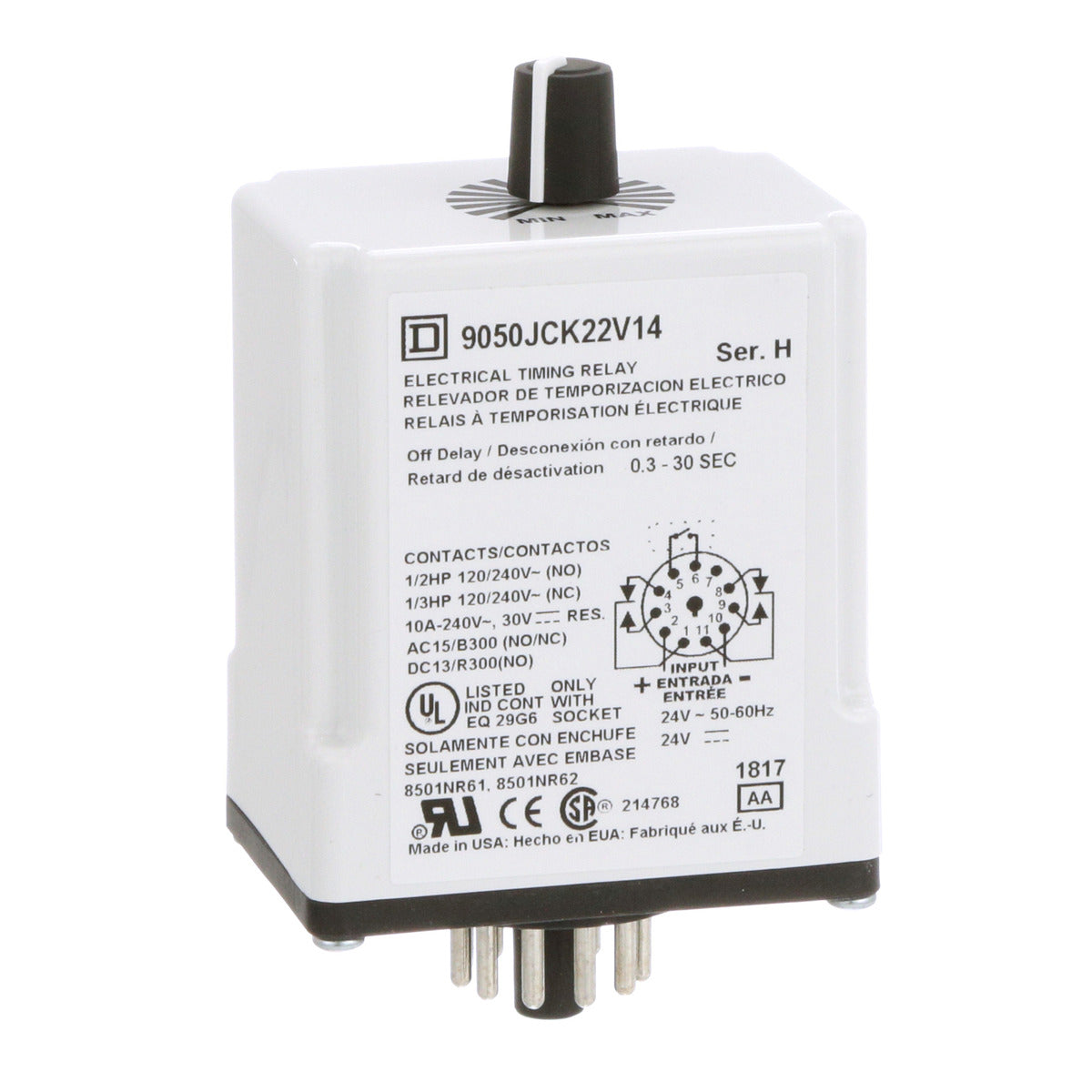

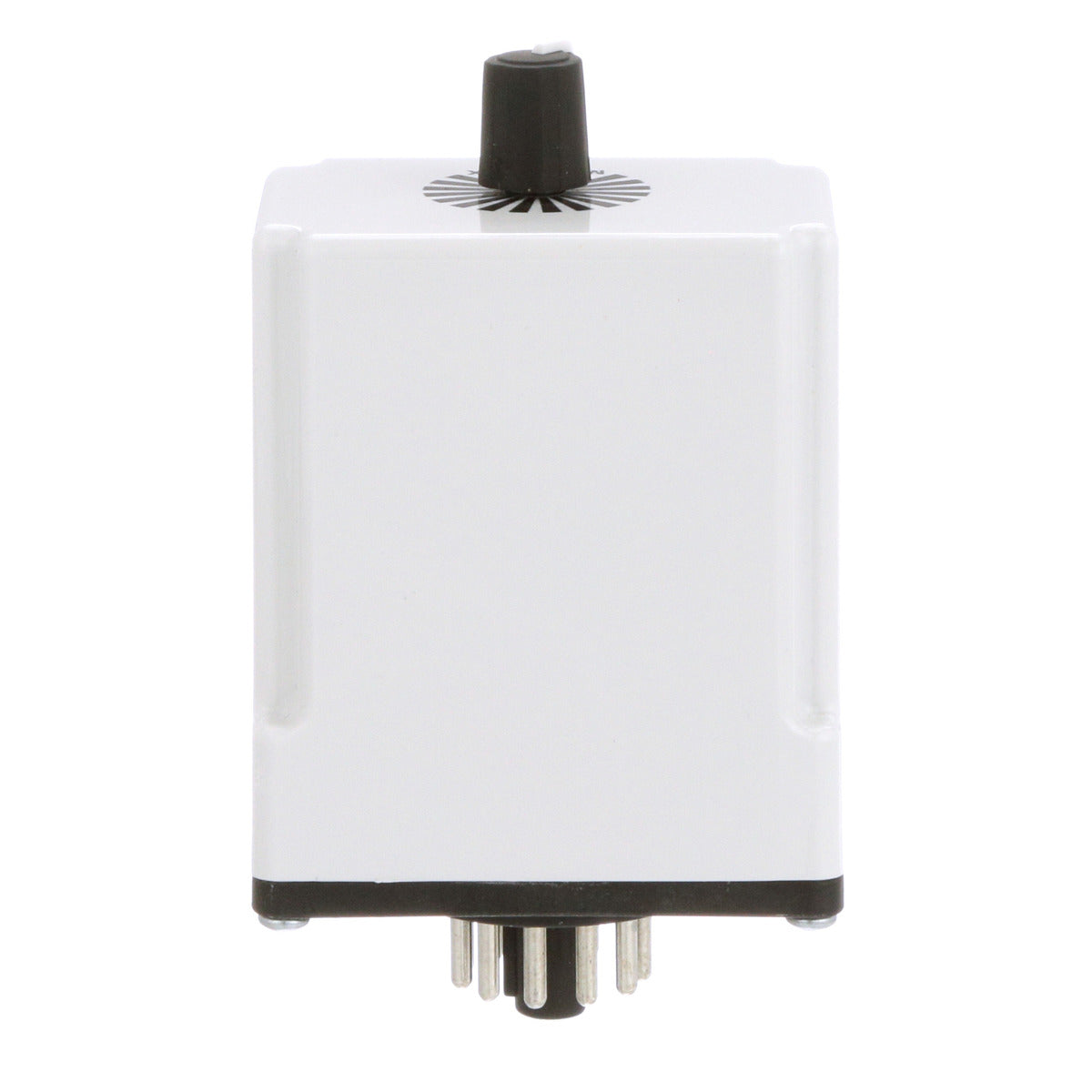

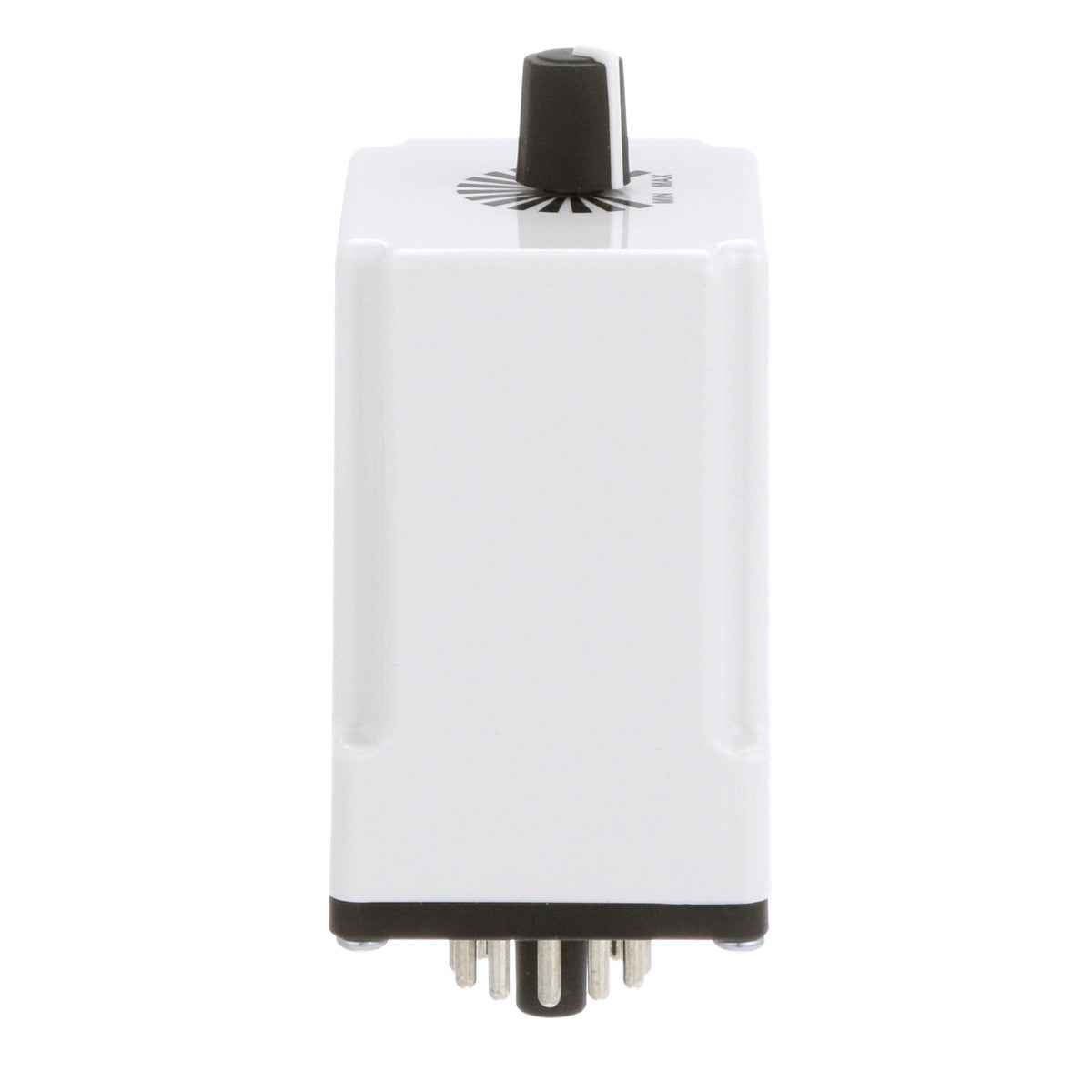

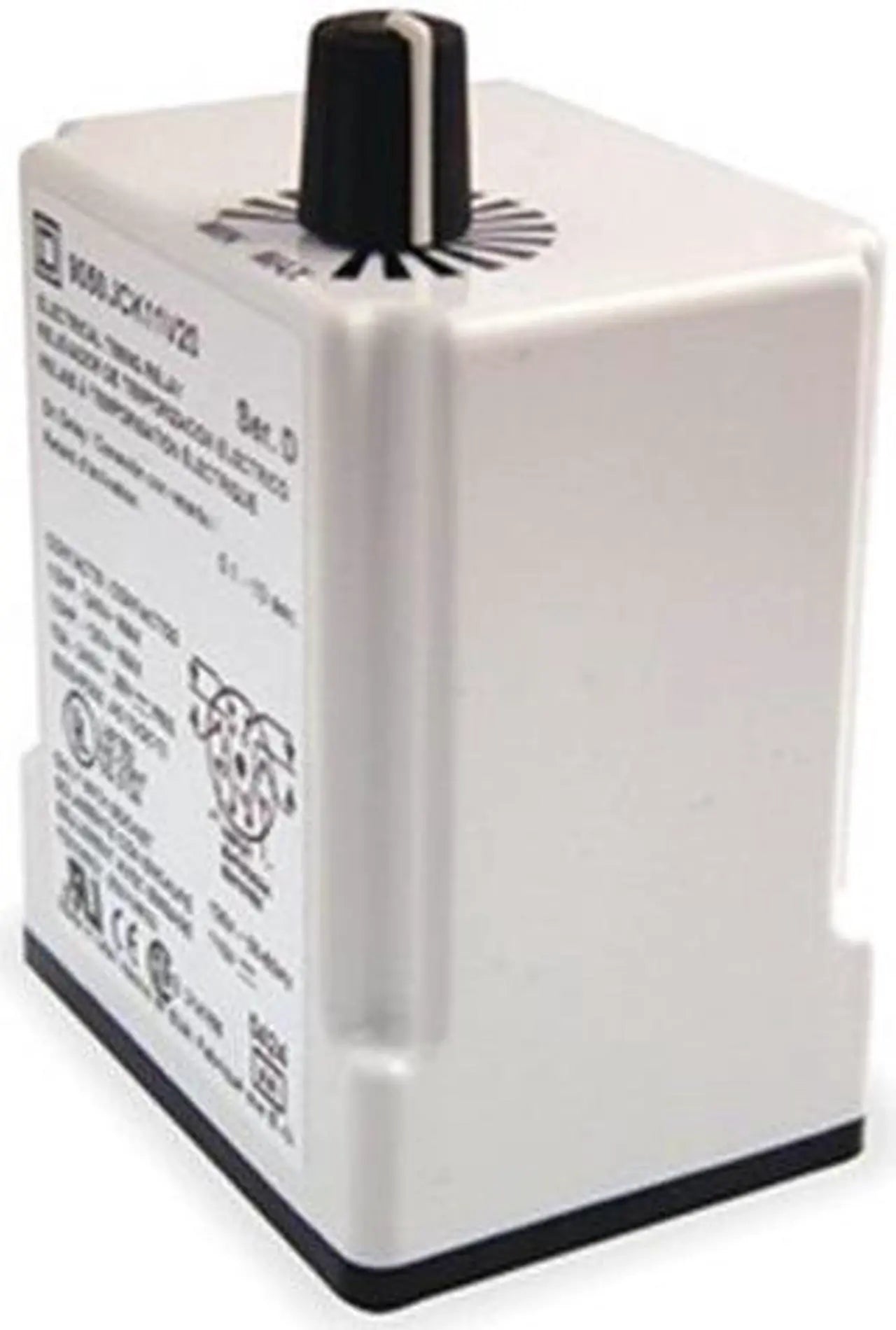

Square D 9050JCK22V14 timing relay 24 VAC/VDC coil 10 amp DPDT plug-in socket mount

Product Description

The Square D 9050JCK22V14 plug-in timer provides low-cost timing in a plug-in housing with an off delay timing mode. Input voltage must be applied continuously. When the trigger switch closes, the timer relay contacts change state instantaneously. The timing range of 0.3 to 30 seconds is adjustable with a knob. It uses an 8501NR61 or 8501NR62 relay socket.

• Timing range of 0.3 to 30 seconds
• DPDT contacts rated 10 amperes resistive at 120/240 VAC and 30 VDC
• Plugs into 8501NR61 or 8501NR62 relay socket

Product Highlights

The Square D 9050JCK22V14 is a plug-in timer with off delay, adjustable timing, and a DPDT contact configuration.

Product Information

Standard Information

• Brand: SQUARE D
• Manufacturer Part Number: 9050JCK22V14
• Country of Origin: USA

Technical Specifications

• Type: Timer
• Brand: Square D
• Current: 10 Amp
• Used With: 8501NR61;8501NR62
• Mounting Type: Socket
• Certifications: CE,UL Listed,UL Recognized
• Contact Rating: 10 A,240 V AC
• Number of Pins: 11
• Contact Material: Silver Nickel
• Power Consumption: 2 VA
• Line Rated Current: 10 A
• Contact Configuration: DPDT, 2NO-2NC
• Operating Temperature: -18-150 degrees F
• Manufacturer: Schneider Electric
• Made in USA: Yes
• Coil Voltage: 24 VAC/VDC
• Timing Range: 0.3 to 30 Sec
• Timing Mode: Off Delay
• Timing Adjustment Operator Type: Knob
• Terminal Type: 11 Pin
• Mounting: Plug-In Socket
• Approval: UL, CSA, CE
• Type of Pins: Tubular
• Part #: 9050JCK22V14
• Category: Time Delay Relay
• Control Voltage: 240 VAC
• Function: Off-Delay
• Manufacturer Part Number: 9050JCK22V14
• Maximum Operating Temperature: 50 °C
• Minimum Operating Temperature: -28 °C
• Socketable: Socketable
• Primary Type: Time Delay Relays
• Series: JCK Series
• Termination: 11-Pin Octal
• Model: 9050JCK22V14
