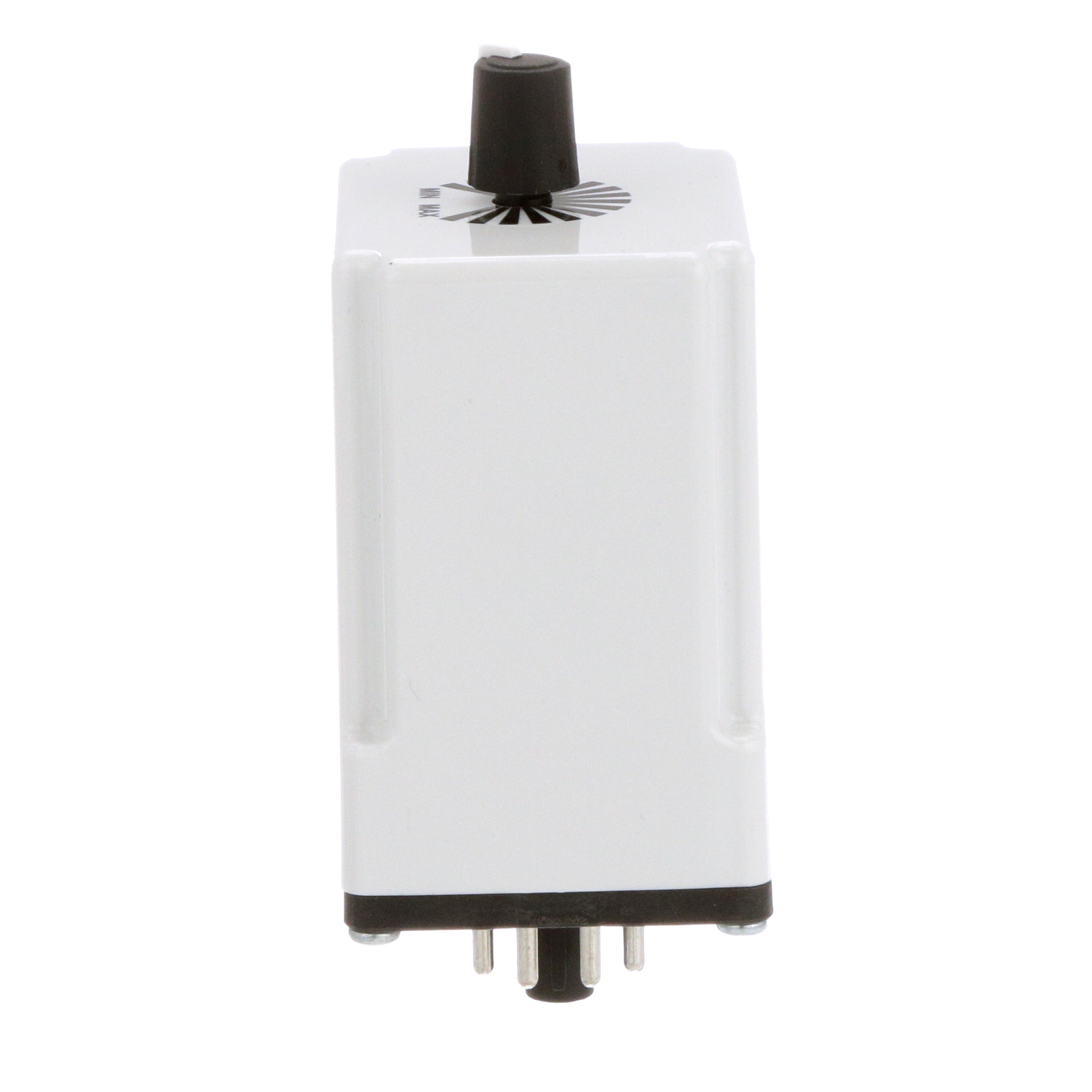

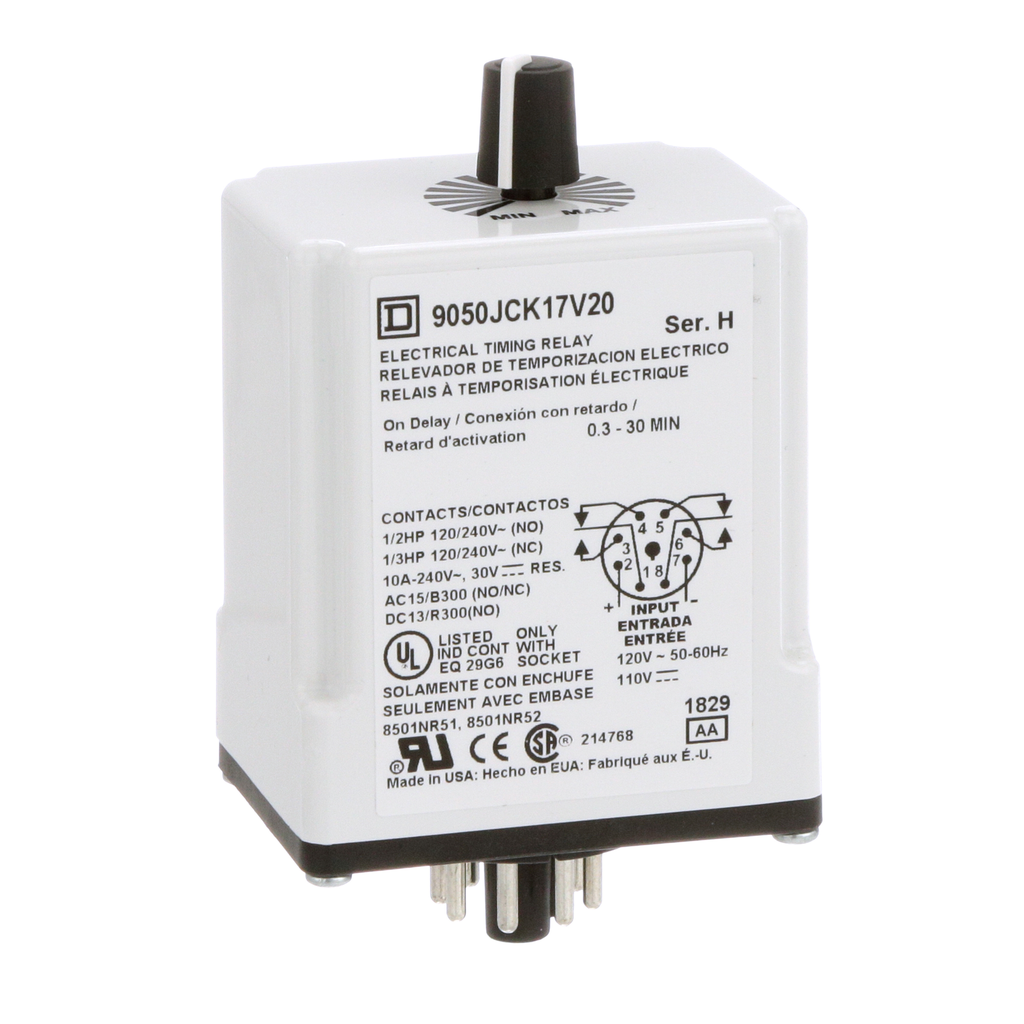

Square D 9050JCK17V20 120 VAC 110 VDC Coil 10 Amp DPDT Plug-In Socket Mount AC/DC Timing Relay

Product Description

The Square D 9050JCK17V20 is a plug-in timing relay designed for low-cost timing applications. This timer features an on-delay timing mode. When voltage is applied, the delay commences, and relay contacts change state after the preset duration. Removing the voltage returns the contacts to their original state. The timer offers a timing range adjustable from 0.3 to 30 minutes with a simple knob operation.

This timer can be plugged into either an 8501NR51 or 8501NR52 relay socket, suitable for mounting on a thirty-five millimeter DIN track or directly to a panel. It simplifies wiring as all connections are made to the relay socket. Its DPDT contacts can handle up to ten amperes at a voltage of 120 VAC, 240 VAC, or 30 VDC, and are rated for various loads including half horsepower on normally open contacts.

• Adjustable timing range of 0.3 to 30 minutes
• Compatible with 8501NR51 and 8501NR52 relay sockets
• UL listed with the appropriate relay socket

Product Highlights

Designed for ease of use and flexibility in timing applications, the 9050JCK17V20 provides dependable relay operation. It boasts certifications from UL and CSA, indicating its safety and reliability.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• MPN: 9050JCK17V20
• Coil Voltage: 120 VAC, 110 VDC
• Timing Adjustment Operator: Knob
• Contact Configuration: DPDT, 2NO-2NC
• Contact Rating: 10 A
• Mounting Type: Plug-In Socket
• Operating Temperature: -18 to 150 degrees F
• Warranty: 18 months
