Square D 9050JCK16V20 120 VAC 110 VDC Coil 10 Amp DPDT Plug-In Socket Mount AC/DC Timing Relay

Product Description

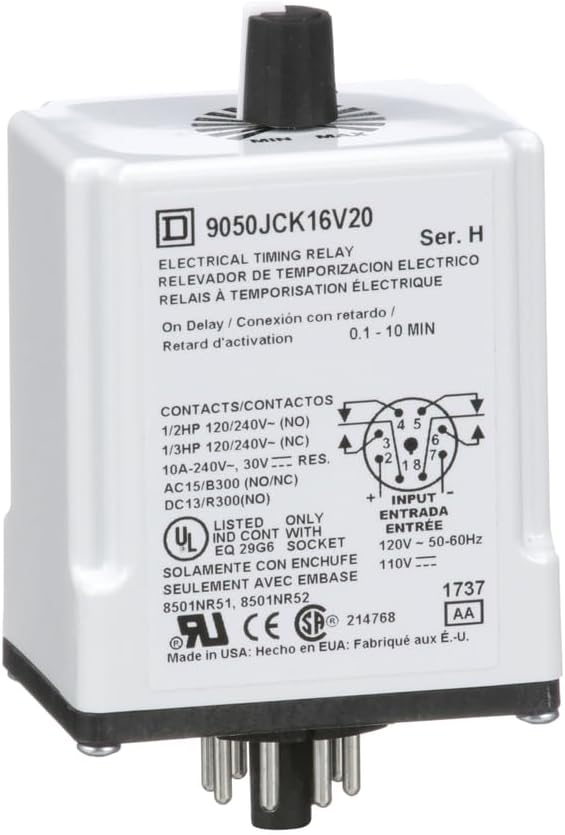

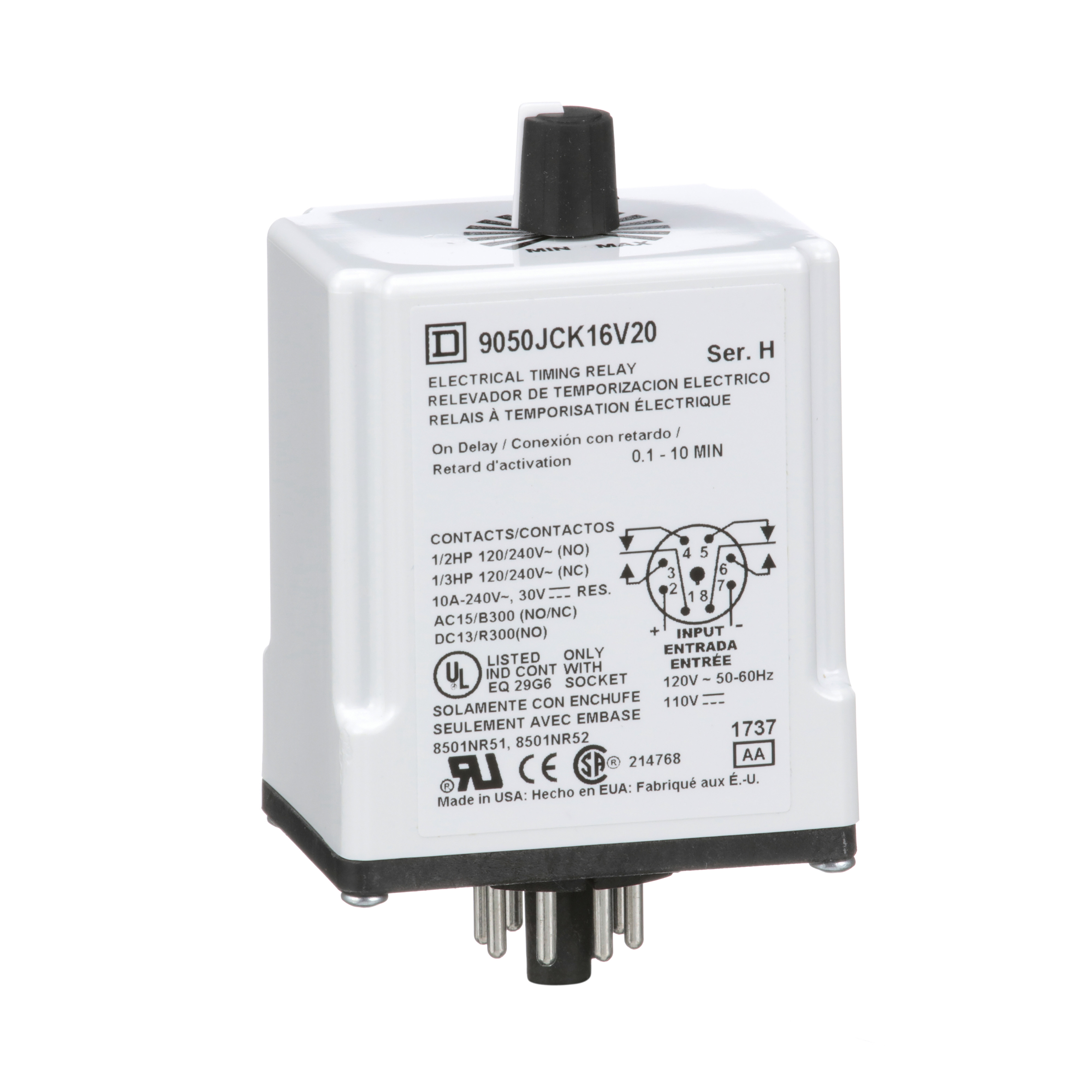

The Square D 9050JCK16V20 plug-in timer provides low-cost timing in a plug-in housing. This timer features an on-delay timing mode, initiating the time delay upon input voltage application and changing relay contacts after the delay. It has an adjustable timing range from 0.1 to 10 minutes via a top-mounted knob and is powered by 120 VAC / 110 VDC.

• Available in 7 timing modes
• DPDT output contacts
• General Purpose Plug In Timers

Product Highlights

This Square D plug-in timer offers adjustable timing, DPDT contacts, and is suitable for use with 8501NR51 or 8501NR52 relay sockets.

Product Information

Standard Information

• Brand: SQUARE D
• Manufacturer Part Number: 9050JCK16V20
• Country of Origin: United States

Technical Specifications

• Type: DPDT,TIMER
• Brand: Square D
• Depth: 104 mm
• Width: 43 mm
• Height: 61 mm
• Current: 10 Amp
• Used With: 8501NR51;8501NR52 NULL
• Mounting Type: Socket
• Certifications: CE,UL Listed,UL Recognized
• Contact Rating: 10 A,240 V AC
• Number of Pins: 8
• Contact Material: Silver Nickel
• Power Consumption: 2 VA
• Line Rated Current: 10 A
• Contact Configuration: 2 NO + 2 NC
• Operating Temperature: -18-150 degrees F
• Coil Voltage: 120 VAC, 110 VDC
• Timing Range: 0.1 to 10 Min
• Timing Mode: On Delay
• Timing Adjustment Operator Type: Knob
• Terminal Type: 8 Pin
• Approval: UL, CSA, CE
• Type of Pins: Tubular
• Range Of Product: 9050JCK
• Product Or Component Type: timer
• Time Delay Range: 0.1...10 min
• Time Delay Type: On-delay
• Mounting Support: socket
• Contacts Material: silver nickel
• Hold-In Power Consumption In Va: 2-2 VA
• Shape Of Pin: tubular
• Maximum Switching Voltage: 240 V AC
• Switch Function: DPDT
• Product Compatibility: 8501NR51 || 8501NR52
• Pin Number: 8
• Product Certifications: CE || UL Listed || UL Recognized
• Ambient Air Temperature For Operation: -18-150 °F
• Function: On-Delay
• Series: JCK Series
• Termination: 8-Pin Octal
