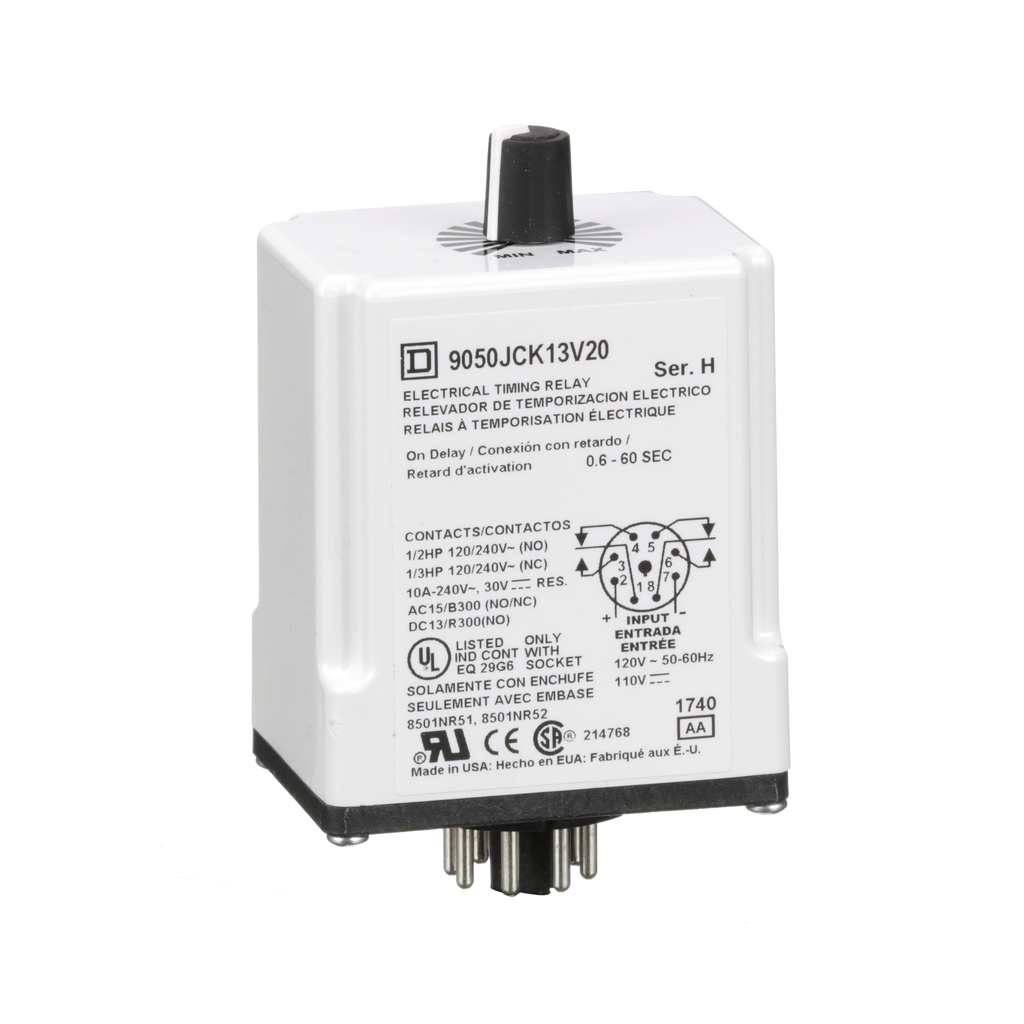

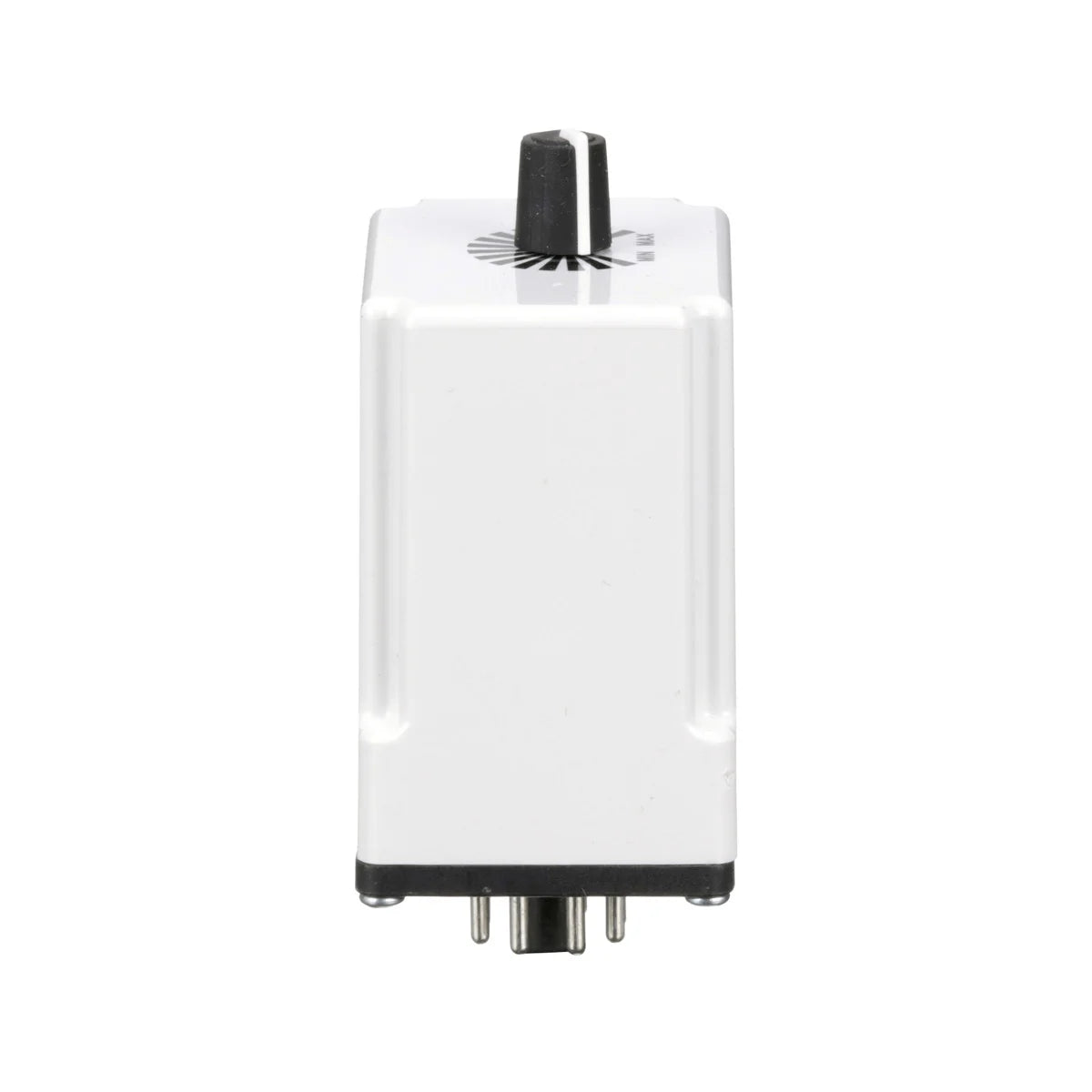

Square D 9050JCK13V20 120 VAC 110 VDC Coil 10 Amp DPDT Plug-In Socket Mount AC/DC Timing Relay

Product Description

The Square D 9050JCK13V20 is a plug-in timing relay designed for applications requiring reliable time delay functionality. This relay operates on 120 VAC and 110 VDC and features an adjustable timing range from 0.6 to 60 seconds. The timer initiates when the input voltage is applied and the relay contacts switch states after the preset delay. Once the input voltage is removed, the contacts revert to their original state. It plugs into 8501NR51 or 8501NR52 relay sockets, which can be mounted on DIN rail tracks or panels.

• Adjustable timing range from 0.6 to 60 seconds
• DPDT output contacts rated for 10 amps
• UL listed and CSA certified for safety

Product Highlights

This relay is ideal for low-cost timing solutions in various control systems.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: 9050JCK13V20
• Current Rating: 10 Amp
• Input Voltage: 120 VAC / 110 VDC
• Contact Configuration: 2 NO + 2 NC
• Operating Temperature: -18 to 150 degrees F
• Weight: 0.24 lbs
• Dimensions: 4.09 inches (length) x 1.69 inches (width) x 2.40 inches (height)
• Certifications: CE, UL Listed, UL Recognized
