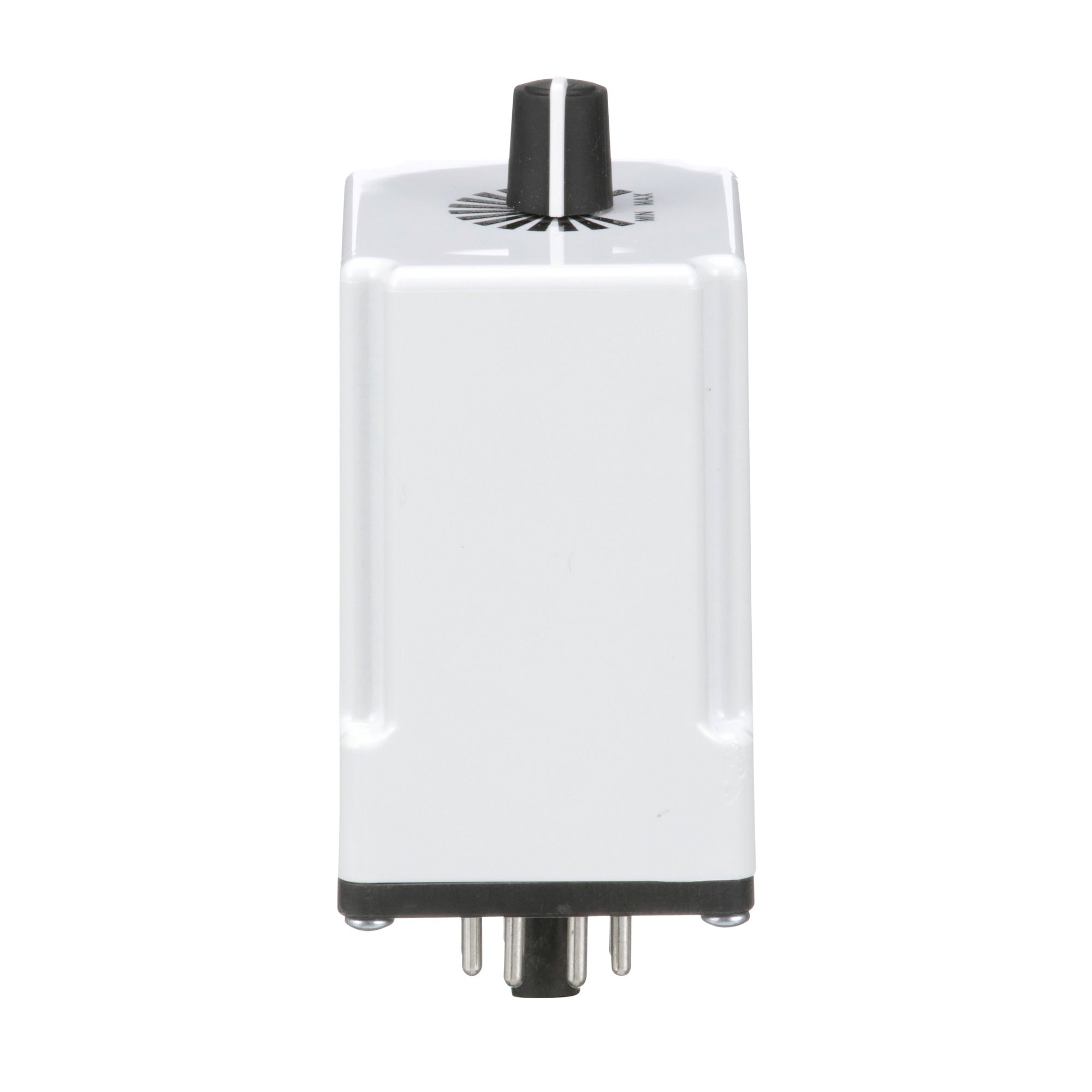

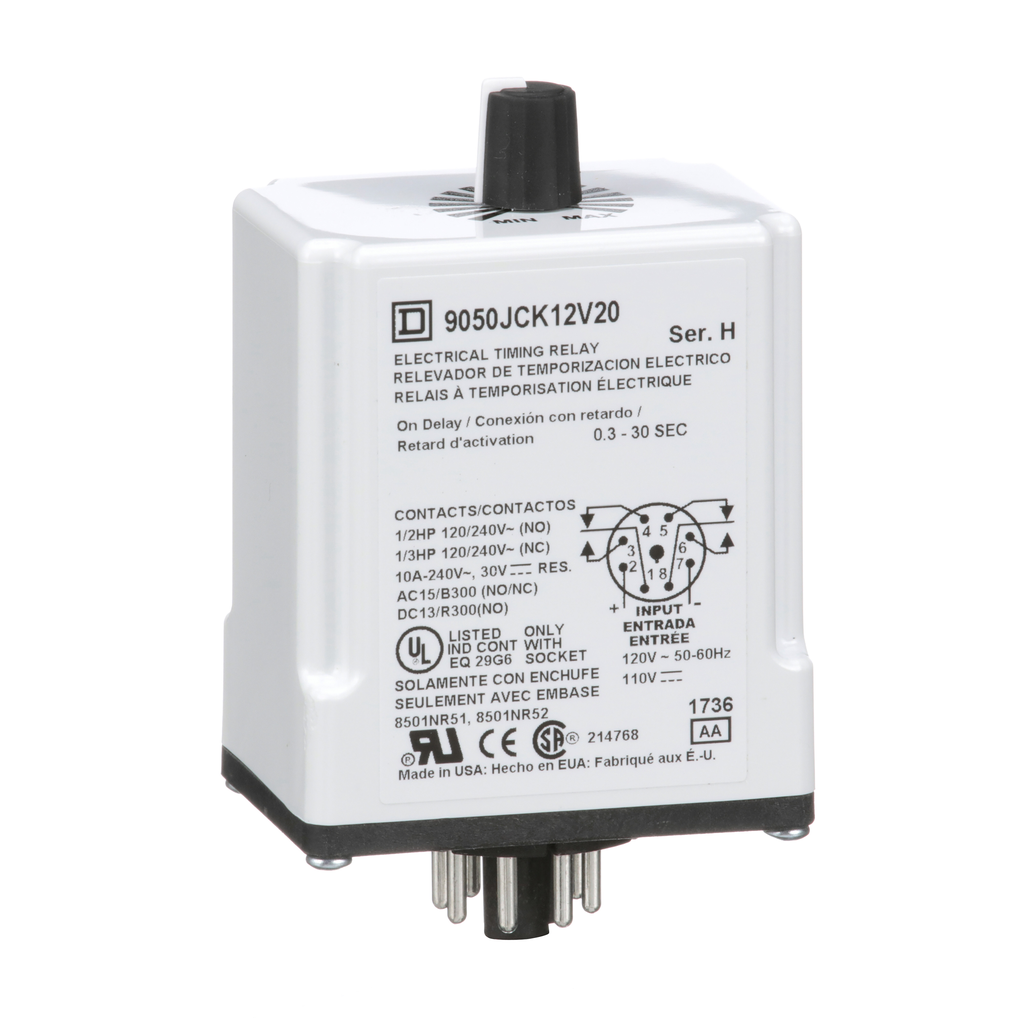

Square D 9050JCK12V20 120 VAC 110 VDC Coil 10 Amp DPDT Plug-In Socket Mount AC/DC Timing Relay

Product Description

The Square D 9050JCK12V20 is a reliable timing relay designed for low-cost timing applications. This relay operates on 120 VAC and 110 VDC, providing a 10 Amp DPDT output. It features an adjustable timing range from 0.3 seconds to 30 seconds. When power is applied, the relay activates after the set time period. If power is removed, normal operation resumes. The relay fits into standard 8501NR51 or 8501NR52 sockets, which can be mounted on DIN tracks or panels.

• Adjustable time delay from 0.3 to 30 seconds.
• DPDT contacts rated for up to 10 Amps.
• UL listed and CSA certified for safety.

Product Highlights

This time delay relay is designed for versatile use in control circuits, motor control applications, and lighting systems.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: 9050JCK12V20
• Voltage: 120 VAC / 110 VDC
• Current Rating: 10 Amp
• Contact Configuration: DPDT
• Time Delay Range: 0.3 to 30 seconds
• Dimensions: 4.55 inches x 2.7 inches x 1.95 inches
• Weight: 0.28 lbs
• Mounting Type: Socket
