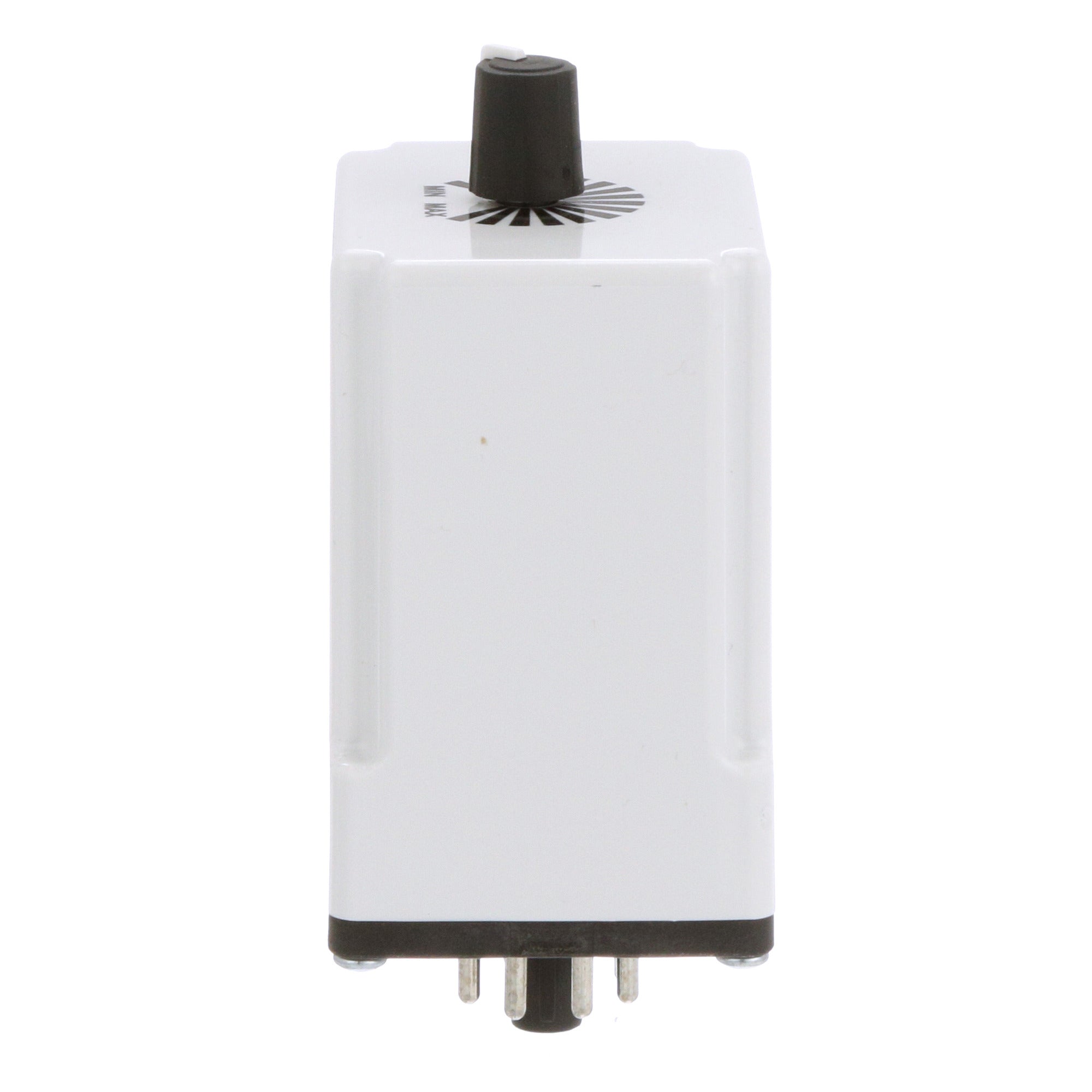

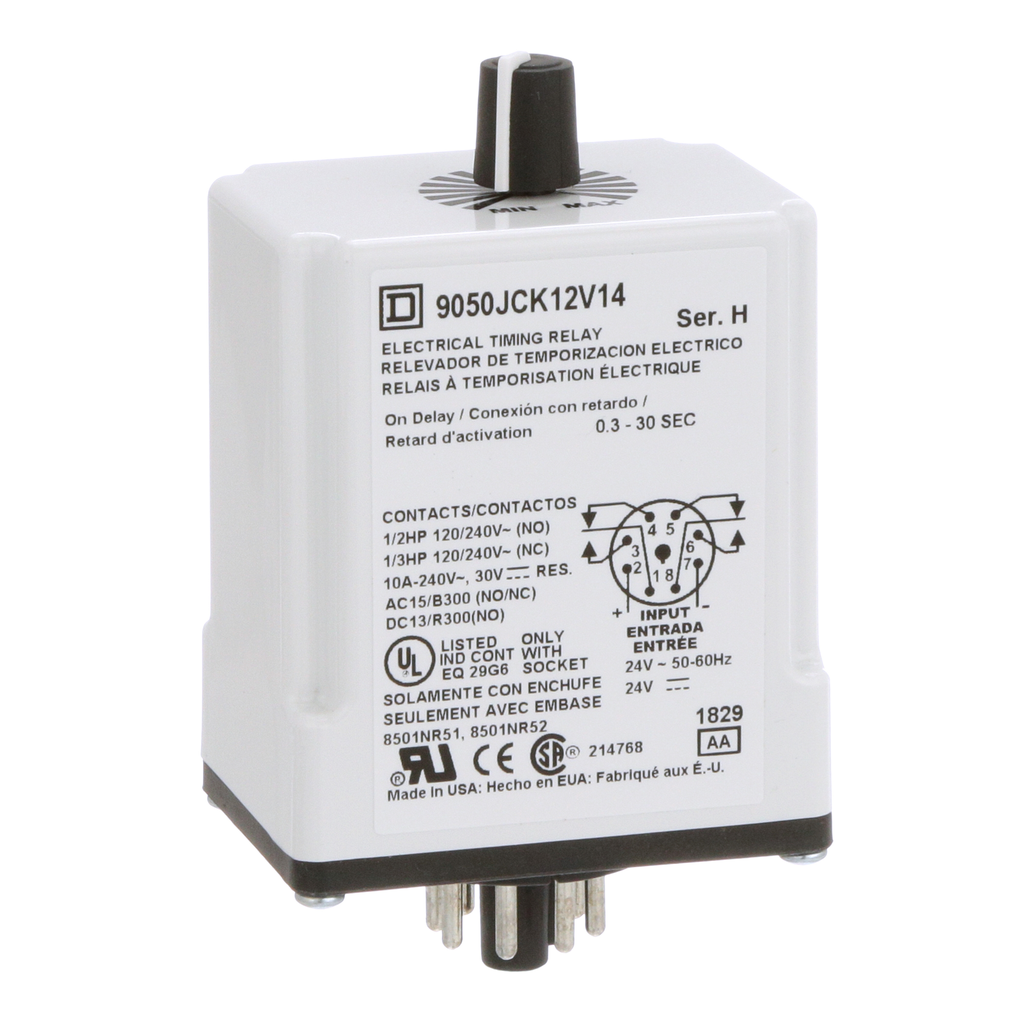

Square D 9050JCK12V14 24 VAC/VDC Coil 10 Amp DPDT Plug-In Socket Mount AC/DC Timing Relay

Product Description

Square D offers the 9050JCK12V14, a 24 VAC/VDC coil DPDT timing relay. This plug-in timer delivers cost-effective timing solutions in a compact design. It features an on-delay timing mode, allowing the relay contacts to change state after a preset delay when the input voltage is applied. The timer provides an adjustable timing range from 0.3 to 30 seconds using a simple knob on the top. Designed for compatibility with 8501NR51 and 8501NR52 relay sockets, it can be mounted on a DIN rail or directly to a panel. All connections are made to the relay socket.

• Adjustable timing range: 0.3 seconds to 30 seconds
• Contact ratings of 10 amperes at 120 VAC and 240 VAC
• UL listed with proper relay socket

Product Highlights

This timing relay is suitable for various control applications where timing is essential.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: 9050JCK12V14
• Current Rating: 10 Amp
• Power Supply: 24 VAC/VDC
• Contact Configuration: DPDT
• Contact Rating: 10 A at 240 V AC
• Operating Temperature: -18 to 150 degrees F
• Dimensions: 4.09 inches (length) x 1.69 inches (width) x 2.40 inches (height)
• Country of Origin: USA
