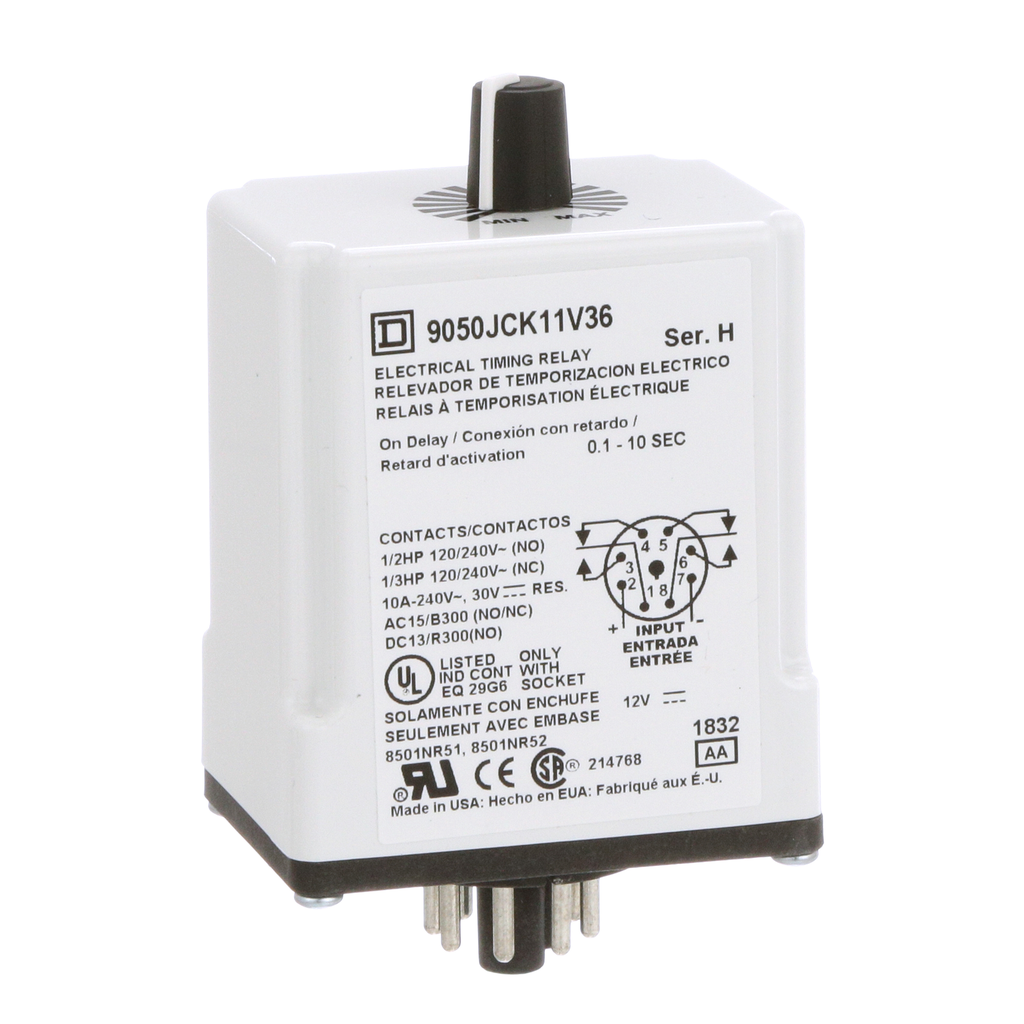

Square D 9050JCK11V36 Timing Relay 12 VAC/VDC 10 Amp DPDT Socket Mount

Product Description

The Square D 9050JCK11V36 is a 12 VAC/VDC coil timing relay designed for socket mounting. This product is used for controlling timing functions in various applications. It features an on-delay timing mode where the time delay starts when input voltage is applied. The relay contacts change state after the delay is complete and return to their original state once the voltage is removed.

• Adjustable timing range from 0.1 to 10 seconds
• Compatible with 8501NR51 and 8501NR52 relay sockets
• UL listed when used with the proper relay socket

Product Highlights

This timing relay is suitable for various industrial automation tasks and is highly reliable in use.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: 9050JCK11V36
• Type: Timer; DPDT
• Coil Voltage: 12 VAC/VDC
• Current Rating: 10 Amp
• Contact Configuration: 2 NO + 2 NC
• Dimensions: 104 mm (depth), 43 mm (width), 61 mm (height)
• Operating Temperature: -18 to 150 degrees F
• Contact Rating: 10 A at 240 V AC
• Warranty: 18 months
