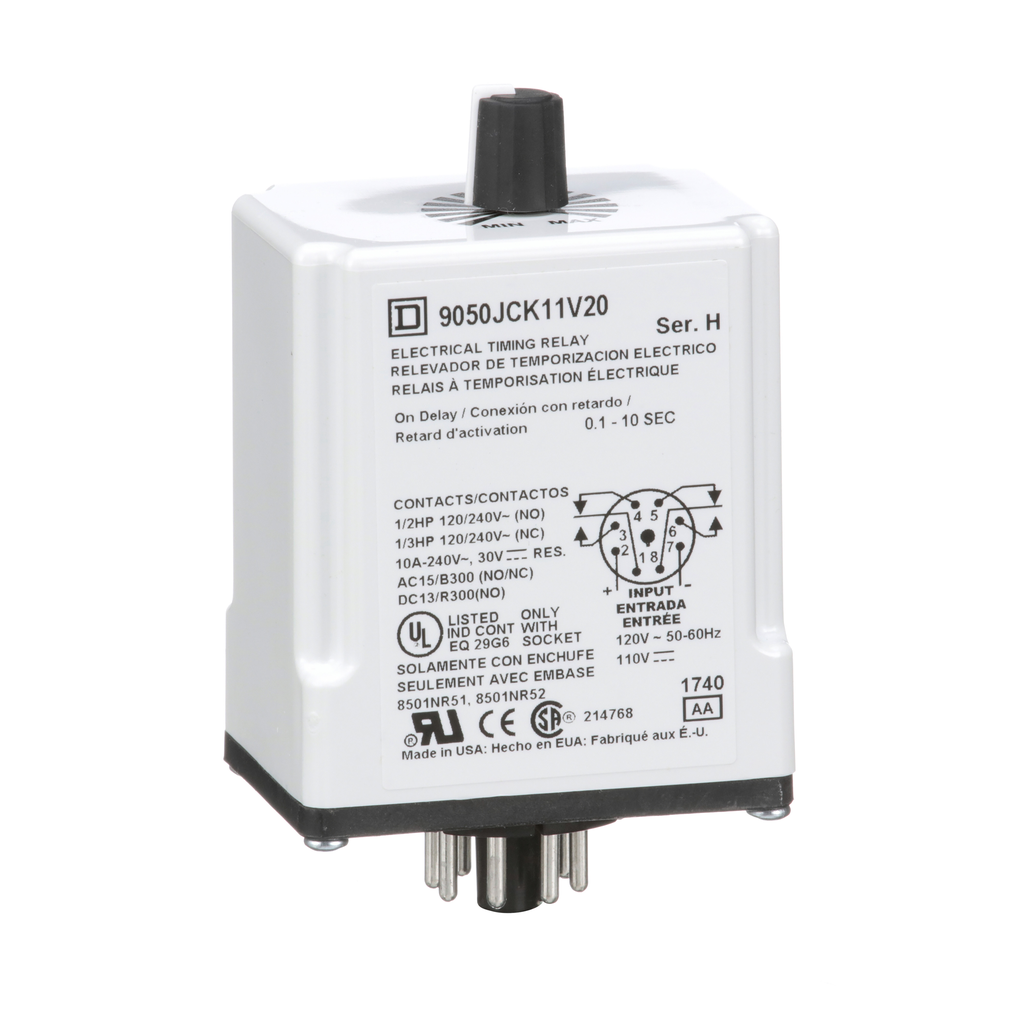

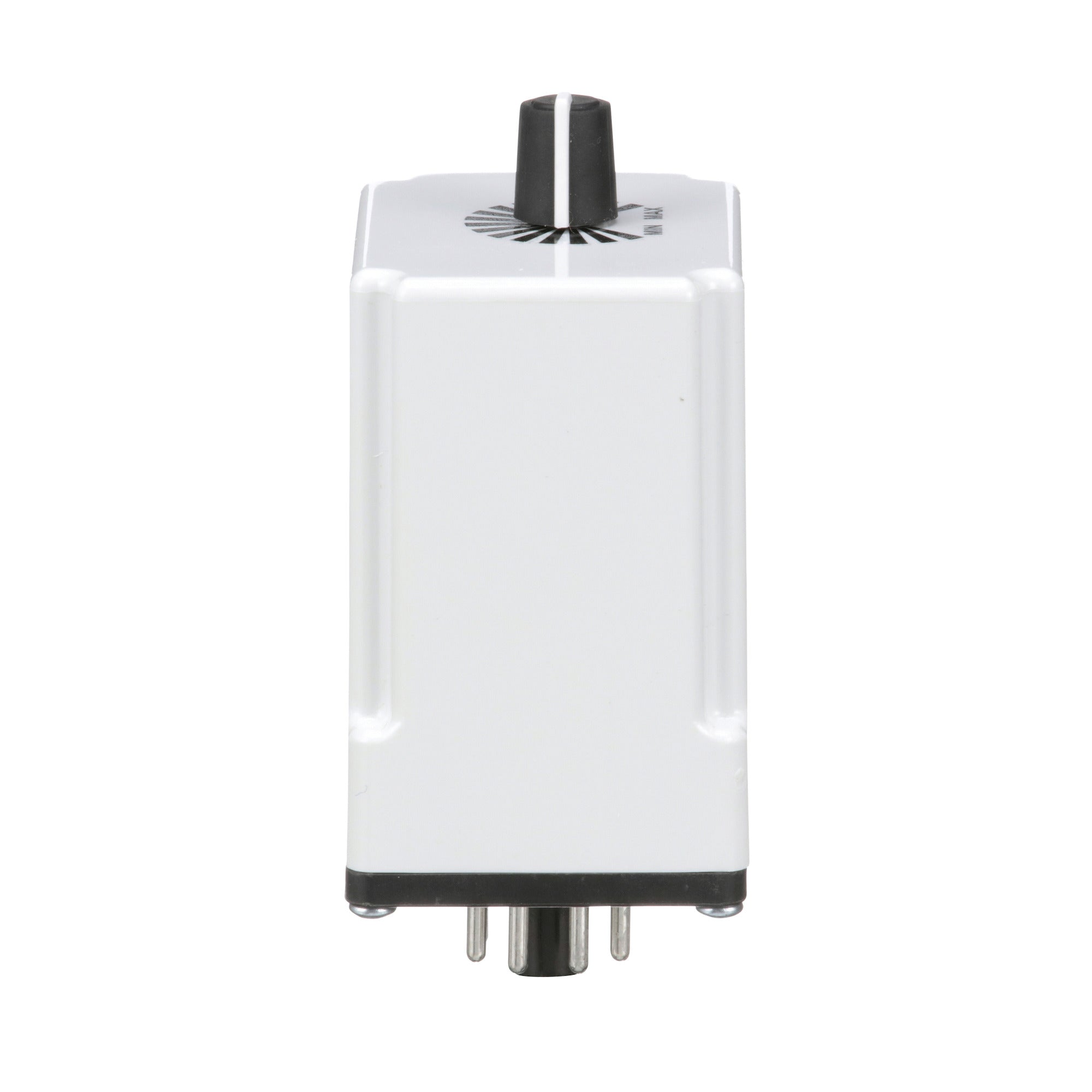

Square D 9050JCK11V20 120 VAC 110 VDC Coil 10 Amp DPDT Socket Mount AC/DC Electronic Timing Relay

Product Description

The Square D 9050JCK11V20 is a plug-in timer designed for low-cost timing solutions. It operates with a delay timing mode, where relay contacts change state after an adjustable time delay. The timer features a timing range of zero point one seconds to ten seconds, easily set with a top-mounted knob.

• Compatible with 8501NR51 or 8501NR52 relay sockets
• DPDT contacts rated at 10 amperes at 120 VAC, 240 VAC, and 30 VDC
• UL listed and CSA certified, ensuring safety compliance

Product Highlights

This relay timer is ideal for various applications across control and automation tasks, providing reliable timing control in compact housing.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: 9050JCK11V20
• Voltage Type: 120 VAC / 110 VDC
• Contact Rating: 10 A, 240 V AC
• Dimensions: 4.1 inches (height), 1.7 inches (width), 2.7 inches (depth)
• Operating Temperature: -18 to 150 degrees F
• Certifications: CE, UL Listed, UL Recognized
• Warranty Length: 18 months
