Square D 9050JCK11V14 Dpdt Time Delay Relay 10A 24V

Product Description

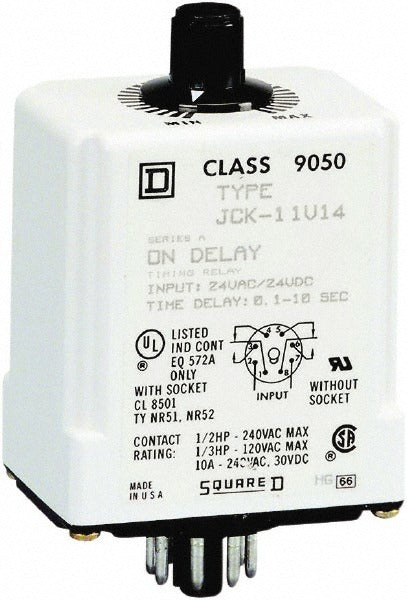

The SQUARE D 9050JCK11V14 is a double-pole double-throw (DPDT) time delay relay rated for 10 amps of contact current and 24 volts AC or DC. It operates on a Delay On Make (DOM) timing function, meaning the output contacts close after a set time interval following energization of the coil. Minimum adjustable delay starts at 0.1 seconds. This relay is used in control circuits to sequence equipment startups, prevent simultaneous loads from energizing, or introduce intentional timing gaps in automated systems. Licensed electricians and controls technicians are the typical installers.

The 9050JCK11V14 is suited for low-voltage control panel applications in commercial HVAC systems, industrial automation, and building controls where a timed switching function is required. Its compact footprint makes it practical for mounting inside control enclosures or on DIN-rail assemblies. The 24-volt coil voltage aligns with standard transformer secondaries common in HVAC and building automation equipment.

Key Features

• Delay On Make timing function with a minimum delay of 0.1 seconds
• DPDT contact configuration provides two independently switched circuits in one device
• 10-amp contact rating handles typical control circuit loads
• 24-volt AC or DC coil voltage matches standard HVAC and building-control transformer outputs
• Compact body measuring 4.3 inches long, 2 inches wide, and 2.4 inches tall

Compatibility

Designed as an OEM-style replacement relay for low-voltage control circuits in commercial HVAC, building automation, and industrial control panel applications requiring a DPDT Delay On Make timing function at 24 volts.

Installation Notes

Installation should be performed by a licensed electrician or qualified controls technician in accordance with applicable NEC requirements. De-energize and lock out the control panel before removing or installing the relay. Verify coil voltage and contact ampacity match the circuit before energizing. Do not exceed the rated 10-amp contact current under any load condition.
