Square D 9050AO10EV06 480 VAC 60 Hz Coil 15 Amp 1NO 1NC 0.1 Second to 1 Minute Pneumatic Timer

Product Description

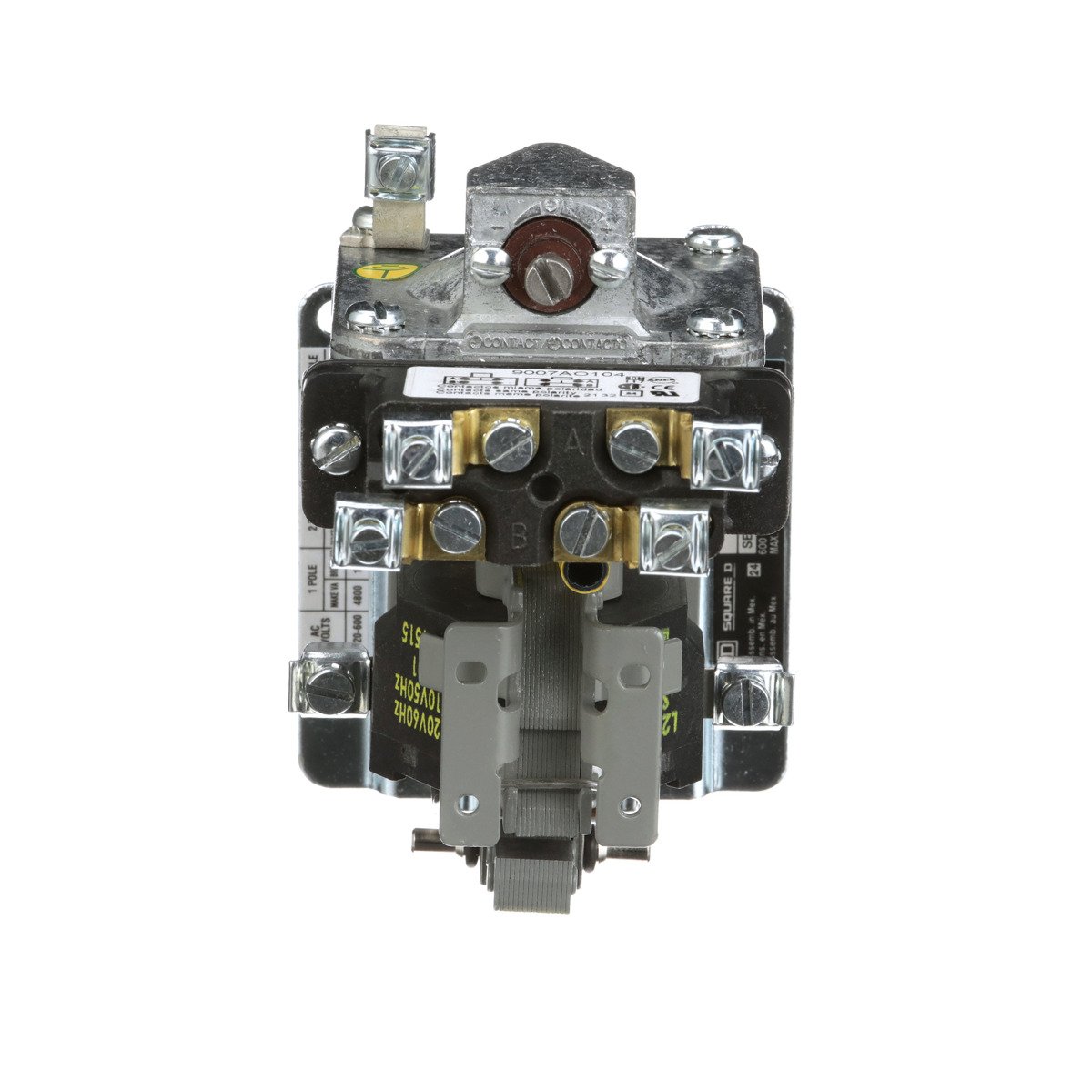

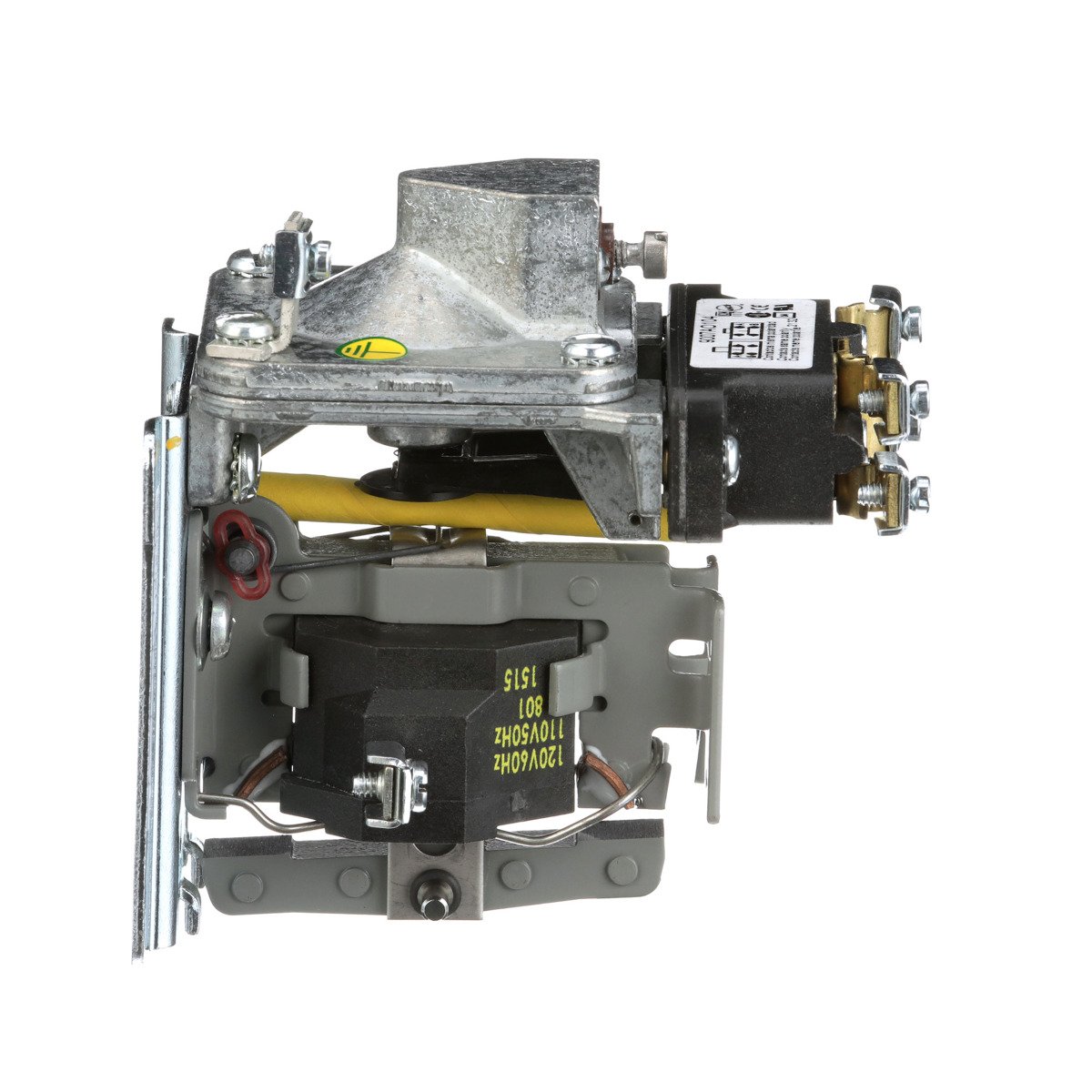

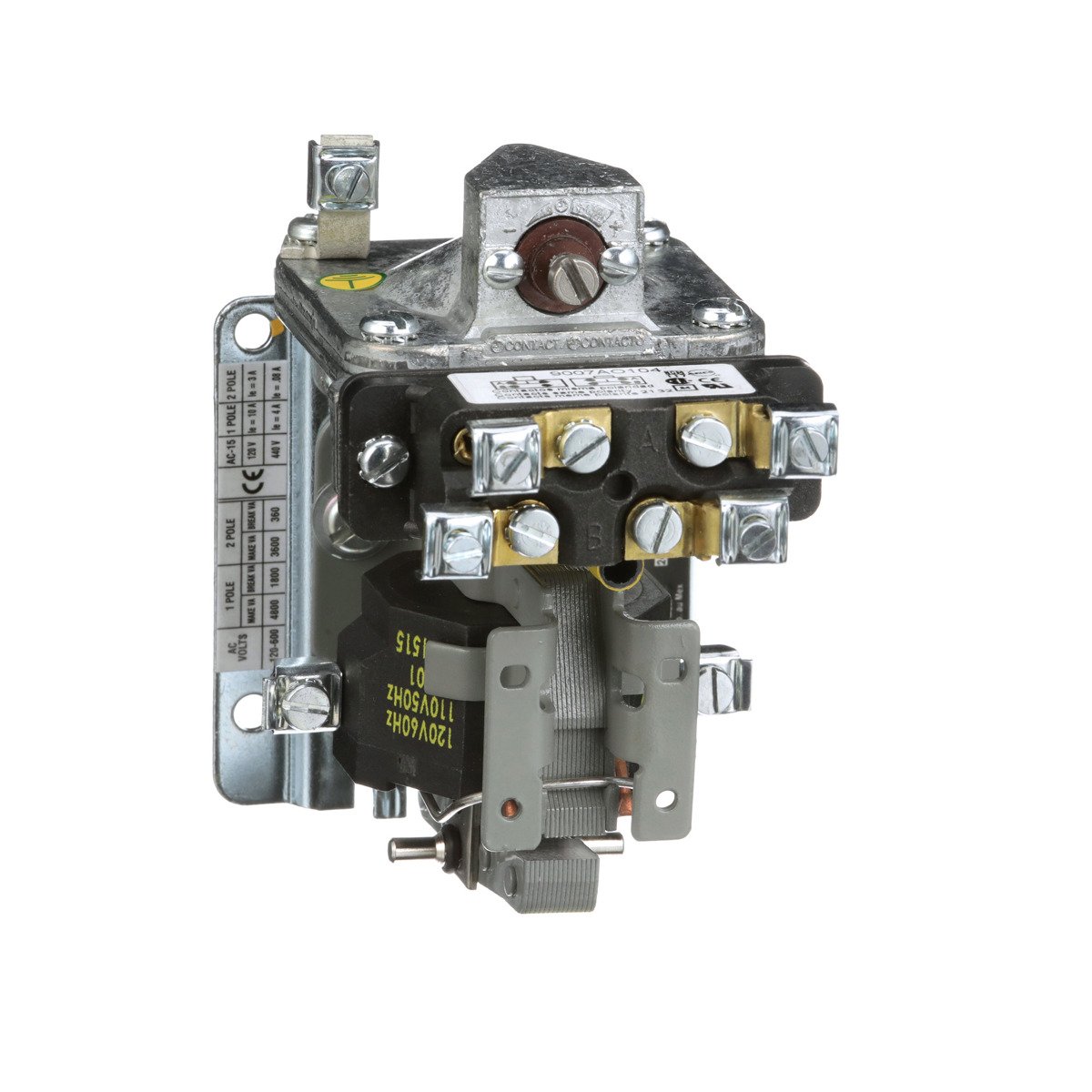

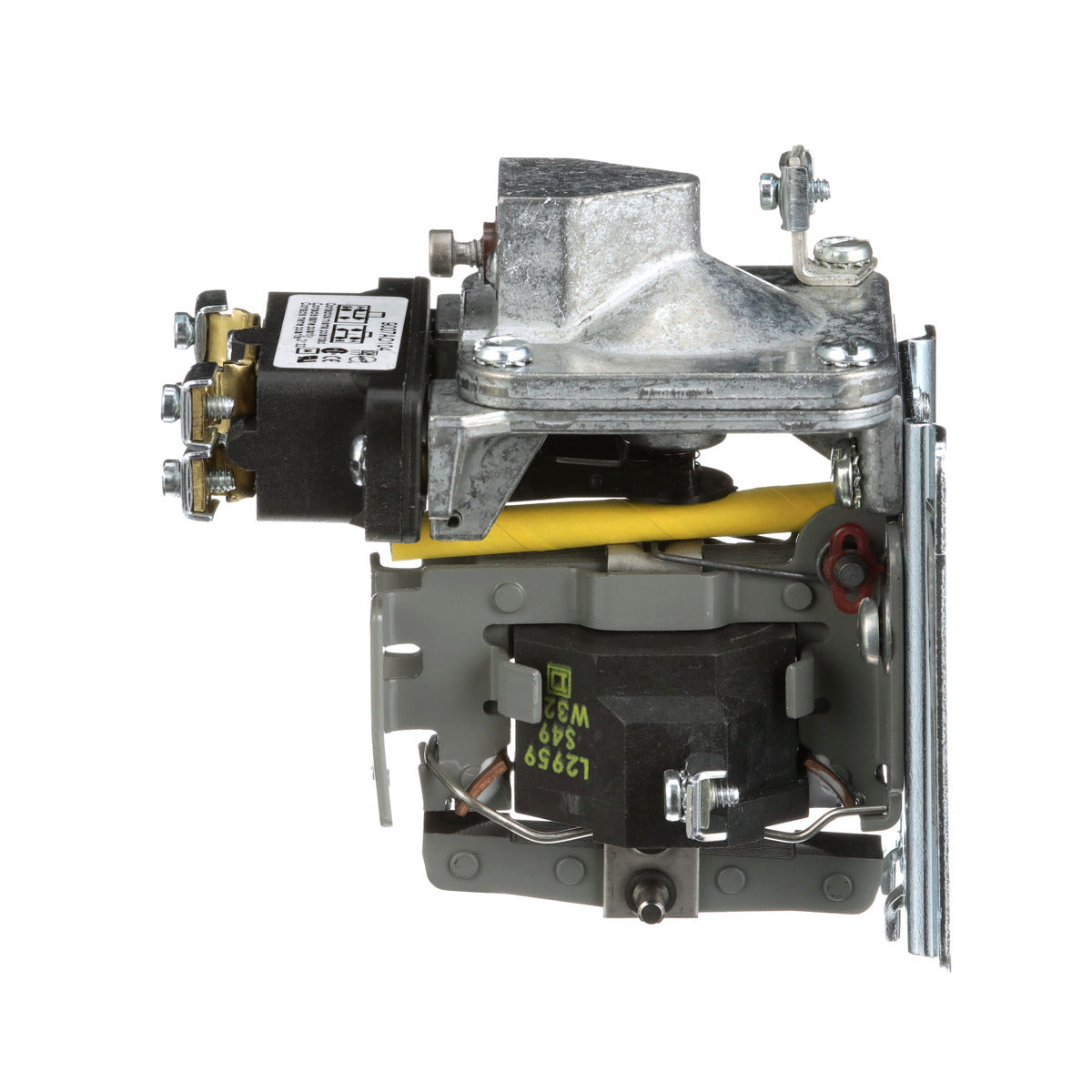

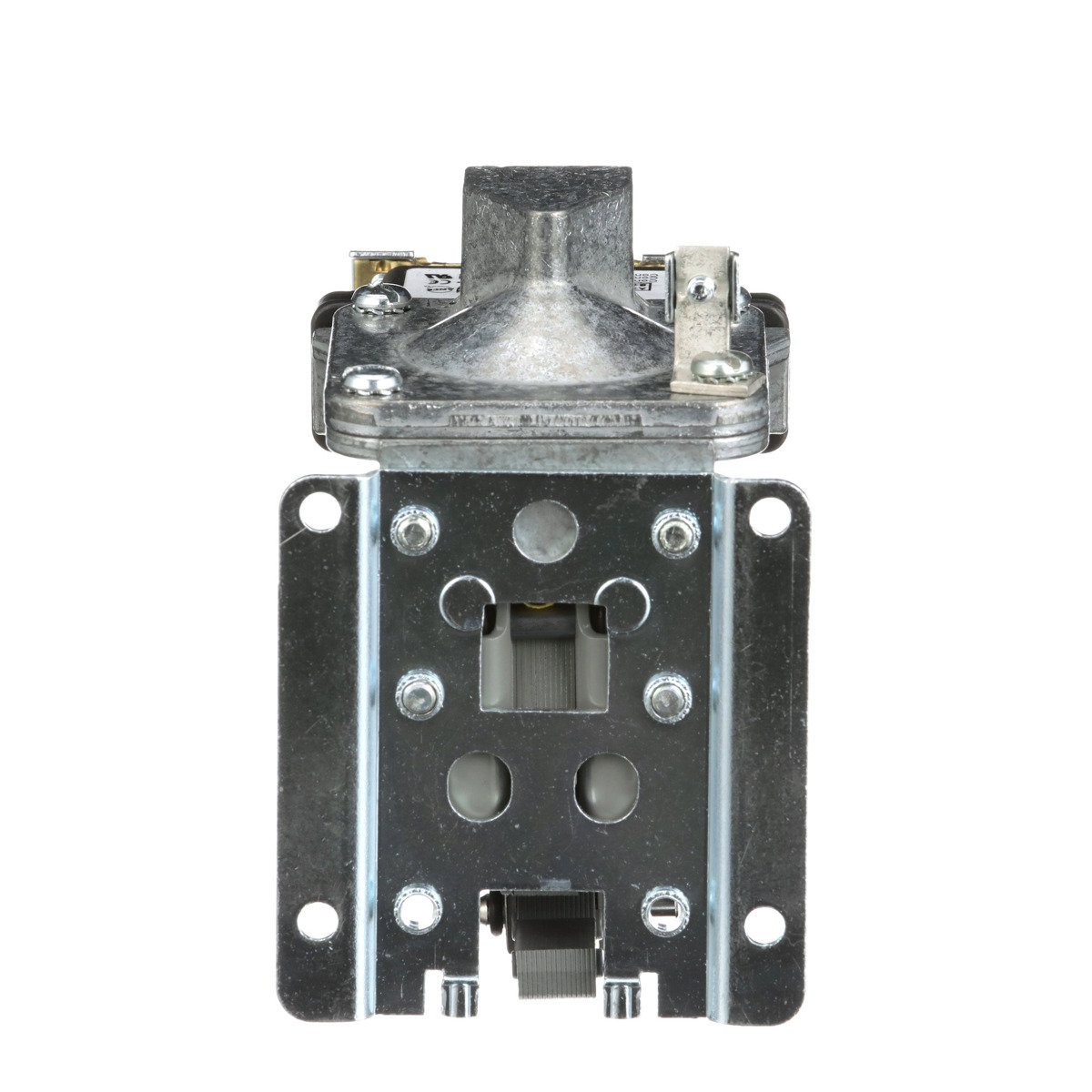

The SQUARE D 9050AO10EV06 is a pneumatic timing relay designed for rugged conditions. This off delay timer has a timing range of approximately one minute and can be converted from on delay to off delay. It features contacts with a 15A resistive rating at 600 VAC and a replaceable coil. The relay is UL listed and CSA certified.

• Convertible from on delay to off delay
• Contacts rated at 15A, 600 VAC
• UL listed and CSA certified

Product Highlights

The SQUARE D 9050AO10EV06 pneumatic timing relay is suitable for various industrial automation and control applications requiring precise timing.

Product Information

Standard Information

• Brand: SQUARE D
• Manufacturer Part Number: 9050AO10EV06
• Country of Origin: Mexico

Technical Specifications

• Type: Timer;SPDT
• Brand: Square D
• Current: 15 Amp
• Coil Voltage: 480 V AC 60 Hz;440 V AC 50 Hz
• TC Connection: Screw-clamp terminals
• Certifications: CSA,UL Listed
• Contact Rating: 15 A,600 V AC
• Line Rated Current: 15 A
• Contact Configuration: TIME DELAYED 1 NO + 1 NC
• Operating Temperature: 68-104 Adegrees F
• Catalog Number: 9050AO10EV06
• Manufacturer: Schneider Electric
• Country of Origin: United States
• Made in USA: Yes
• Timed Contact Configuration: 1NO-1NC
• Timing Range: 0.1 Sec to 1 Min
• Timing Mode: On Delay
• Terminal Type: Screw Clamp
• Mounting: Panel
• Approval: UL, CSA
• Contact Arrangement: SPDT
• Switch Function: SPDT
• Time Delay Type: on-delay
• Mounting Support: panel
• Time Delay Range: 0.1 s to 1 min
• Electrical Connection: screw-clamp terminals
• [Uc] Control Circuit Voltage: 480 V AC 60 Hz || 440 V AC 50 Hz
• Ambient Air Temperature For Operation: 68-104°F
• Category: Industrial Automation and Controls
• Time Delay Relays: Time Delay Relays
• Series: Square D
• Packaging: Box
• Part Status: Active
• Mounting Type: Chassis Mount
• Relay Type: Mechanical Relay
• Function: On-Delay
• Circuit: SPDT (1 Form C)
• Delay Time: 0.1 Sec ~ 1 Min
• Contact Rating @ Voltage: 15A @ 600VAC
• Voltage - Supply: 480VAC
• Termination Style: Screw Terminal
• Timing Adjustment Method: Screwdriver Slot
• Timing Initiate Method: Input Voltage
• Base Product Number: 9050A
• Standards: California Proposition 65
