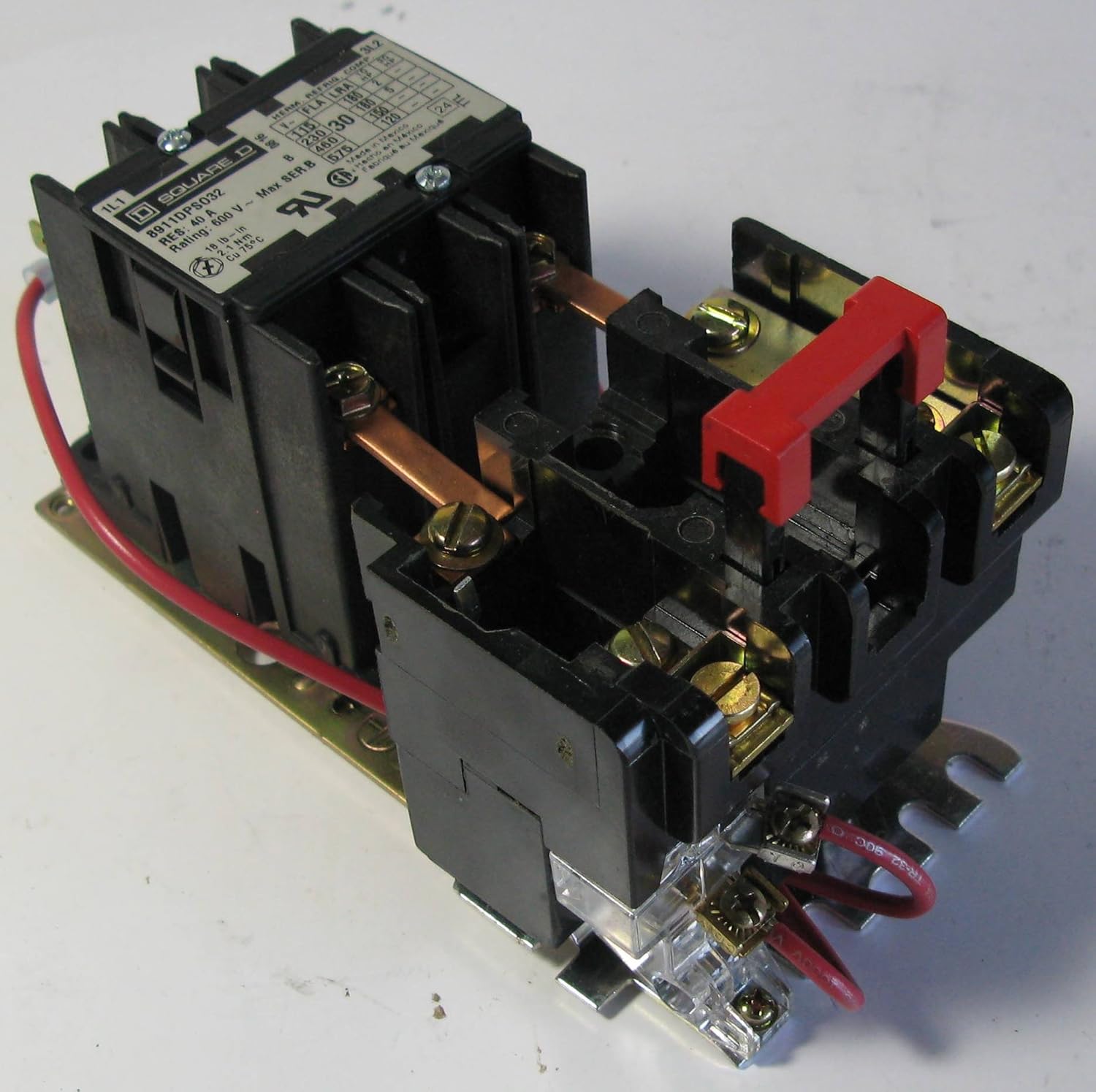

Schneider Electric 8911DPSO32V09 Definite Purpose Starter 208/240V 30A 5HP 1-Phase 2-Pole Open

Product Description

The Schneider Electric 8911DPSO32V09 is a robust definite purpose starter designed for efficiency and reliability. This 2-pole, 1-phase open type starter is rated at 30 amps and supports motors of up to 5 horsepower at 240VAC, making it suitable for a wide range of industrial applications.

• High capacity of 30 amps for heavy-duty use
• Supports 2 horsepower at 115VAC and 5 horsepower at 230VAC
• UL recognized ensuring safety and compliance

Product Highlights

Featuring a nonreversible action with a melting alloy overload block, the starter is engineered for maximum durability and minimal maintenance. Its coil voltage ranges from 208VAC to 240VAC, adaptable across various installations.

Product Information

Standard Information

• Brand: Schneider Electric
• Model: 8911DPSO32V09

Technical Specifications

• Type: Definite Purpose Starter
• Configuration: 1 Phase, 2 Pole
• Voltage: 208/240VAC
• Amperage: 30 Amp
• Product Dimensions: 7.9 inches height x 4.7 inches width x 4.8 inches depth
• HP Ratings: 2 HP at 115VAC, 5 HP at 230VAC
• Enclosure: Open type, no enclosure included
• Applications: Suitable for air compressors, agricultural equipment, pumps, and HVAC systems
• Country of Origin: USA
