Square D 9036GR1 Float Switch Dpst Nema 7 9 575 Vac

Product Description

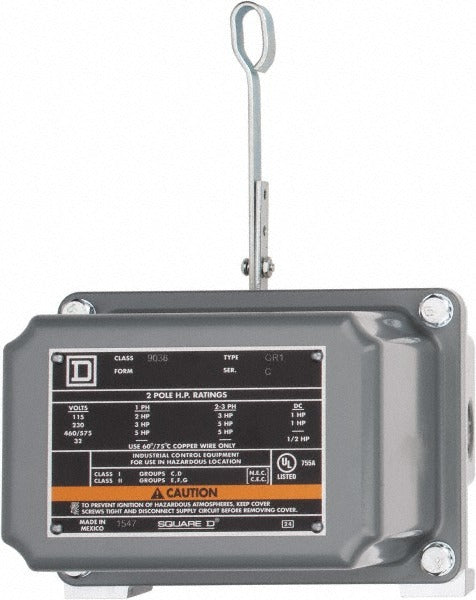

The SQUARE D 9036GR1 is a double-pole single-throw (DPST) float switch designed for pressure and level sensing applications in industrial and commercial environments. Rated for 575 VAC with a Line-Load-Load-Line terminal configuration, this switch is built to operate reliably in hazardous and demanding locations. It carries NEMA 7 and NEMA 9 enclosure ratings, making it suitable for use in environments where explosion-proof or dust-ignition-proof protection is required. Licensed electricians and industrial maintenance technicians install this switch as part of pump control, tank level monitoring, and fluid management systems.

The 9036GR1 is applied in residential, commercial, and industrial settings where float-actuated switching controls pumps, alarms, or other electrical loads based on fluid level. Its NEMA 7 and NEMA 9 ratings qualify it for use in classified hazardous locations, including areas with flammable gases or combustible dust. The Line-Load-Load-Line terminal layout supports straightforward wiring into existing control circuits. This switch is commonly used in sump, wastewater, chemical, and process fluid applications where reliable level detection is critical.

Key Features

• DPST contact form provides a clean make or break across two poles simultaneously
• NEMA 7 and NEMA 9 ratings qualify this switch for hazardous classified locations
• 575 VAC operating voltage accommodates higher-voltage industrial control circuits
• Line-Load-Load-Line terminal configuration simplifies field wiring
• Meets CE, CSA File LR26817, UL 508, and UL Listed File E12443 standards
• RoHS compliant construction

Compatibility

Designed as an OEM-style replacement float switch for industrial pressure and level control applications requiring NEMA 7 and NEMA 9 rated enclosures with DPST switching at 575 VAC.

Installation Notes
