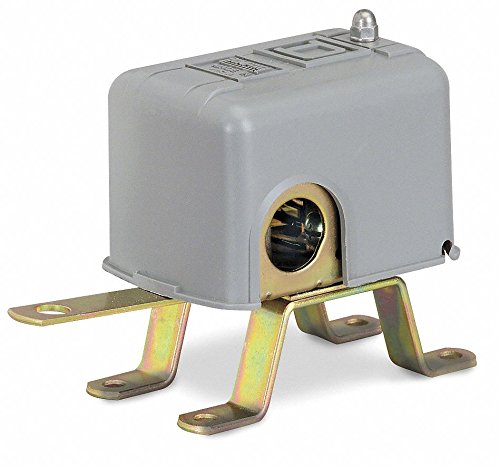

Schneider Electric 9036DG2R DPST 460VAC Open Liquid Level Switch

Product Description

The Schneider Electric 9036DG2R is an open liquid level switch designed to control small motor loads directly. Its efficient design allows for mechanically altering two pumps or motors by using a simple, positive means. It operates reliably in various industrial applications where liquid level control is crucial.

• 2-pole design for precise liquid level control
• Open on rise operation for optimal performance
• Durable construction for harsh environments

Product Highlights

The 9036DG2R float switch is engineered to operate in NEMA1 environments, ensuring reliable performance even in challenging conditions. Its compact design allows for easy installation in various equipment and systems.

Product Information

Standard Information

• Brand: Schneider Electric (Square D)
• Item Number: 9036DG2R

Technical Specifications

• Amps: 10 A
• Contact Form: DPST
• VA Rating: 460V AC
• Float Travel: 1.25 inches
• NEMA Rating: 1
• Operating Temp. Range: -22 Degrees to 220 Degrees F
• Switch Function: Open On Rise
• Overall Length: 7.1 inches
• Float Material: Stainless Steel
• Float Length: 7 inches
• Float Diameter: 7 inches
• Height: 4.27 inches
• Width: 2.53 inches
• Max. Current: 600 A
• Max. Voltage: 575 VAC
• HP @ 1 Phase - 120V: 2 hp
• HP @ 1 Phase - 240V: 3 hp
• HP @ 3 Phase - 240V: 5 hp
• Mounting: Open Tank
• Body Material: Steel
• Float Position: Below
• Conduit Size: 3.5 inches
• Standards: UL, CSA
• Electrical Connections: Screw Clamp
• Includes: Reverse Action - Does Not Include Float or Rod
