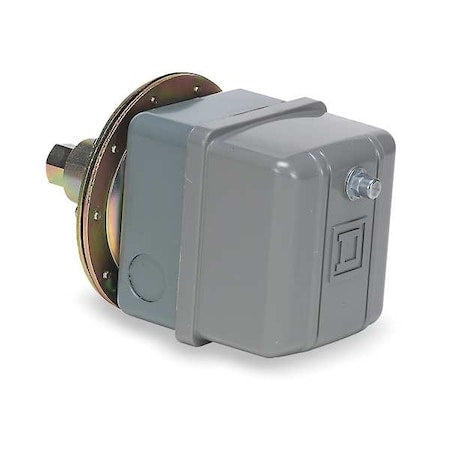

Square D 9016GVG1J09F Vacuum Switch Standard (Package of 1)

Product Description

This Square D Vacuum Switch, model 9016GVG1J09F, is designed for precise control in a variety of applications. Ideal for trade professionals involved in HVAC, electrical, and industrial processes.

• Range from 3 to 8 inHg with DPST-2NC contact form.
• Supports ambient temperatures from -10 degrees to 185 degrees Fahrenheit.
• Includes mounting bracket for easy installation.

Product Highlights

The switch features a standard action mechanism with a differential of 5 to 10 in Hg, providing reliable performance under varying conditions. It's equipped to handle media temperatures ranging from -14 degrees to 250 degrees Fahrenheit, making it versatile for use with different media types like air, water, and hydraulic oil.

Technical Specifications

• Series: 9013GVG
• Port Type: 1/4-18 in FNPS
• NEMA Rating: 1
• UL 508 Standards certified for safety and reliability.
• Dimensions: Height: 7.13 inches, Width: 4.58 inches, Depth: 4.69 inches
• Differential: 5 to 10 in Hg
• Motor Power Ratings: Varying configurations from 1 horsepower to 5 horsepower across different voltages and phases.
• Contacts: Snap action, silver cadmium contacts for durability.
