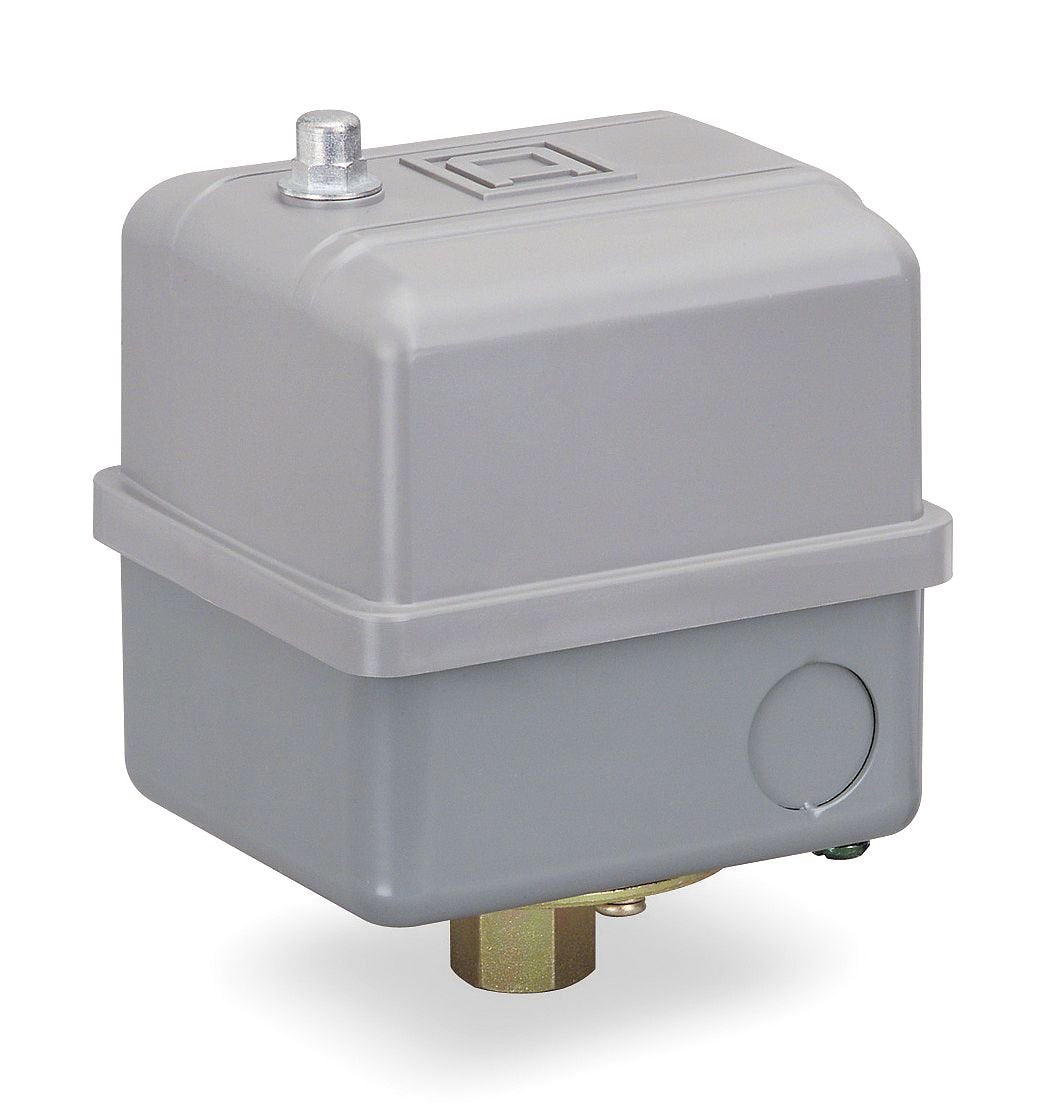

Square D 9013GHG2J63 Pressure Switch 145-175psi Single Port DPST

Product Description

The Square D model 9013GHG2J63 is a robust pressure switch designed primarily for air compressors and water pumps. This device facilitates the control of pressure levels within air systems.

• Operates with an on/off setting range of 145 to 175 psi.
• Designed for one-port systems with a 1/4 inch FNPS port type.
• Capable of handling 2 HP at 120V and up to 5 HP at 480V in various phase settings.

Product Highlights

This pressure switch is confirmed to meet a vast array of standards including UL 508 and CSA certification, making it a reliable choice for safety and compliance. It operates over a temperature range from -22 to 257 degrees Fahrenheit.

Product Information

Standard Information

• Brand: Square D
• MPN: 9013GHG2J63

Technical Specifications

• NEMA Rating: 1
• Pressure Range: 40 to 200 psi
• Electrical Contact Form: DPST
• Temperature Range: -22 to 257 degrees Fahrenheit
• Standards Met: UL 508, NEC Article 430-84, ANSI/NSF Standard 61, FDA 21CFR.2600, CSA Certified
