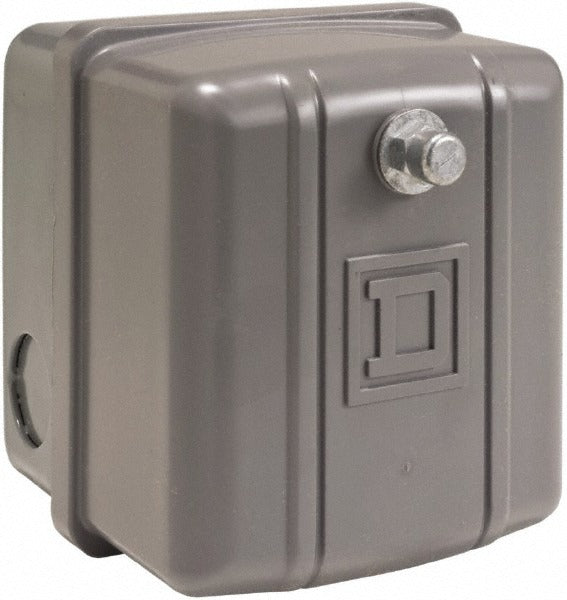

Square D 9013GHG2J53X Pressure Switch 100-125 Psi

Product Description

The SQUARE D 9013GHG2J53X is an electromechanical pressure switch rated for 100 to 125 psi cut-in and cut-out settings, designed for use with Square D Pumptrol pump control systems. It features an adjustable differential pressure range of 20 to 40 psi, giving installers flexibility to match system demand. The switch operates at up to 575 VAC and uses L1-T1 and L2-T2 terminal connections. A built-in 2-way pressure release valve is included. Licensed plumbers, pump system technicians, and water system installers use this switch in residential and light commercial pressure-controlled pumping applications.

This switch is built for pressure and level control in water pump systems where reliable cut-in and cut-out performance is required. It carries NEMA 1, 3R, 7, and 9 enclosure ratings, making it suitable for general indoor use, rain-protected outdoor locations, and hazardous environments classified for gas and dust. The Pumptrol designation identifies it as part of the Square D line of pump pressure controls, commonly installed on well pumps, booster pumps, and water pressure systems in both residential and light commercial settings.

Key Features

• Pressure range: 100 to 125 psi with adjustable differential from 20 to 40 psi
• NEMA 1, 3R, 7, and 9 enclosure ratings for versatile environmental suitability
• 575 VAC maximum operating voltage with L1-T1 and L2-T2 terminal configuration
• Includes integrated 2-way pressure release valve
• Meets CE, CSA LR25490, NSF/ANSI 372, RoHS, UL 508, and UL Listed File E12158 standards

Compatibility

Designed for use with Square D Pumptrol pump pressure control systems. Verify system voltage, pressure range, and differential requirements before installation.

Installation Notes

Installation should be performed by a licensed plumber or qualified pump system technician. Shut off power to the pump circuit and relieve system pressure before removing or installing any pressure switch. Follow applicable local codes and the NEC for electrical connections. Do not exceed the rated maximum pressure or voltage specifications of the switch.
