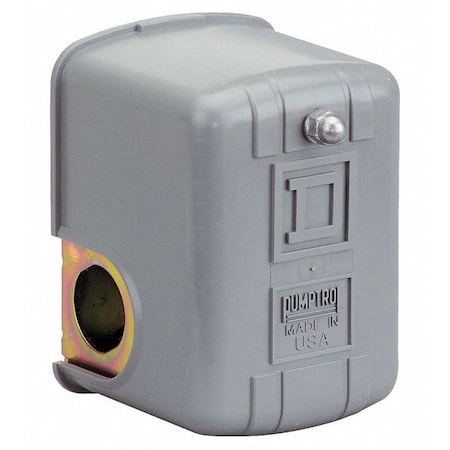

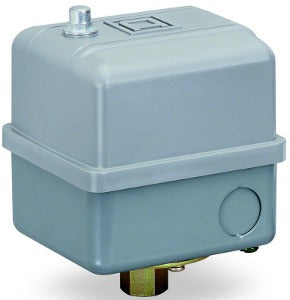

Square D 9013GHG2J29 Pressure Switch 40/200 psi DPST 75 On 100 Off

Product Description

The Square D 9013GHG2J29 Pressure Switch is a versatile tool for regulating air compressor and water pump systems. With a pressure range of 40 to 200 psi and a DPST contact form, it ensures reliable performance in various industrial and commercial applications.

• 40 to 200 psi pressure range
• DPST contact form
• 75 psi on, 100 psi off settings

Product Highlights

This Square D pressure switch is designed for precision and reliability, featuring an adjustable differential scale and durable construction materials. It is suitable for use in HVAC systems, industrial automation, and electrical control environments.

Product Information

Standard Information

• Brand: Schneider Electric (Square D)
• Item Number: 9013GHG2J29
• Type: Electromechanical Pressure Switch
• Series: 9013GHG

Technical Specifications

• Material: Polypropylene cover; Noryl Thermoplastic Resin cover
• IP Rating: IP20 (IEC 60529)
• Standards: ANSI/NSF Standard 61, CSA Certified, FDA 21CFR.2600, NEC Article 430-84, UL 508
• NEMA Rating: 1
• Temp Range: -22 degrees to 257 degrees F
• Circuit Type: Power Circuit
• Differential: Adjustable Differential Scale
• Actuation Type: Diaphragm
• Burst Pressure: 300 psi
• Special Features: Nitrile (Buna-N) Diaphragm
• AC Contact Rating: 10A at 575V
• HP at 1 Phase - 120V: 2 hp
• HP at 1 Phase - 230V: 3 hp
• HP at 1 Phase - 240V: 3 hp
• HP at 3 Phase - 240V: 5 hp
• HP at 3 Phase - 480V: 5 hp
• Manual Switch Action: None
• Electrical Connection: Screw-Clamp Terminals
• Pressure Switch Range: 40 to 200 psi
• Pressure Switch Action: Standard
• Pressure Switch Unloader: No
• Pressure Switch Port Type: (1) Port, 1/4 in FNPS
• Pressure Switch Application: Air Compressor and Water Pump
• Pressure Switch Differential: 20 to 40 psi
• Pressure Switch Factory On/Off Setting: 75/100 psi
• Pressure Switch Electrical Contact Form: DPST
• Country of Origin: Mexico
