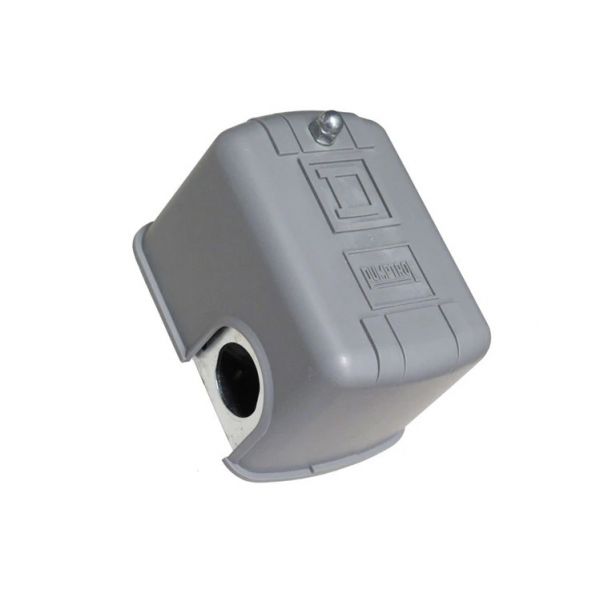

Square D 9013FSG42J16 Pressure Switch 575VAC 1HP F + Options

Product Description

The Square D 9013FSG42J16 is an electromechanical pressure switch designed for various applications. It operates at a voltage of five hundred seventy-five volts AC and can manage one horsepower. This switch features options for adjustable differential settings ranging from three to ten psi and offers robust performance in controlling electrically driven water pumps.

• General purpose indoor use with NEMA 1 enclosure
• Durable construction with Noryl material
• Adjustable differential settings for precise control

Product Highlights

This pressure switch is suitable for diverse HVAC and pump applications. It is UL listed and CSA certified, ensuring safety and reliability.

Product Information

Standard Information

• Catalog Number: 9013FSG42J16
• Brand: Square D

Technical Specifications

• Voltage: 575VAC
• Horsepower: 1HP
• Contact Configuration: 2 NC, SNAP ACTION, DPST-DB, FORM YY
• Operating Cycles: 10 cyc/min
• Operating Temperature: -33 to 257 degrees F
• Enclosure: NEMA 1 UL 50
• Country of Origin: Mexico
• UPC: 785901689805
