Square D 9013FRG2J23M5 Pressure Switch 20-40 Psi

Product Description

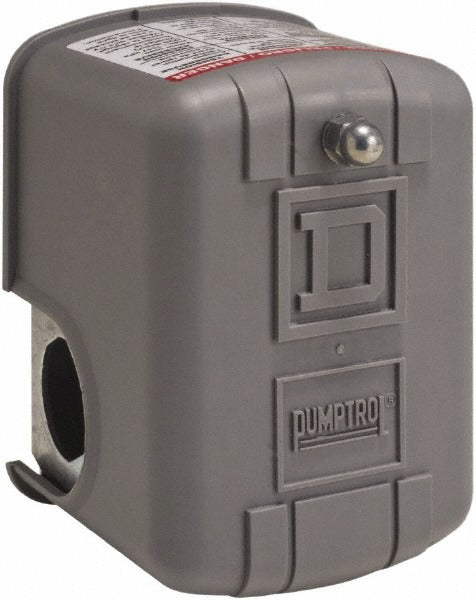

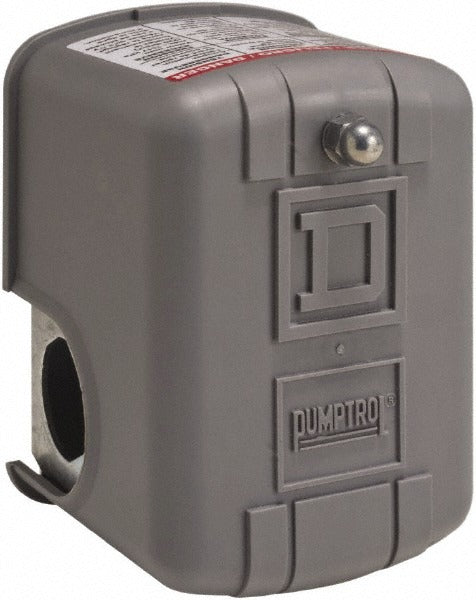

The SQUARE D 9013FRG2J23M5 is an electromechanical pressure and level switch rated for 20 to 40 psi with an adjustable differential pressure range of 15 to 30 psi. Designed for use with Square D Pumptrol pump control systems, it operates at 230 VAC and uses L1-T1 and L2-T2 terminal connections. The switch includes a maintained manual cut-in lever for auto-on operation, giving service technicians direct control during startup and testing. It carries NEMA 1 and 3R enclosure ratings, making it suitable for both indoor and protected outdoor installations. Licensed plumbers and pump system technicians are the primary installers for this type of control.

This pressure switch is intended for residential and light commercial water pump applications where reliable cut-in and cut-out pressure control is required. It is specifically listed for use with Square D Pumptrol pump control assemblies. The adjustable differential feature allows technicians to fine-tune the pressure band to match system demand, which is useful in well pump installations and pressurized water supply systems. NEMA 3R rating permits installation in locations subject to falling rain and sleet, expanding its range of suitable mounting environments.

Key Features

• Pressure range of 20 to 40 psi with adjustable differential from 15 to 30 psi
• NEMA 1 and 3R rated enclosure for indoor and protected outdoor use
• 230 VAC operating voltage with L1-T1 and L2-T2 terminal configuration
• Includes maintained manual cut-in lever for auto-on control during service
• Meets CE, CSA File LR25490, NSF/ANSI 61 Annex G, RoHS, UL 508, and UL Listed File E12158 standards
• Designed for use with Square D Pumptrol pump control systems

Compatibility

Designed for use with Square D Pumptrol pump control systems as stated by the manufacturer.

Installation Notes

Installation should be performed by a licensed plumber or pump system technician. Disconnect and lock out power to the pump system before removing the existing switch or making any wiring connections. Verify that the system pressure is fully relieved before disconnecting any plumbing fittings. Consult applicable local codes and the NEC for proper wiring practices at 230 VAC.
