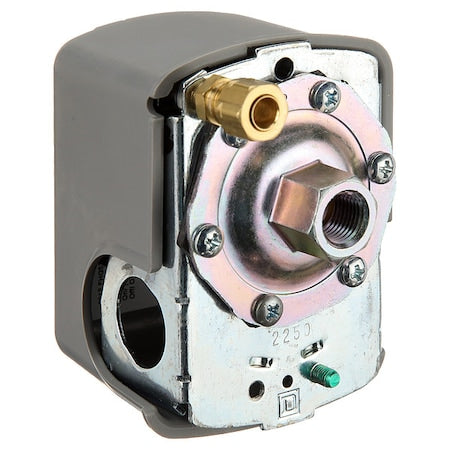

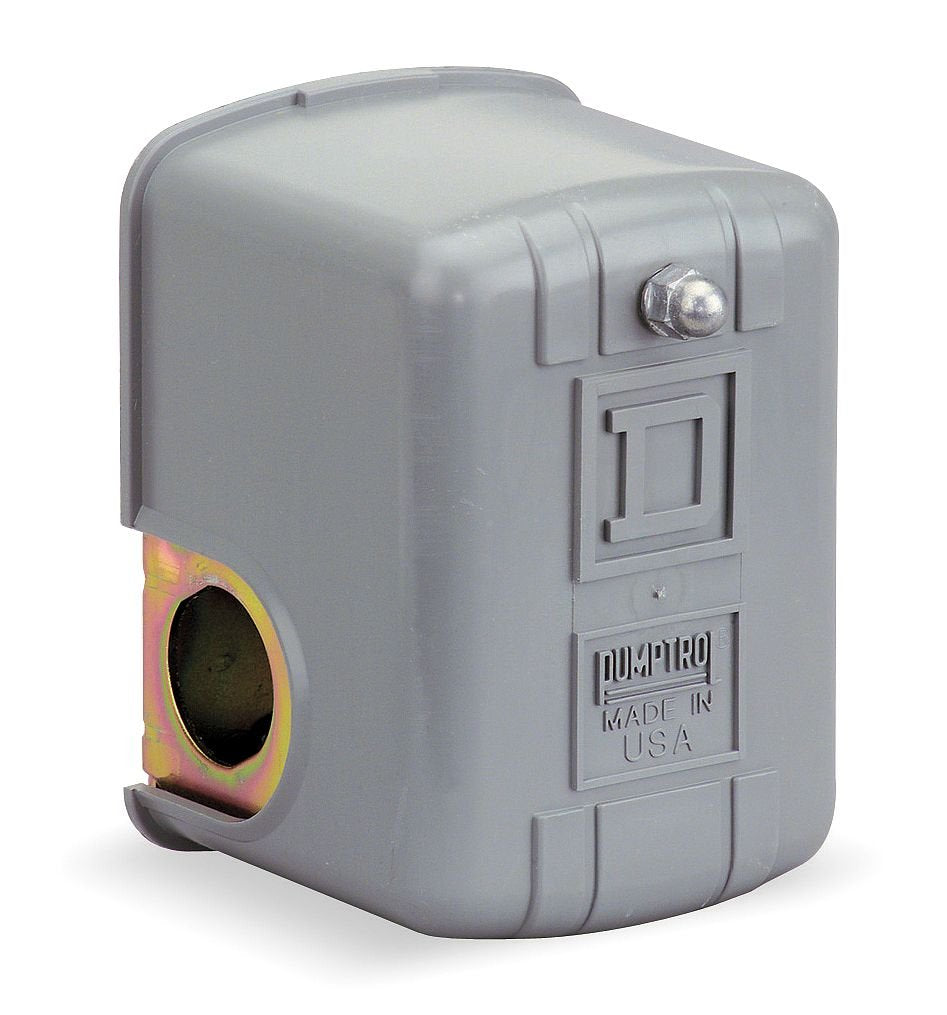

Square D 9013FHG52J59X Pressure Switch 60 to 200 psi (1 Port, 1/4 in FNPS) Replacement MPN

Product Description

Square D 9013FHG52J59X is a pressure switch designed for air compressors. This device controls the pressure within the system, operating within a range of sixty to two hundred psi. It features a single port with a quarter-inch FNPS connection.

• Pressure switch acts as an on/off control with factory settings at 135 psi on and 175 psi off.
• Equipped with a fixed differential of forty psi for consistent performance.
• Meets NEMA rating 1 for indoor use and is suited for various air compressor applications.

Product Highlights

This pressure switch is essential for managing air compressor operations, ensuring safety and efficiency in pressure control.

Product Information

Standard Information

• Type: Electromechanical Pressure Switch
• Application: Air Compressor

Technical Specifications

• Series: 9013FHG
• Material: Polypropylene Cover; Noryl Thermoplastic Resin Cover
• IP Rating: IP20 (IEC 60529)
• Standards: ANSI / NSF Standard 61, CSA Certified, FDA 21CFR.2600
• Temp. Range: Negative twenty-two degrees to two hundred fifty-seven degrees Fahrenheit
• Circuit Type: Power Circuit
• Differential: Fixed Differential Scale
• Actuation Type: Diaphragm
• Electrical Connection: Screw-Clamp Terminals
• Burst Pressure: 220 psi
• HP @ 1 Phase - 120V: 2 hp
• HP @ 1 Phase - 240V: 3 hp
• HP @ 3 Phase - 240V: 5 hp
• HP @ 3 Phase - 480V: 1 hp
• Pressure Switch Range: 60 to 200 psi
• Pressure Switch Action: Standard
• Pressure Switch Unloader: 1/4 in Compression
• Country of Origin: Mexico
