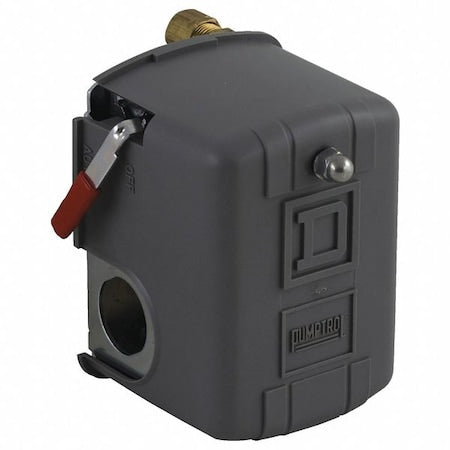

Square D 9013FHG2J27M1X Pressure Switch 20-100 psi 1/4 in FNPS DPST

Product Description

The Square D 9013FHG2J27M1X Pressure Switch by Schneider Electric is designed for air compressors. This pressure switch features a 1/4 inch FNPS port and a DPST electrical contact form. It operates within a 20 to 100 psi range, with a factory on/off setting of 80/100 psi.

• Designed for air compressors
• 1/4 inch FNPS port
• 20 to 100 psi range

Product Highlights

This pressure switch from Square D provides reliable performance for air compressor systems. With a pressure range of 20 to 100 psi and a durable construction, it is ideal for various industrial applications.

Product Information

Standard Information

• Product Type: Pressure Switch
• Material: Polypropylene Cover; Noryl Thermoplastic Resin Cover

Technical Specifications

• Series: 9013FHG
• IP Rating: IP20 (IEC 60529)
• Standards: ANSI/NSF Standard 61, CSA Certified, FDA 21CFR.2600, NEC Article 430-84, UL 508
• NEMA Rating: 1
• Temperature Range: -22 to 257 Degrees F
• Circuit Type: Power Circuit
• Differential: Fixed Differential Scale
• Burst Pressure: 220 psi
• Special Features: Nitrile (Buna-N) Diaphragm
• AC Contact Rating: 10A @ 575V
• HP @ 1 Phase - 120V: 1 1/2 hp
• HP @ 1 Phase - 230V: 2
• HP @ 1 Phase - 240V: 2 hp
• HP @ 3 Phase - 240V: 3 hp
• HP @ 3 Phase - 480V: 1 hp
• Manual Switch Action: Auto/Off
• Electrical Connection: Screw-Clamp Terminals
• Pressure Switch Range: 20 to 100 psi
• Pressure Switch Action: Standard
• Pressure Switch Unloader: 1/4 in Compression
• Pressure Switch Port Type: (1) Port, 1/4 in FNPS
• Pressure Switch Application: Air Compressor
• Pressure Switch Differential: 20 psi
• Country of Origin: Mexico
• Pressure Switch Factory On/Off Setting: 80/100 psi
• Pressure Switch Electrical Contact Form: DPST
