Square D 9012GNG6 Pressure Switch 5-250 Psig Spdt

Product Description

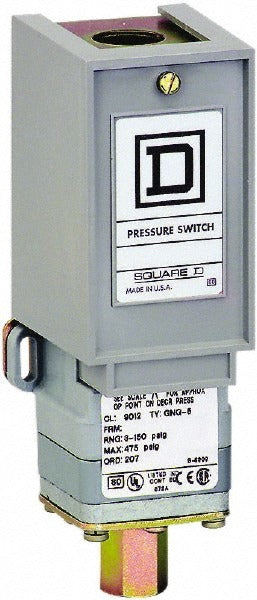

The SQUARE D 9012GNG6 is an electromechanical pressure and level switch designed for industrial and commercial fluid-power applications. It operates across a range of 5 to 250 psig with a single-pole double-throw (SPDT) contact form, making it suitable for both monitoring and control duties. The switch supports multiple voltage ratings including 120 VAC, 240 VAC, 125 VDC, and 250 VDC, with a 6-amp contact rating. Differential pressure is user-adjustable, with a minimum differential of 7.4 psi and a maximum of 56 psi. Connections include a 1/4-inch fluid port and a 1/2-inch conduit entry with screw terminal wiring. The unit carries a NEMA 1 enclosure rating and is built with vibration-resistant construction.

The 9012GNG6 is intended for use in hydraulic and pneumatic systems where reliable pressure sensing and switching is required. Typical installations include compressor control circuits, hydraulic power unit interlocks, and pressure-monitoring loops in industrial machinery. The adjustable differential pressure setting allows technicians to tune the switch to specific system requirements without replacing the unit. The screw terminal connections and standard conduit entry simplify field wiring for both new installations and retrofit applications.

Key Features

• Adjustable pressure range from 5 to 250 psig for flexible system setpoint configuration
• SPDT contact form supports both normally open and normally closed circuit topologies
• Adjustable differential pressure from 7.4 psi minimum to 56 psi maximum
• Multi-voltage rated: 120 VAC, 240 VAC, 125 VDC, 250 VDC at 6 amps
• Vibration-resistant design suitable for demanding mechanical environments
• Meets CE, CSA C22.2 No. 14, IEC 58-2-27, IEC 68-2-6, RoHS, and UL 508 standards

Compatibility

Designed for use with hydraulic systems and pneumatic systems requiring electromechanical pressure switching within the 5 to 250 psig operating range.
