Square D 9012GNG3 Pressure Switch 1-40 Psig Spdt

Product Description

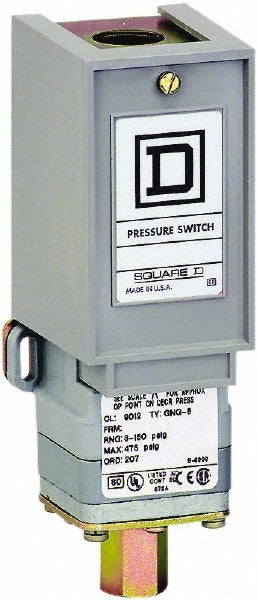

The SQUARE D 9012GNG3 is an electromechanical pressure and level switch designed for industrial and commercial fluid control applications. It features a single-pole double-throw (SPDT) contact form with an adjustable pressure range of 1 to 40 psig, making it suitable for a wide range of system setpoints. The switch operates on 120 VAC, 240 VAC, 125 VDC, and 250 VDC circuits and is rated at 6 amps. Its screw terminal connections and 1/4-inch fluid connection port allow for straightforward field wiring and plumbing integration. The unit carries a NEMA 1 enclosure rating and meets multiple agency standards including UL 508, CSA C22.2 No. 14, and CE.

The 9012GNG3 is built for use in hydraulic and pneumatic systems where reliable pressure sensing and switching is required. Typical applications include compressor control, pump protection, and pressure monitoring in light industrial, mechanical room, and process equipment installations. The adjustable differential pressure range of 1.2 to 6 psi allows technicians to fine-tune the switch response to match system requirements. Its vibration-resistant construction makes it a practical choice for installations subject to mechanical vibration from pumps, compressors, or mobile equipment.

Key Features

• Adjustable pressure range from 1 to 40 psig with SPDT contact output
• Adjustable differential pressure between 1.2 psi minimum and 6 psi maximum
• Compatible with 120 VAC, 240 VAC, 125 VDC, and 250 VDC circuits at 6 amps
• Vibration-resistant construction rated to IEC 58-2-27 and IEC 68-2-6
• 1/4-inch fluid connection port and 1/2-inch conduit entry with screw terminal wiring
• Multi-certification compliance: UL 508, CSA C22.2 No. 14, CE, RoHS

Compatibility

Designed for use with hydraulic systems and pneumatic systems as stated by the manufacturer. Suitable for applications requiring electromechanical pressure switching within the 1 to 40 psig operating range.

Installation Notes

Installation should be performed by a qualified electrician or instrumentation technician in accordance with the NEC and applicable local codes. De-energize the circuit and depressurize the connected system fully before making fluid or electrical connections. Use the 1/2-inch conduit entry with appropriate fittings to maintain enclosure integrity. Verify the adjusted setpoint and differential against system design requirements before returning the system to service.
