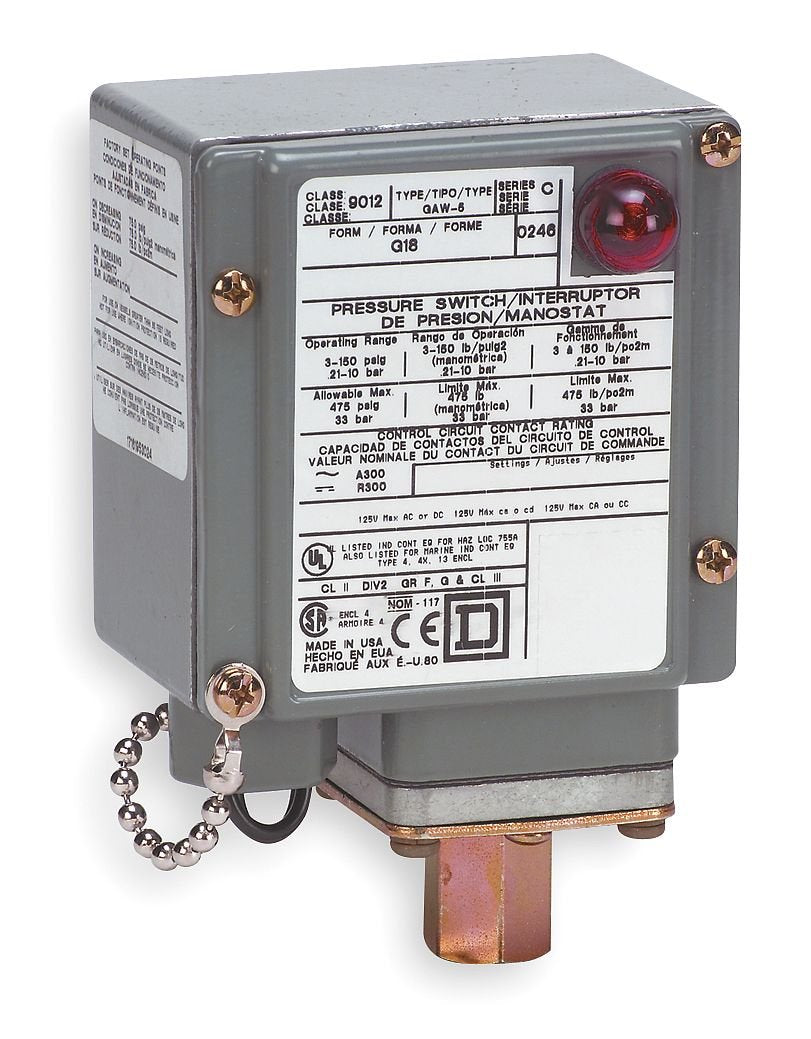

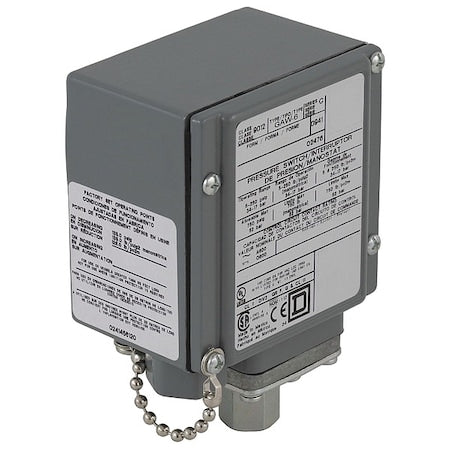

Square D 9012GAW6 SPDT Pressure Switch 5-250 PSI

Product Description

The Square D 9012GAW6 Pressure Switch is expertly engineered for reliability in various industrial applications, including HVAC, compressors, and pump systems. This pressure switch facilitates precise control with a differential from 10 to 49 psi and a wide adjustable range from 5 to 250 psi.

• Robust diaphragm actuation type ensures long-term durability and performance.
• Features SPDT contact form and a port of 1/4-18 inches FNPT.
• Supports pressures up to 750 psi with a maximum voltage capacity of 480 volts.

Product Highlights

Constructed from die-cast aluminium alloy to offer enhanced corrosion resistance and durability. Ideal for demanding environments with a NEMA rating of 4, 4X, 13, ensuring protection against dust, water, and corrosion.

Product Information

Standard Information

• Brand: Square D
• MPN: 9012GAW6

Technical Specifications

• Pressure Range: 5 to 250 psi
• Actuation Type: Diaphragm
• Contact Form: SPDT
• NEMA Rating: 4, 4X, 13
• Maximum Pressure: 750 psi
• Port Type: 1/4-18 in FNPT
• Electrical Connection: Screw-Clamp Terminals
• Country of Origin: Mexico
