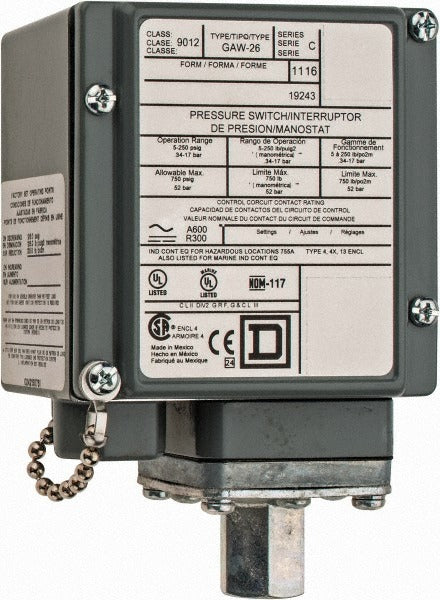

Square D 9012GAW26 Pressure Switch 5-250 Psig Dpdt

Product Description

The SQUARE D 9012GAW26 is an electromechanical pressure and level switch designed for industrial hydraulic and pneumatic systems. It operates across a pressure range of 5 to 250 psig with an adjustable differential pressure setting between 10 and 49 psi. The switch uses a double-pole, double-throw (DPDT) contact form with screw terminal connections and is rated for 120 VAC, 240 VAC, 125 VDC, and 250 VDC service at 6 amps. Fluid connection is 1/4 inch and conduit entry is 1/2 inch. Licensed electricians and industrial maintenance technicians are the primary installers for this type of device.

This switch is suited for hydraulic and pneumatic control circuits in commercial and industrial applications where pressure monitoring and automatic switching are required. Its vibration-resistant construction makes it appropriate for equipment subject to mechanical shock or continuous vibration. The NEMA 4, 13, and 4X enclosure ratings allow installation in environments exposed to dust, oil, and non-corrosive liquid ingress, including washdown-rated locations. The adjustable differential allows technicians to fine-tune the switch setpoint to match system requirements without replacing the unit.

Key Features

• Pressure range: 5 to 250 psig with adjustable differential (10 to 49 psi)
• DPDT contact form with screw terminal wiring connections
• Rated for 120 VAC, 240 VAC, 125 VDC, and 250 VDC at 6 amps
• NEMA 4, 13, and 4X enclosure ratings for dust and liquid protection
• Vibration-resistant design per IEC 58-2-27 and IEC 68-2-6
• Certified to UL 508, CSA C22.2 No. 14, CE, and RoHS Compliant

Compatibility

Designed for use with hydraulic systems and pneumatic systems requiring electromechanical pressure switching with DPDT output and adjustable differential pressure control.

Installation Notes

Installation should be performed by a qualified electrician or industrial maintenance technician in accordance with NEC requirements and local codes. De-energize the circuit and depressurize the system fully before connecting or disconnecting the switch. Use appropriately rated conduit and fittings at the 1/2 inch conduit entry to maintain the NEMA enclosure rating. Verify fluid compatibility and pressure range alignment with system operating conditions before placing the switch in service.
