Square D 9012GAW25 Pressure Switch Dpdt 3-150 Psig

Product Description

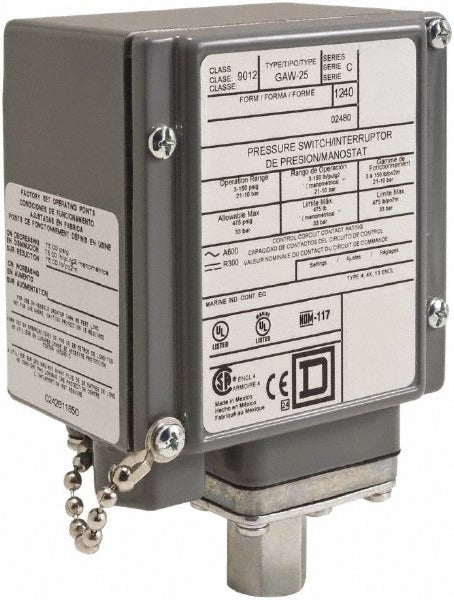

The SQUARE D 9012GAW25 is an electromechanical pressure and level switch designed for industrial and commercial fluid control applications. It features a DPDT contact form with screw terminal connections and covers a pressure range of 3 to 150 psig with an adjustable differential. Rated for 6 amps and compatible with 120 VAC, 125 VDC, 240 VAC, and 250 VDC circuits, this switch handles both AC and DC control voltage requirements. The unit carries NEMA 4, 4X, and 13 enclosure ratings, making it suitable for environments exposed to dust, oil, and washdown conditions. Its vibration-resistant construction supports reliable operation in demanding mechanical environments. Licensed electricians and industrial control technicians are the primary installers of this device.

The 9012GAW25 is built for use with hydraulic and pneumatic systems where pressure monitoring and switching is required. It accepts a 1/4-inch fluid connection and a 1/2-inch conduit connector, fitting standard pipe and conduit configurations found in industrial machinery, process equipment, and fluid power systems. The adjustable differential pressure range of 6 to 30 psi allows field calibration to match specific system setpoints. This switch suits both OEM panel builds and field replacement installations across a broad range of industrial control applications.

Key Features

• DPDT contact form supports versatile switching configurations in control circuits
• Adjustable differential pressure from 6 to 30 psi for field-set calibration
• NEMA 4, 4X, and 13 ratings provide protection against dust, oil mist, and washdown
• Compatible with 120 VAC, 240 VAC, 125 VDC, and 250 VDC control circuits at 6 amps
• Vibration-resistant design for reliable performance in high-vibration environments
• Screw terminal connections for secure, tool-accessible field wiring

Compatibility

Designed for use with hydraulic and pneumatic systems requiring electromechanical pressure switching across a 3 to 150 psig operating range.

Installation Notes

Installation should be performed by a licensed electrician or qualified industrial control technician in accordance with NEC guidelines and applicable local codes. De-energize all control circuits and depressurize the connected fluid system completely before beginning installation or servicing. Use appropriately rated conduit and fittings for the 1/2-inch conduit entry to maintain enclosure integrity. Verify system pressure and voltage are within the rated limits of the switch before restoring power and pressure.
