Square D 9007TUB5 Limit Switch Spdt Rotary Spring Return 600V

Product Description

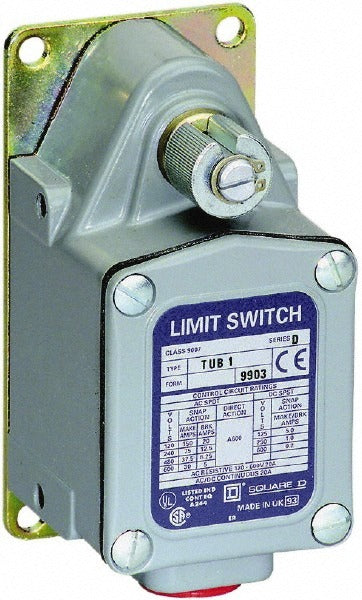

The SQUARE D 9007TUB5 is a general purpose limit switch designed for industrial position-sensing and machine control applications. It uses a rotary spring-return actuator mounted on the side of the zinc body, with screw terminals and a 1/2 inch NPT conduit connection. The switch operates in an SPDT contact configuration at up to 600 volts AC, making it suitable for controlling motor circuits, conveyor systems, and other automated machinery. Rated IP67 for dust-tight and temporary immersion protection, it holds NEMA ratings of 1, 2, 4, 12, and 13. Licensed electricians and industrial maintenance technicians are the primary installers.

The 9007TUB5 fits industrial and commercial environments where rotary-actuated position feedback is required. Typical applications include conveyor end-of-travel detection, door and gate position sensing, and machine tool guarding. The side-mounted actuator location suits installations where the actuator arm must contact a cam or striker from the side of the switch body. The 14-degree travel range and spring-return action provide consistent, repeatable switching with automatic reset once the actuator is released.

Key Features

• SPDT contact form supports both normally open and normally closed circuit configurations
• Rotary spring-return actuator with 14-degree travel for precise, repeatable position detection
• IP67 ingress protection rating — dust-tight and protected against temporary immersion
• NEMA ratings 1, 2, 4, 12, and 13 for use in wet, oily, and dust-laden environments
• 1/2 inch NPT conduit entry with side screw terminals for standard industrial wiring
• Zinc body construction for durability in demanding service conditions
• RoHS compliant and tested to IEC 60068-2-27, IEC 60068-2-6, IEC 60529, IEC 61140, and IEC 61140 standards

Compatibility

Designed as an OEM-style replacement or new-installation limit switch for industrial control panels and machine tool applications requiring a side-mounted rotary spring-return SPDT switch with 1/2 inch NPT conduit entry and 600V AC rating.

Installation Notes

Installation should be performed by a qualified electrician in accordance with the National Electrical Code (NEC) and applicable local codes. De-energize and lock out the circuit before wiring or mounting the switch. The 1/2 inch NPT conduit connection should be sealed with appropriate fittings to maintain the IP67 rating in wet or wash-down locations. Verify actuator travel alignment with the cam or striker during installation to stay within the rated 14-degree travel range.
