Square D 9007TUB4M12 Limit Switch Spdt 600V Ac IP67

Product Description

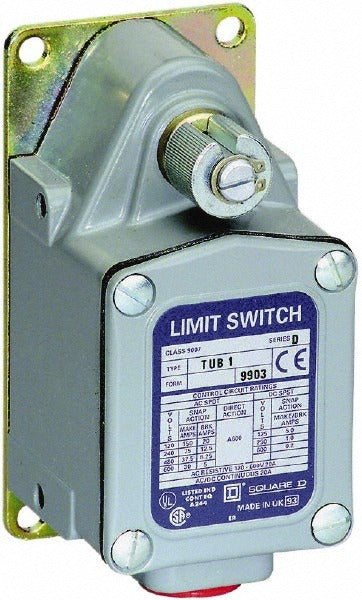

The SQUARE D 9007TUB4M12 is a general purpose limit switch designed for industrial position-sensing and machine-control applications. It features a single-pole double-throw (SPDT) contact form with a rotary spring-return actuator mounted on the side of the body. The actuator travel is 6 degrees, and the switch is rated for up to 600 volts AC. The zinc body carries an IP67 ingress protection rating, making it suitable for environments where dust intrusion and temporary water immersion are concerns. Electricians and industrial maintenance technicians install this switch as part of automated machinery, conveyor systems, and process equipment to detect the position of moving components and trigger control-circuit responses.

This limit switch fits general-purpose industrial and commercial applications where reliable position detection is required. The side-mounted rotary spring-return actuator resets automatically after contact actuation, reducing manual intervention in repetitive-cycle machinery. The screw-type terminal with PG13.5 connection type simplifies field wiring. It is rated for service across a temperature range of -10 degrees F to 185 degrees F, making it appropriate for both indoor and moderately demanding outdoor installations. NEMA ratings of 1, 2, 4, 12, and 13 confirm suitability across a broad range of enclosure and environmental conditions.

Key Features

• SPDT contact form provides both normally open and normally closed outputs in a single switching action
• Rotary spring-return actuator resets automatically after each actuation cycle
• IP67 ingress protection rating resists dust and temporary submersion
• 600V AC voltage rating supports a wide range of industrial control circuits
• Zinc body construction offers durability in demanding installation environments
• NEMA ratings 1, 2, 4, 12, and 13 cover a broad range of enclosure types

Compatibility

Designed as an OEM-style general purpose limit switch for industrial machine-control and position-sensing circuits where an SPDT rotary spring-return actuator with a PG13.5 side-entry connection is specified.

Installation Notes

Installation should be performed by a qualified electrician in accordance with applicable NEC requirements and the equipment manufacturer's wiring diagrams. De-energize the machine and lock out all power sources before mounting the switch or making wiring connections. Use the screw-type terminals with appropriately sized conductors rated for the circuit voltage and current. Verify actuator alignment and travel clearance before returning the equipment to service to ensure consistent switching performance.
