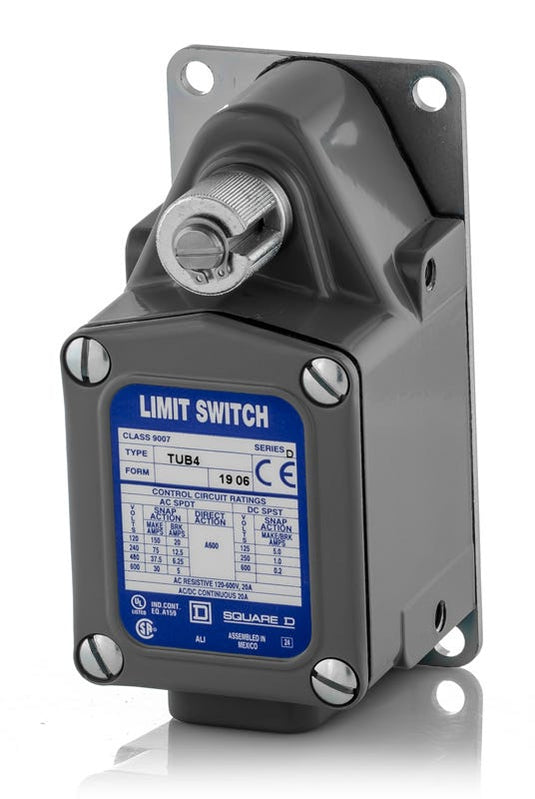

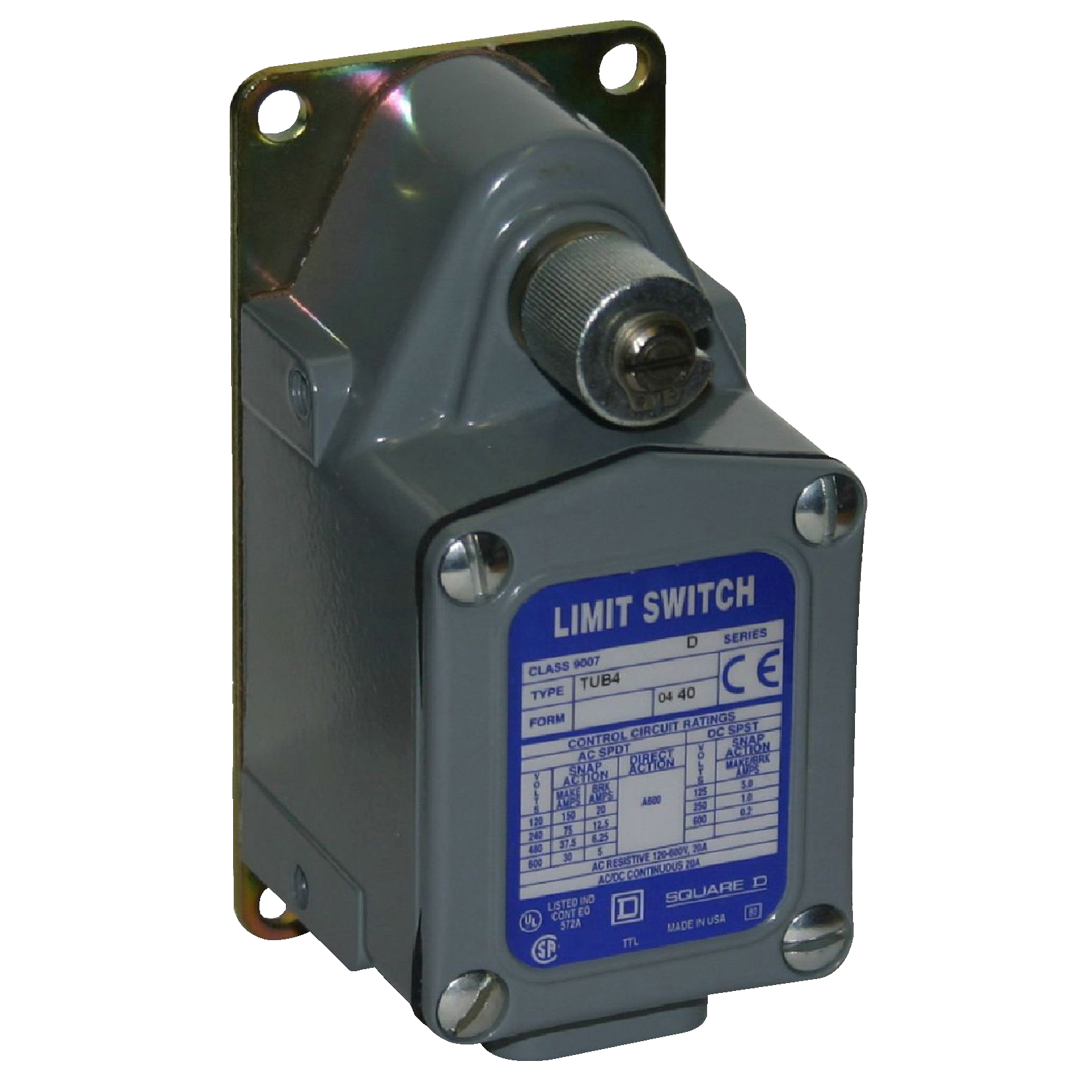

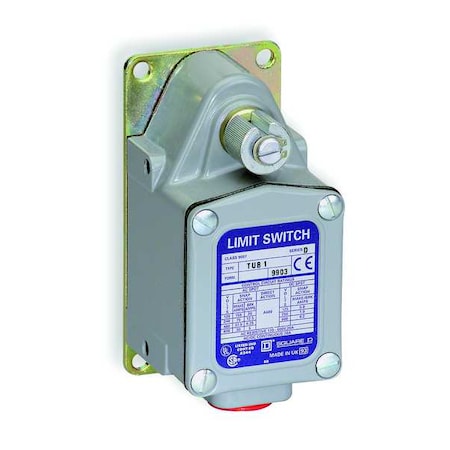

Square D 9007tub4 Limit Switch 600VAC

Product Description

The Square D 9007TUB4 is a 1 Pole limit switch with a current rating of 12 Amps and a voltage rating of 600VAC. It converts mechanical motion into an electrical control signal and features a spring return operator. Designed for severe duty mill applications, it has 1 normally closed and 1 normally open contact.

• 1 Pole limit switch
• Current rating of 12 Amps
• Voltage rating of 600VAC

Product Highlights

This limit switch is suitable for universal mill switch applications with a fixed body and rotary head.

Product Information

Standard Information

• Brand: SQUARE D
• Manufacturer Part Number: 9007TUB4
• Country of Origin: Mexico

Technical Specifications

• Type: Limit switch
• Action: CW and CCW;from left or right;Lateral approach;Snap action
• Height: 4.66 in
• Actuator: Spring return without operating lever
• Mounting: By the body
• Body Type: Fixed
• Head Type: Rotary head
• Sub Brand: 9007T/FT
• Brand Name: Square D
• Connection: Screw-clamp terminals AWG 22...AWG 12
• Application: Universal mill switch
• Series Name: Severe duty mill
• Manufacturer: SQUARE D
• Number Of Poles: 1
• Base Plate Style: Style B
• Contacts Material: Silver flashed copper
• Contact Configuration: SPDT-DB
• Tripping Angle - Metric: 6
• Short-circuit Protection: 20 A Bussmann class CC KTK-R-21 fuse non-time delay
• Movement Of Operating Head: Rotary
• Terminals Description Iso N1: B (right side contact);A (left side contact)
• Conventional Enclosed Thermal: 20 A
• Maximum Displacement Angle - M: 89
• Series: 9007
• Amperage: 12 A
• Voltage: 600VAC
• Mounting Type: Surface
• Wire Gauge: 22 to 12 AWG
• Standards: CE, CSA, UL, RoHS
• Temperature Rating: -10 to 185°F
• Duty Rating: Severe Duty
• Body Material: Cast Zinc
• Mpn: 9007TUB4
• IP Rating [Specifications]: 67
• NEMA Rating [Specifications]: 1, 12, 13, 2, 4
• Contact Form [Specifications]: SPDT
• Wiring Entry [Specifications]: 1/2 in NPT
• Actuation Type [Specifications]: CW and CCW || from left or right
• Actuator Style [Specifications]: Rotary Head, No Lever
• Contact Action [Specifications]: snap action
• Operating Force [Specifications]: 12.0 in-lb
• Shock Resistance [Specifications]: 30 gn 9 ms IEC 60068-2-27
• Special Features [Specifications]: lateral approach
• Type Of Operator [Specifications]: spring return without operating lever
• AC Contact Rating [Specifications]: 20A @ 600V
• Actuator Location [Specifications]: Side
• DC Contact Rating [Specifications]: 20A @ 600V
• Limit Switch Style [Specifications]: Severe Duty Limit Switch
• Vibration Resistance [Specifications]: 10 gn 10-55 Hz)IEC 60068-2-6
• Electrical Connection: Screw-clamp terminals AWG 22...AWG 12
• Operating Temp. Range [Specifications]: -10 Degrees to 185 Degrees F
• Basic Actuator Style - Limit Switch [Specifications]: Rotary
• Boot Sealed Actuator - Limit Switch [Specifications]: No
• Mounting Hole Pattern - Limit Switch [Specifications]: 4 Hole Rectangular
• Mounting Hole Spacing - Limit Switch [Specifications]: 4.22 in x 1.81 in
• Country of Origin (subject to change) [Specifications]: Mexico
• Amps [Specifications]: 20 A
• Depth [Specifications]: 2.44 in
• Width [Specifications]: 2.25 in
• Travel [Specifications]: Total Travel 81 Degrees
• Movement [Specifications]: CCW, CW
• Range of product: 9007
• Device application: Universal mill switch
• Device short name: 9007T/FT
• Fixing mode: By the body
• Switch actuation: CW and CCW from left or right
• Contact operation: Snap action
• Type of approach: Lateral approach
• Positive opening: Without
• Cable entry: 1 entry for 1/2" - 14 NPT conforming to ANSI B1.20.1
• Switch function: SPDT-DB
• Contact form: Form Z
• Repeat accuracy: +/- 0.004 in linear travel of cam on 1.5 in lever arm
• Contact code designation: A600, AC (Ue = 600 V) Ie = 5 A conforming to NEMA rating designation, A600, AC (Ue = 480 V) Ie = 6.25 A conforming to NEMA rating designation, A600, AC (Ue = 240 V) Ie = 12.5 A conforming to NEMA rating designation, A600, AC (Ue = 120 V) Ie = 20 A conforming to NEMA rating designation, P600, DC (Ue = 600 V) Ie = 0.2 A conforming to NEMA rating designation, P600, DC (Ue = 250 V) Ie = 1 A conforming to NEMA rating designation, P600, DC (Ue = 120 V) Ie = 5 A conforming to NEMA rating designation
• Protective treatment: Corrosion resistant gray paint
• NEMA degree of protection: NEMA 1 conforming to Nema type 250, NEMA 2 conforming to Nema type 250, NEMA 4 conforming to Nema type 250, NEMA 12 conforming to Nema type 250, NEMA 13 conforming to Nema type 250
• IP degree of protection: IP67 conforming to IEC 60529
• Electrical shock protection class: Class 0 conforming to IEC 61140
• Minimum Torque For Tripping: 12 lbf.in (1.36 N.m)
• Maximum Actuation Speed: 130 ft/min with 30° cam angle, levers only 90 ft/min with 45° cam angle, levers only
• Tripping Angle: 6 °
• Maximum Displacement Angle: 89 °
• Ithe Cnvtl Enclosed Therm Crrt: 20 A
• Ui Rated Insulation Voltage: 600 V
• Uimp Rated Imp Wstd Voltage: 2.5 kV AC for 1 minute CE 2.2 kV AC for 1 minute UL 2.64 kV AC for 1 minute CSA
• Ambient Air Temp For Op: -10…185 °F (-23…85 °C)
• Ambient Air Temp For Storage: -10…185 °F (-23…85 °C)
• Poles: 1
