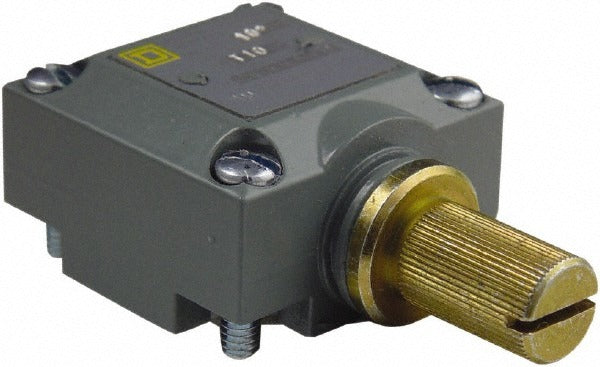

Square D 9007T10 Limit Switch Head for Use with 9007C

Product Description

The SQUARE D 9007T10 is a replacement limit switch head designed for use with 9007C series limit switch bodies. A limit switch head houses the actuating mechanism that triggers the electrical switching action when a machine component reaches a set position. This part is installed by licensed electricians and industrial maintenance technicians working on conveyor systems, machine tools, and other automated industrial equipment. At 2.9 inches in length, 1.8 inches in height, and 1.8 inches in width, it is a compact, direct-replacement component. Weighing 1.25 pounds, it is straightforward to handle and position during installation.

This limit switch head is suited for industrial and commercial applications where position sensing and mechanical actuation are required. It mounts to compatible 9007C series limit switch bodies to complete the switch assembly. Typical installation scenarios include machine guarding, conveyor end-of-travel detection, and automated door or gate position sensing. It is intended for use by qualified electrical or maintenance professionals familiar with industrial control wiring and machine safety standards.

Key Features

• Direct-replacement limit switch head for 9007C series switch bodies
• Overall length of 2.9 inches for compact fitment in tight machine enclosures
• Height and width of 1.8 inches each for a consistent mounting footprint
• Weighs 1.25 pounds for easy single-tech installation
• Sold as a single unit, allowing targeted replacement without full switch assembly replacement

Compatibility

Designed for use with SQUARE D 9007C series limit switch bodies, as specified in the product data.

Installation Notes

Installation should be performed by a qualified electrician or trained industrial maintenance technician in accordance with applicable NEC requirements and machine safety standards. De-energize and lock out the equipment per LOTO procedures before removing or installing any limit switch component. Verify that the replacement head actuator style matches the application before securing the assembly. Do not force the head onto the body if resistance is felt, as improper seating can cause misalignment of the switching mechanism.
