Square D 9007MS10S0100 Limit Switch Spdt Nc Booted Plunger

Product Description

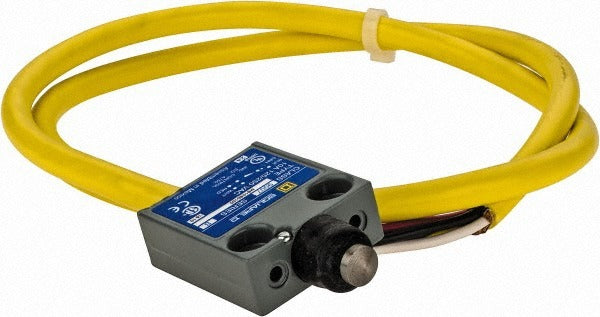

The SQUARE D 9007MS10S0100 is a general purpose limit switch designed for industrial and commercial control applications. It features a booted plunger actuator mounted at the top of the metal body, a single-pole double-throw (SPDT) contact form with a normally closed (NC) configuration, and a prewired terminal connection for straightforward installation. The switch carries an IP67 ingress protection rating, making it suitable for environments where moisture and particulate exposure are a concern. Operating temperatures range from -40 degrees F to 220 degrees F. Licensed electricians and industrial controls technicians are the primary installers of this device.

This limit switch is suited for use in automated machinery, conveyor systems, door and gate position sensing, and other industrial control circuits where mechanical position detection is required. The prewired termination style simplifies field wiring in panel and machine-mount applications. Its metal body construction and NEMA 1, 2, 4, 6, and 6P ratings make it appropriate for both indoor and select outdoor or washdown-adjacent installations in light industrial and commercial settings.

Key Features

• SPDT contact form with normally closed (NC) configuration for standard limit switch wiring schemes
• Booted plunger actuator located at the top of the body for direct mechanical actuation
• IP67 ingress protection rating resists dust intrusion and temporary submersion
• NEMA 1, 2, 4, 6, and 6P rated for versatile environmental suitability
• Operating temperature range of -40 degrees F to 220 degrees F suits demanding thermal environments
• Prewired terminal type reduces field termination time and wiring errors

Compatibility

Designed as an OEM-style replacement or direct installation limit switch for general purpose industrial control circuits requiring a top-actuated booted plunger SPDT switch in a metal-body housing.

Installation Notes

Installation should be performed by a qualified electrician in accordance with NEC requirements and applicable local codes. De-energize and lockout or tagout all circuits before mounting or wiring this switch. Verify that the actuator travel and mounting orientation align with the mechanical motion of the target application before securing the switch body. Do not exceed the rated maximum operating force of 80 ounces on the plunger actuator.
