Square D 9007MS09S0200 Limit Switch Spdt Nc Plunger

Product Description

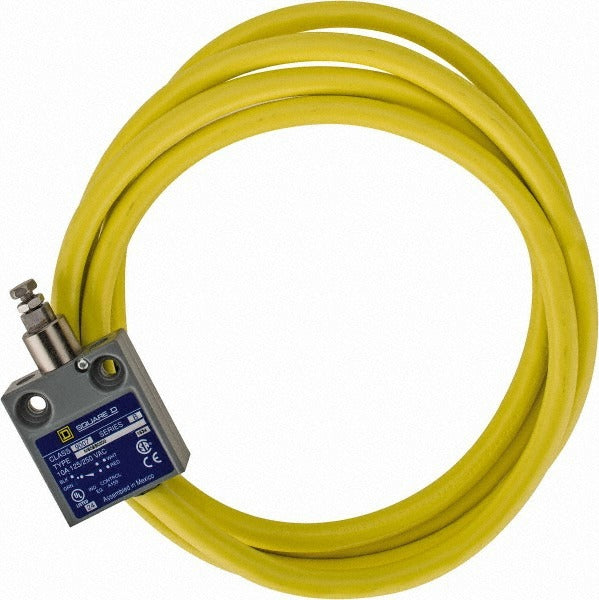

The SQUARE D 9007MS09S0200 is a general purpose limit switch rated for SPDT contact form with a normally closed (NC) configuration and a top-mounted plunger actuator. The body is constructed from zinc and comes factory prewired for straightforward installation. Rated at 240 volts AC, this switch carries an IP67 ingress protection rating, making it suitable for environments where moisture and dust exposure are a concern. Operating temperature range spans from -40 degrees F to 220 degrees F. Electricians and industrial maintenance technicians install this type of switch in control circuits where mechanical position detection is required.

This limit switch is designed for general purpose industrial and commercial applications where a plunger-style actuator detects the physical position or travel of a machine component. The top-mounted actuator orientation suits installations where contact is made from a vertical approach. The prewired terminal simplifies field connections and reduces termination time. NEMA ratings of 1, 2, 4, 6, and 6P indicate suitability across a range of environmental enclosure conditions, from general indoor use to submersion-rated installations.

Key Features

• SPDT contact form with normally closed (NC) configuration for reliable position sensing
• Top-mounted plunger actuator for vertical-approach mechanical contact
• IP67 ingress protection rating — dust-tight and protected against temporary submersion
• NEMA ratings 1, 2, 4, 6, and 6P for broad environmental compatibility
• Factory prewired terminals for faster field installation
• Wide operating temperature range: -40 degrees F to 220 degrees F
• Zinc body construction for durability in industrial settings

Compatibility

Designed as an OEM-style replacement or new-installation general purpose limit switch for industrial control circuits requiring a top-mounted plunger actuator in SPDT NC configuration.

Installation Notes

Installation should be performed by a qualified electrician in accordance with applicable NEC requirements and local codes. De-energize and lockout/tagout the circuit before mounting or wiring the switch. Verify actuator alignment with the mechanical contact surface prior to securing the switch body. Do not exceed the rated maximum operating force of 80 ounces to avoid actuator damage.
