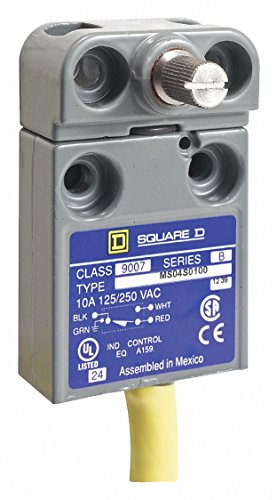

SQUARE D 9007MS04S0100 Limit Switch 10A 300V (Pack of 1)

Product Description

This Square D general purpose limit switch, model 9007MS04S0100, is engineered for efficient performance in industrial settings. Its rotary head actuator and robust zinc body construction make it ideal for demanding applications.

• SPDT contact form facilitates versatile switch operation.
• Rated for up to 10A at 300V AC and 5A at 300V DC.
• IP67 rating ensures dust and water resistance for durable use.

Product Highlights

Designed without a lever, this switch allows for side actuation, making it suitable for constrained spaces. It handles both clockwise and counterclockwise movement, with a total travel of 70 degrees.

Product Information

Standard Information

• Series: 9007MS
• Operating Temperature Range: -4 to 221 degrees Fahrenheit

Technical Specifications

• Body Material: Zinc
• Electrical Connection: 3 ft. Cable, 4 Wire
• Standards: UL, CSA, CE
• NEMA Rating: 1, 2, 4, 6, 6P, 12, 13
• Operating Force: 3.00 in.-lb.
• Vibration Resistance: 10 gn, 75-1200 Hz)
• Shock Resistance: 35 gn for 9 ms
• Actuator Location: Side
• Mounting: Surface
