Square D 9007MS01S0406 Limit Switch Spdt Nc Plunger

Product Description

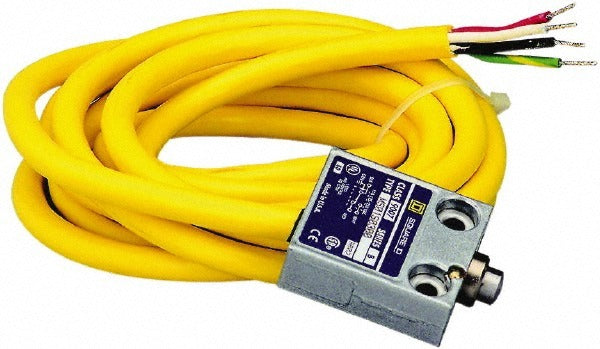

The SQUARE D 9007MS01S0406 is a general purpose limit switch designed for industrial position-sensing and machine control applications. It features a top-mounted plunger actuator, a single-pole double-throw (SPDT) contact form in a normally closed (NC) configuration, and a prewired terminal connection for fast, straightforward installation. The switch body is constructed from zinc and rated IP67 for dust-tight and water-submersion resistance. It operates on 240 volts AC and withstands a maximum operating force of 80 ounces. Licensed electricians and industrial maintenance technicians are the primary installers of this device.

This limit switch is suited for use in automated machinery, conveyor systems, door and gate position sensing, and other electromechanical control circuits where reliable end-of-travel or object-detection feedback is required. Its wide operating temperature range, from -40 degrees F to 220 degrees F, makes it appropriate for both indoor and outdoor industrial environments. The prewired terminal type reduces field wiring time during installation or replacement service calls.

Key Features

• SPDT contact form with normally closed (NC) configuration for fail-safe position detection
• Top-mounted plunger actuator for direct, linear actuation in confined machine mounting situations
• IP67 ingress protection rating — dust-tight and rated for temporary water submersion
• NEMA ratings 1, 2, 4, 6, and 6P for broad environmental enclosure compatibility
• Zinc body construction for durability in industrial service conditions
• Prewired terminals for reduced field installation time
• RoHS compliant and UL Listed with CE and CSA certifications

Compatibility

Designed as an OEM-style replacement or new-installation limit switch for general purpose industrial control and position-sensing circuits operating at 240 volts AC.

Installation Notes

Installation should be performed by a qualified electrician in accordance with the NEC and applicable local codes. De-energize and lock out the circuit before mounting or wiring the switch. Verify actuator alignment and operating force requirements against the 80-ounce maximum rated actuation force before finalizing the mounting position. Do not exceed the rated voltage or expose the switch to chemicals or environments beyond its listed ingress protection rating.
