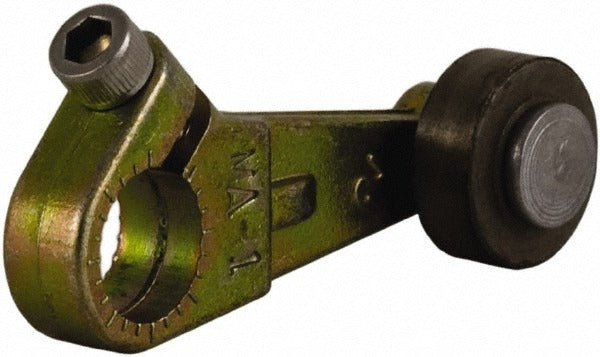

Square D 9007MA1 Limit Switch Operator Cast Zinc Steel Roller

Product Description

The SQUARE D 9007MA1 is a limit switch operator designed for use with industrial-grade limit switches in control and automation systems. The operator features a cast zinc body measuring 1.5 inches in overall length and 0.63 inches in diameter, paired with a steel roller for durable mechanical actuation. At 0.06 pounds, this compact component transfers mechanical position signals to the limit switch, triggering electrical outputs that control machine motion, conveyor positioning, or process equipment. Electricians and automation technicians install this type of operator as part of a larger limit switch assembly in industrial or commercial control panels.

The 9007MA1 operator is suited for integration into limit switch assemblies in industrial control applications where reliable mechanical actuation is required. It is intended for use with compatible SQUARE D limit switches in machine tool, conveyor, and process control installations where position sensing and travel-limit detection are critical to safe equipment operation.

Key Features

• Cast zinc body provides corrosion resistance and structural rigidity in demanding environments
• Steel roller delivers durable mechanical actuation for repetitive cycling applications
• Compact form factor at 1.5 inches long and 0.63 inches in diameter suits tight mounting spaces
• Lightweight at 0.06 pounds for easy handling during assembly
• Designed as a replacement or spare operator component for limit switch assemblies

Compatibility

Designed for use with SQUARE D limit switches. Verify the specific limit switch series and operator mounting interface before installation to confirm fitment.

Installation Notes

Installation of limit switch operators is typically performed by licensed electricians or qualified automation technicians. De-energize all associated control circuits and lock out the machine before replacing or installing this operator. Ensure the roller orientation and actuator travel align with the mechanical cam or trip mechanism as specified by the equipment manufacturer. Follow applicable NEC guidelines for industrial control wiring and enclosure requirements.
