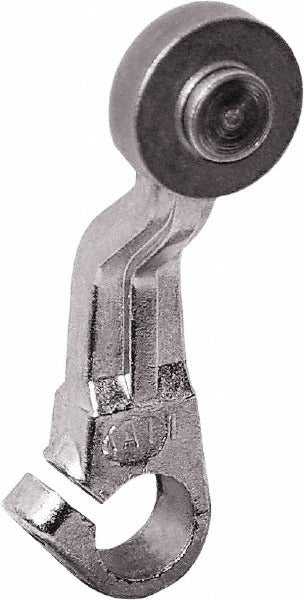

Square D 9007KA12 Limit Switch Operator Cast Zinc

Product Description

The SQUARE D 9007KA12 is a limit switch operator designed for use with industrial limit switches. This operator features a cast zinc body measuring 2 inches in overall length and 0.75 inches in diameter, with a steel roller and a 0.25-inch face width. It is used to actuate limit switches in machinery, conveyor systems, and other electromechanical control applications. Installation is typically performed by licensed electricians or qualified control system technicians. The cast zinc body provides durability in light industrial environments, and the steel roller ensures reliable actuation over repeated cycles.

This operator is suited for use in industrial and commercial control panel or machine tool applications where a compact, robust actuator is required for limit switch assemblies. It is a direct-fit operator component intended for integration with compatible SQUARE D limit switch bodies in automated or manually triggered switching scenarios. The compact 2-inch length makes it appropriate for installations with limited clearance around the switch mounting point.

Key Features

• Cast zinc body construction for corrosion resistance in light industrial environments
• Steel roller for reliable, repeatable actuation performance
• 2 inch overall length for compact installation clearance
• 0.75 inch body diameter with 0.25 inch roller face width
• Designed for use with limit switches in electromechanical control applications

Compatibility

Designed for use with SQUARE D limit switches per manufacturer specification. Consult the SQUARE D 9007 series documentation to confirm fitment with a specific limit switch body before installation.

Installation Notes

Installation should be performed by a licensed electrician or qualified industrial controls technician. De-energize all circuits and lock out the equipment per OSHA lockout/tagout procedures before servicing or replacing limit switch operators. Verify the operator actuates the limit switch plunger correctly through the full range of mechanical travel before returning equipment to service. Refer to applicable NEC and machine safety standards for wiring and mounting requirements.
