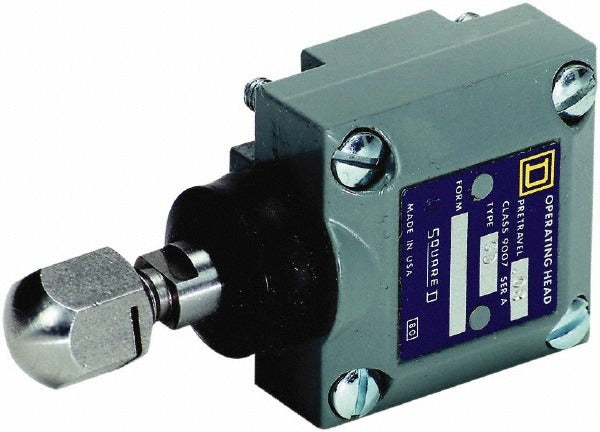

Square D 9007GD Limit Switch Head for Use with 9007C

Product Description

The SQUARE D 9007GD is a limit switch head designed as a direct accessory for the 9007C series limit switch body. Limit switch heads translate mechanical motion or physical contact into an electrical signal, triggering control circuits to start, stop, or redirect machine or process operations. At 7.6 inches in overall length, the 9007GD is suited for applications where reach or mounting geometry requires a specific head length. Installation is typically performed by licensed electricians or qualified industrial maintenance technicians familiar with machine control and position-sensing systems.

The 9007GD is intended for use in industrial control and automation environments where limit switches govern the position or travel of moving machinery, conveyors, doors, or actuated components. It pairs with the 9007C limit switch body and is appropriate for both new installations and field replacements where the existing switch head has worn or been damaged. Residential, light commercial, and heavy industrial machine tool applications are all common deployment scenarios for this product type.

Key Features

• 7.6-inch overall length provides extended reach for offset or recessed mounting positions
• Designed specifically for use with the 9007C limit switch body series
• Compact profile at 5.3 inches height and 7 inches width supports installation in confined control enclosures or machine frames
• Lightweight construction at 0.36 pounds reduces mechanical load on switch mounting hardware
• Single-unit packaging supports one-for-one field replacement without surplus stock

Compatibility

The SQUARE D 9007GD limit switch head is designed for use with the 9007C limit switch body series as stated by the manufacturer.

Installation Notes

Installation of limit switch heads should be performed by a licensed electrician or qualified industrial maintenance technician in accordance with NEC Article 430 for motor circuit applications and applicable machine safety standards. De-energize and lock out the control circuit and any associated machinery before removing or installing the switch head. Verify mechanical alignment of the actuator with the target or cam prior to restoring power. Do not exceed the mechanical operating force or travel range specified for the 9007C switch body.
