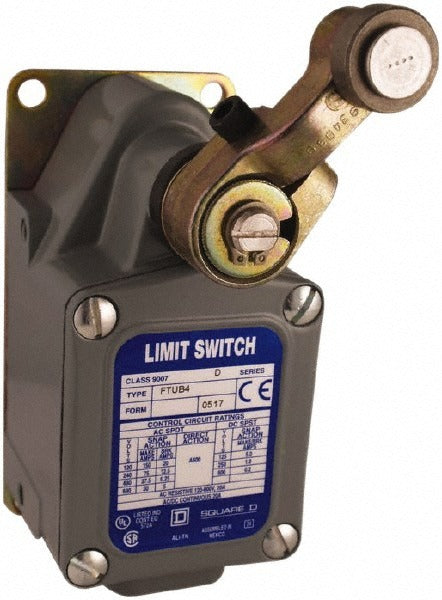

Square D 9007FTUB4 Limit Switch Spdt Rotary Spring Return

Product Description

The SQUARE D 9007FTUB4 is a general purpose limit switch designed for industrial position-sensing and control applications. It features a single-pole double-throw (SPDT) contact form with a rotary spring return actuator mounted on the side of the zinc die-cast body. Rated for 600 volts AC, this switch is built for demanding environments, carrying an IP67 ingress protection rating and NEMA ratings 1, 2, 4, 12, and 13. The screw terminal connection and 1/2 inch NPT conduit entry make wiring straightforward for qualified electricians and industrial maintenance technicians.

This limit switch is suited for use on industrial machinery, conveyor systems, automated equipment, and process control panels where reliable position or end-of-travel detection is required. The rotary spring return actuator provides consistent reset behavior after each actuation cycle. The wide operating temperature range of -10 degrees F to 185 degrees F makes it appropriate for both indoor and controlled outdoor installations. It is typically installed by licensed electricians or qualified industrial maintenance personnel following applicable NEC guidelines.

Key Features

• SPDT contact form supports both normally open and normally closed circuit configurations
• Rotary spring return actuator with 6-degree travel for precise position sensing
• IP67 ingress protection rating guards against dust and temporary water immersion
• NEMA ratings 1, 2, 4, 12, and 13 for broad environmental suitability
• Zinc die-cast body provides durable, corrosion-resistant construction
• 1/2 inch NPT conduit connection with screw terminals for standard industrial wiring
• RoHS compliant and tested to IEC 60068-2-27, IEC 60068-2-6, IEC 60529, IEC 61140

Compatibility

Designed as an OEM-style replacement or direct-install limit switch for industrial control systems requiring a side-mount rotary spring return SPDT actuator with 1/2 inch NPT conduit entry.

Installation Notes

Installation should be performed by a licensed electrician or qualified industrial maintenance technician in accordance with applicable NEC requirements. De-energize and lock out the circuit before mounting or wiring the switch. Ensure conduit fittings are properly sealed to maintain the IP67 ingress protection rating. Do not exceed the rated voltage of 600 volts AC.
