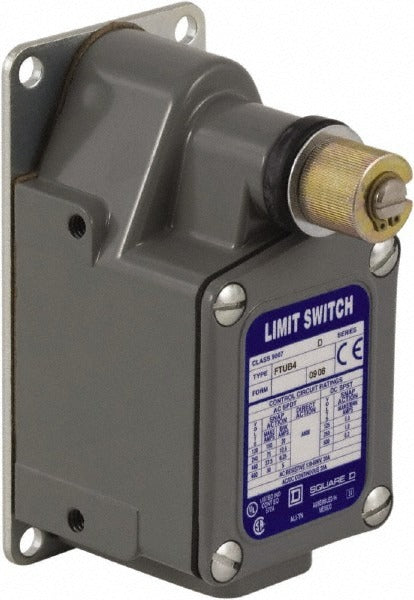

Square D 9007FTSB1 Limit Switch Spdt Rotary Spring Return 600V

Product Description

The SQUARE D 9007FTSB1 is a general purpose limit switch built for industrial and commercial control applications where precise position detection is required. It uses a rotary spring-return actuator mounted on the side of the zinc body, with screw-terminal connections and a 1/2 inch NPT conduit entry. The contact configuration is SPDT, rated for up to 600 volts AC. Rated IP67 for dust-tight and water-immersion protection, this switch handles demanding environments. It covers an operating temperature range of -10 degrees F to 185 degrees F and carries a 14-degree travel range. Licensed electricians and industrial control technicians are the typical installers.

The 9007FTSB1 is suited for machine tool, conveyor, and process control applications where a mechanical actuator must signal a position change to a control circuit. The side-mounted rotary spring-return actuator allows the switch to reset automatically after the actuating cam or dog passes. It fits installations requiring NEMA ratings 1, 2, 4, 12, and 13, covering both indoor dry and splashproof environments. The screw terminals accommodate standard control wiring, and the 1/2 inch NPT entry accepts common conduit fittings used in panel and machine wiring.

Key Features

• SPDT contact form supports both normally open and normally closed circuit branches in a single device
• Rotary spring-return actuator resets automatically after actuation, reducing mechanical wear
• Side actuator location allows mounting in tight or inline cam-track installations
• IP67 ingress protection rating resists dust intrusion and temporary water immersion
• NEMA 1, 2, 4, 12, and 13 ratings cover a wide range of indoor and protected outdoor enclosures
• RoHS compliant and tested to IEC 60068-2-27 and IEC 60068-2-6 shock and vibration standards

Compatibility

Designed as an OEM-style replacement or direct-fit limit switch for general purpose industrial control systems requiring a side-mount rotary spring-return SPDT actuator with 1/2 inch NPT conduit entry.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and any applicable local codes. De-energize all circuits and lock out the control panel before wiring or mounting the switch. Ensure conduit fittings are properly sealed at the 1/2 inch NPT entry to maintain the IP67 rating. Do not exceed the rated voltage or operate outside the specified temperature range.
