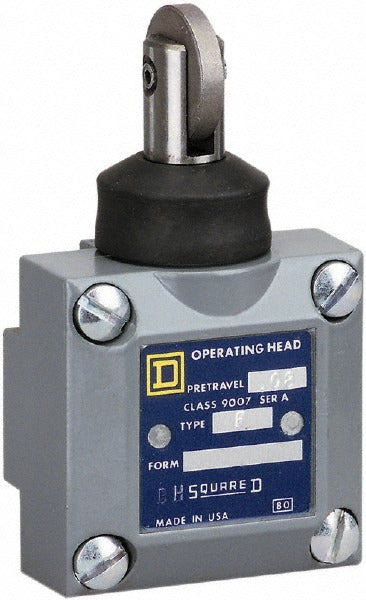

Square D 9007F Limit Switch Head 11.5 in for 9007C

Product Description

The SQUARE D 9007F is a limit switch head designed as a replacement accessory for compatible limit switch bodies in industrial and commercial control applications. Measuring 11.5 inches in length, 7.4 inches in height, and 6.8 inches in width, this switch head attaches to the host switch body to complete the mechanical actuation assembly. At 0.36 pounds, it is a lightweight component suited for panel builders, machine maintenance technicians, and automation electricians performing field replacements or new installations on control equipment.

The 9007F limit switch head is used in industrial machinery, conveyor systems, and automated equipment where position sensing and mechanical limit control are required. It is specified for use with the SQUARE D 9007C limit switch body series. Typical install scenarios include machine guarding, door interlock systems, and process control equipment in light manufacturing and material handling environments.

Key Features

• 11.5-inch overall length accommodates standard actuator arm reach requirements
• Designed as a direct replacement switch head accessory for the 9007C series
• Compact form factor at 7.4 inches height and 6.8 inches width
• Lightweight construction at 0.36 pounds for easy field handling
• Single-unit packaging suitable for individual maintenance replacement jobs

Compatibility

Designed for use with the SQUARE D 9007C limit switch body series as a replacement or spare switch head component.

Installation Notes

Installation should be performed by a qualified electrician or industrial maintenance technician. De-energize all associated control circuits and lock out the equipment per LOTO procedures before removing or installing limit switch components. Verify mechanical alignment of the actuator head with the target cam or actuating surface before securing the assembly. Refer to the equipment wiring diagram and applicable NEC requirements for control circuit wiring practices.
