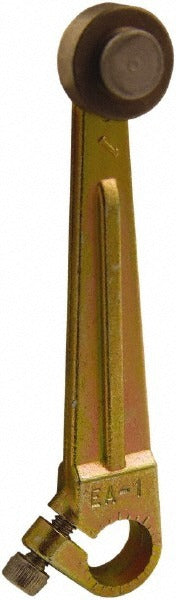

Square D 9007EA2 Limit Switch Roller Lever 7.6 Inches

Product Description

The SQUARE D 9007EA2 is a steel roller lever accessory designed for use with SQUARE D 9007-series limit switches. At 7.6 inches in overall length, this lever attaches to compatible limit switch bodies to extend the mechanical actuation arm, allowing the switch to detect object position, travel limits, or door and gate positions in industrial and commercial control applications. The steel roller construction provides durable, low-friction contact with cams, actuating surfaces, and moving machine members. Electricians and industrial maintenance technicians install this part as a replacement or alternate-arm configuration on existing switch assemblies.

This roller lever is suited for machine tool, conveyor, material handling, and panel equipment applications where precise limit detection is required. It fits directly onto SQUARE D 9007A, 9007AW, 9007B, 9007C, 9007N, 9007T10, and 9007T5 limit switch bodies. It is commonly used in both new installations and field replacements where the original lever has worn, bent, or requires a longer reach to meet the actuation geometry of the application.

Key Features

• 7.6-inch overall length provides extended actuation reach
• Steel roller construction for durable, low-friction cam contact
• Direct replacement lever for SQUARE D 9007-series limit switches
• Sold as a single unit, compatible with multiple 9007-series switch bodies
• Lightweight at 0.1 pounds for minimal added load on the switch actuator arm

Compatibility

Designed for use with SQUARE D limit switch bodies: 9007A, 9007AW, 9007B, 9007C, 9007N, 9007T10, and 9007T5.

Installation Notes

Installation is performed by licensed electricians or qualified industrial maintenance technicians. De-energize and lock out the control circuit and any associated machinery before removing or installing limit switch components, following NFPA 70E and applicable OSHA lockout/tagout procedures. Verify the replacement lever is fully seated and secured to the switch body before restoring power. Confirm actuator geometry and cam alignment after installation to ensure reliable switch operation.
